1co4
SOLUTION STRUCTURE OF A ZINC DOMAIN CONSERVED IN YEAST COPPER-REGULATED TRANSCRIPTION FACTORS

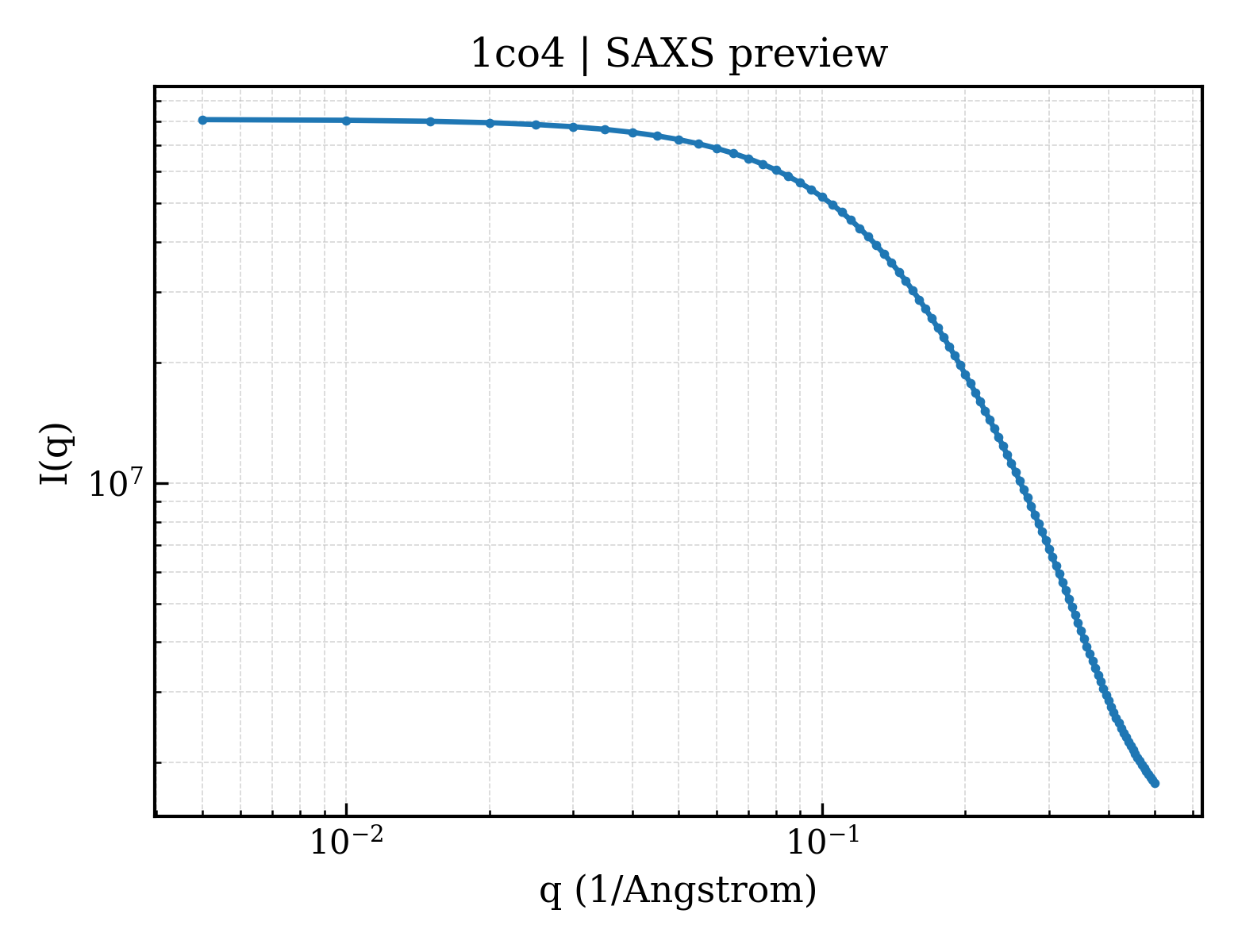

SAXS Profile

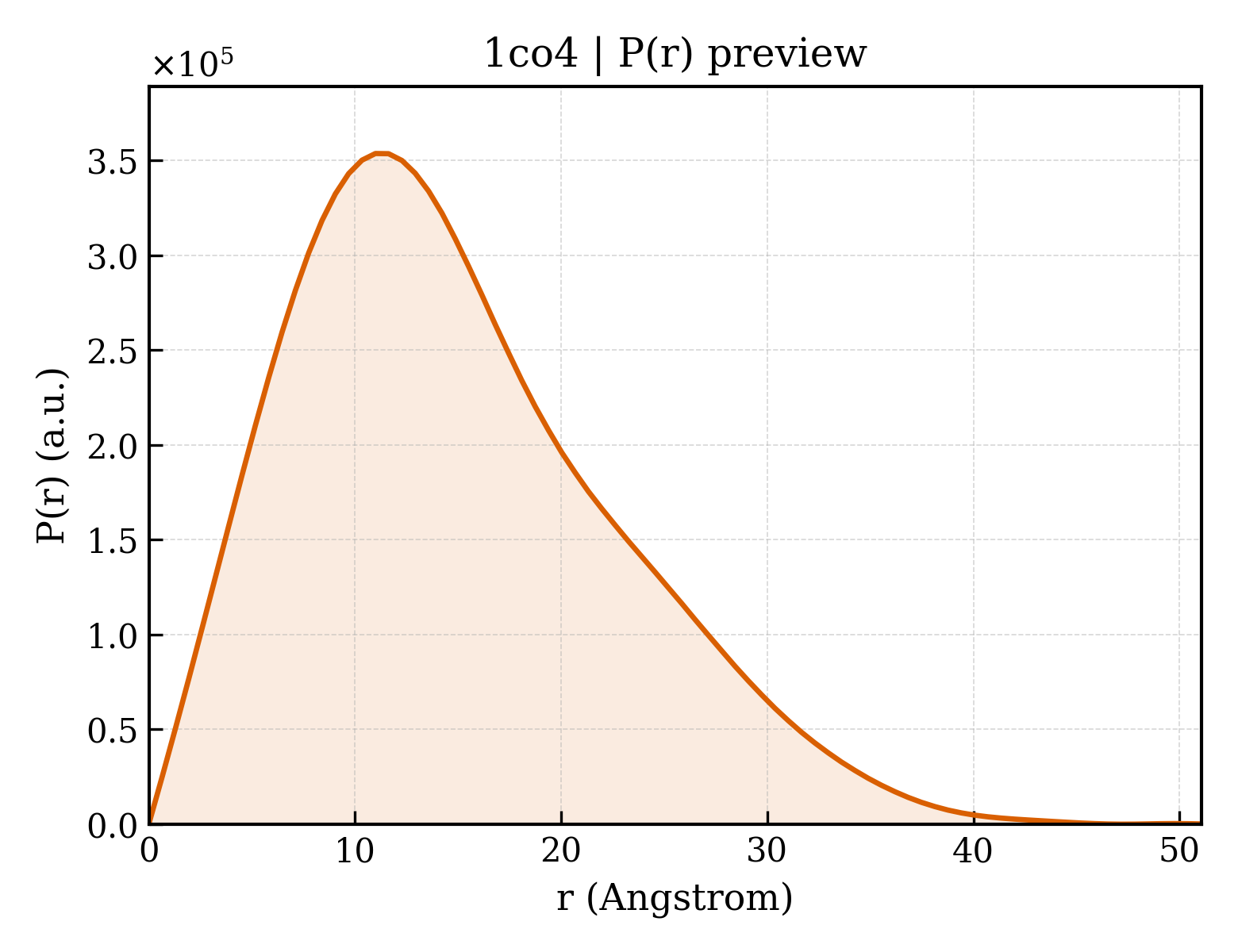

P(r) Distribution
1. Structure Basics
| entry_id | 1co4 |
| deposition_date | 1999-06-04 |
| title | SOLUTION STRUCTURE OF A ZINC DOMAIN CONSERVED IN YEAST COPPER-REGULATED TRANSCRIPTION FACTORS |
| keywords | METALLOTHIONEIN, AMT, METAL REGULATION, TRANSLATION-REGULATION PROTEIN COMPLEX; TRANSLATION/REGULATION PROTEIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 11.65 Å |
| rg_electron | 11.52 Å |
| i0 | 81001300.00 |
| molecular_weight | 70949.0 kDa |
| excluded_volume | 87617 ų |
| envelope_volume | 19906 ų |
| shell_volume | 11442 ų |
| envelope_diameter | 50.2 Å |
| shell_rg | 20.59 Å |
| envelope_rg | 16.37 Å |
| shape_rg | 11.56 Å |
| total_rg | 11.81 Å |
| total_atoms | 8850 |
| n_residues | 630 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 51.0 Å |
| rg_real | 11.86 Å |
| rg_real_error | 0.66 Å |
| i0_real | 8.1000e+07 |
| i0_real_error | 1.0990e+06 |
| rg_reciprocal | 11.85 Å |
| i0_reciprocal | 81000000.0000 |
| total_estimate | 0.6906 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 11.0 Å |
| skewness | 0.635 |
| kurtosis | -0.003 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 29800.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.313; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.036; Smooth: 0.999 |
