1cob

;CRYSTAL STRUCTURE SOLUTION AND REFINEMENT OF THE SEMISYNTHETIC COBALT SUBSTITUTED BOVINE ERYTHROCYTE ENZYME SUPEROXIDE DISMUTASE AT 2.0 ANGSTROMS RESOLUTION ;

Method: X-RAY DIFFRACTION Dmax: 70.1 Å Quality: GOOD

SAXS Profile

SAXS profile for 1cob

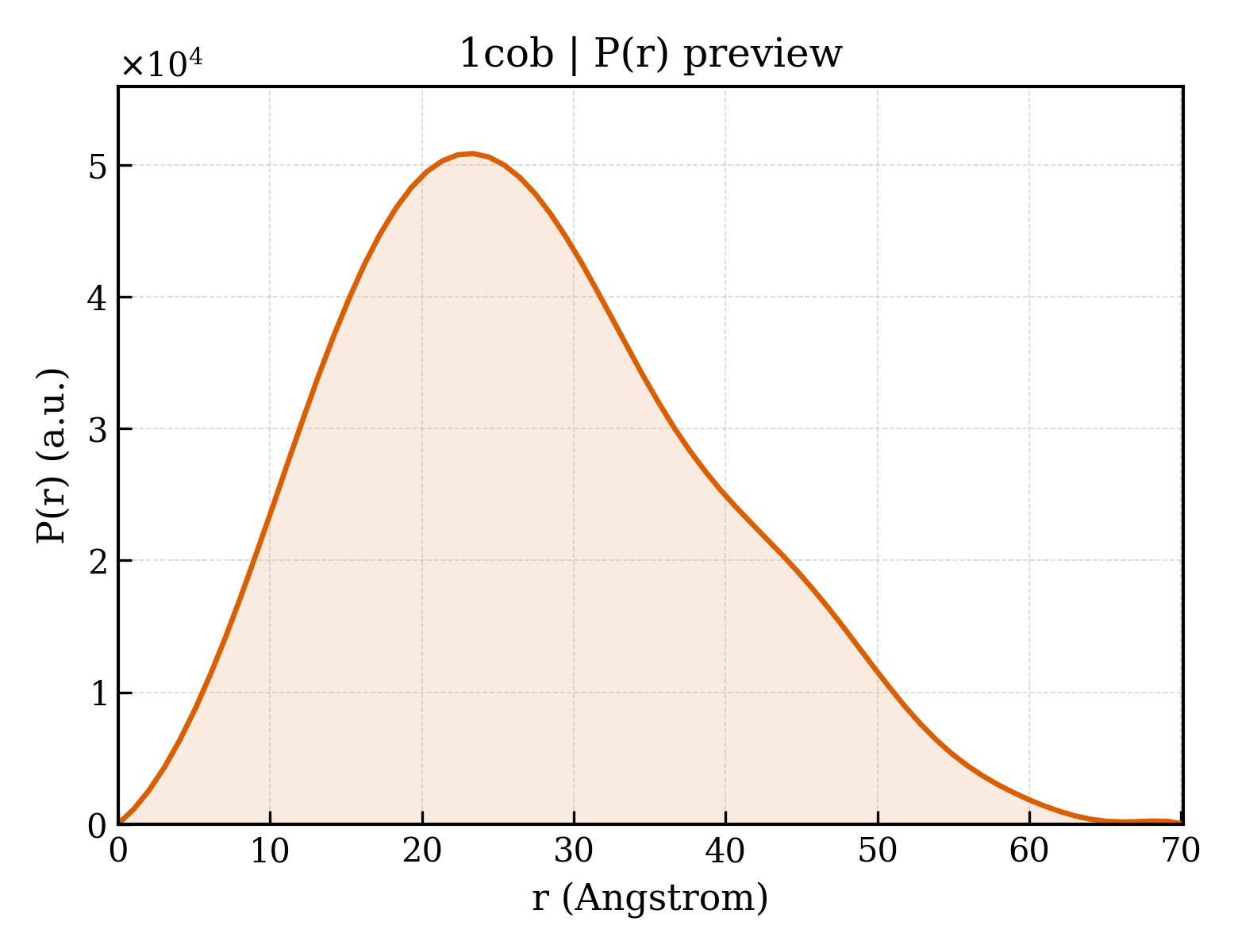

P(r) Distribution

P(r) distribution for 1cob
▼

1. Structure Basics

entry_id1cob
deposition_date1992-02-19
title;CRYSTAL STRUCTURE SOLUTION AND REFINEMENT OF THE SEMISYNTHETIC COBALT SUBSTITUTED BOVINE ERYTHROCYTE ENZYME SUPEROXIDE DISMUTASE AT 2.0 ANGSTROMS RESOLUTION ;
keywordsOXIDOREDUCTASE; OXIDOREDUCTASE
methodX-RAY DIFFRACTION
▼

Download Data

▼

2. SAXS Parameters (CRYSOL)

rg_guinier20.93 Å
rg_electron20.01 Å
i019520000.00
molecular_weight31338.0 kDa
excluded_volume38359 ų
envelope_volume45494 ų
shell_volume19480 ų
envelope_diameter71.8 Å
shell_rg25.94 Å
envelope_rg20.30 Å
shape_rg20.03 Å
total_rg20.76 Å
total_atoms2188
n_residues302
n_harmonics20
q_range— – 0.5000 Å−1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3
▼

3. P(r) Analysis (GNOM)

dmax70.1 Å
rg_real20.97 Å
rg_real_error0.39 Å
i0_real1.9520e+07
i0_real_error2.1550e+05
rg_reciprocal20.96 Å
i0_reciprocal19520000.0000
total_estimate0.8822
solution_quality GOOD a GOOD solution
n_peaks2
r_peak_primary23.4 Å
skewness0.390
kurtosis-0.356
angular_range— – 0.3800 Å−1
current_alpha0.0001
highest_alpha2820000.0000
n_real_points70
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.835; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.961; Smooth: 0.998
▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

▶

6. Citations (6)

▶

7. Files & Curves (10)
