1coy
CRYSTAL STRUCTURE OF CHOLESTEROL OXIDASE COMPLEXED WITH A STEROID SUBSTRATE. IMPLICATIONS FOR FAD DEPENDENT ALCOHOL OXIDASES

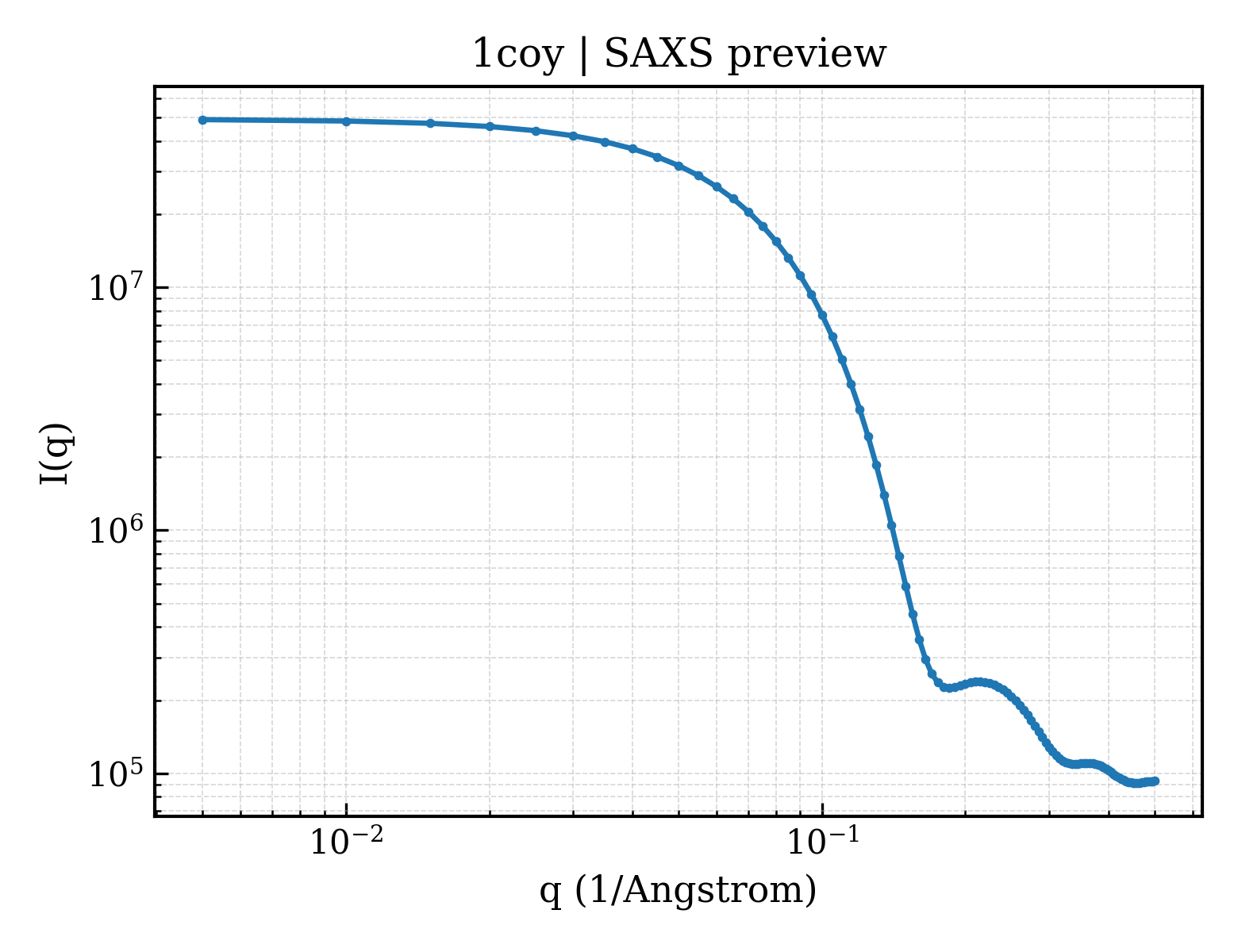

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1coy |
| deposition_date | 1993-06-14 |
| title | CRYSTAL STRUCTURE OF CHOLESTEROL OXIDASE COMPLEXED WITH A STEROID SUBSTRATE. IMPLICATIONS FOR FAD DEPENDENT ALCOHOL OXIDASES |
| keywords | OXIDOREDUCTASE(OXYGEN RECEPTOR); OXIDOREDUCTASE(OXYGEN RECEPTOR) |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 22.92 Å |
| rg_electron | 21.83 Å |
| i0 | 49197000.00 |
| molecular_weight | 54545.0 kDa |
| excluded_volume | 68138 ų |
| envelope_volume | 75910 ų |
| shell_volume | 28053 ų |
| envelope_diameter | 77.1 Å |
| shell_rg | 29.58 Å |
| envelope_rg | 22.05 Å |
| shape_rg | 21.82 Å |
| total_rg | 22.71 Å |
| total_atoms | 3845 |
| n_residues | 501 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 82.6 Å |
| rg_real | 22.80 Å |
| rg_real_error | 0.51 Å |
| i0_real | 4.9200e+07 |
| i0_real_error | 6.3060e+05 |
| rg_reciprocal | 22.83 Å |
| i0_reciprocal | 49200000.0000 |
| total_estimate | 0.7620 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 29.2 Å |
| skewness | 0.232 |
| kurtosis | -0.317 |
| angular_range | — – 0.3450 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 14360000.0000 |
| n_real_points | 66 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.636; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.993; Smooth: 0.000 |
