1cpd
A CATION BINDING MOTIF STABILIZES THE COMPOUND I RADICAL OF CYTOCHROME C PEROXIDASE

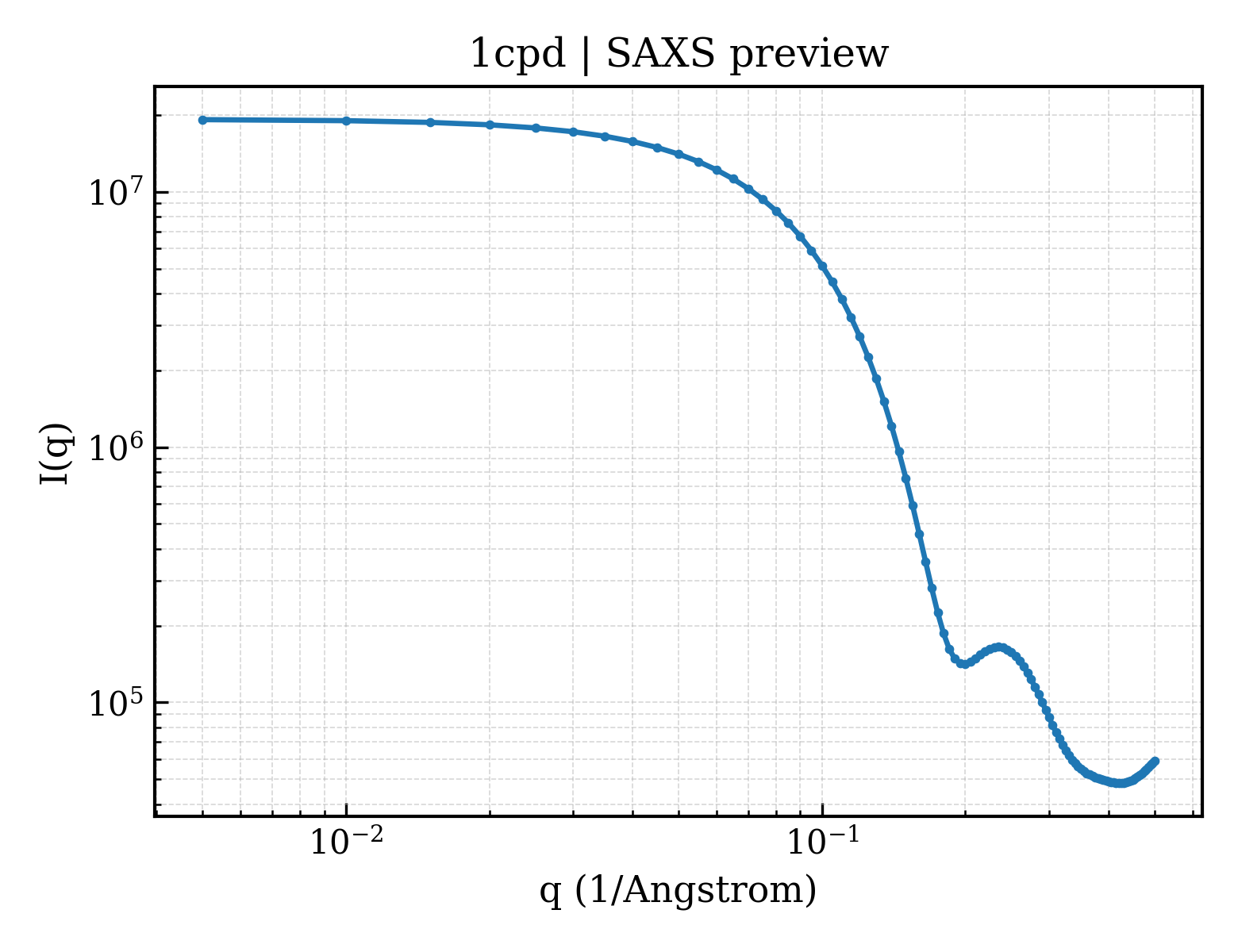

SAXS Profile

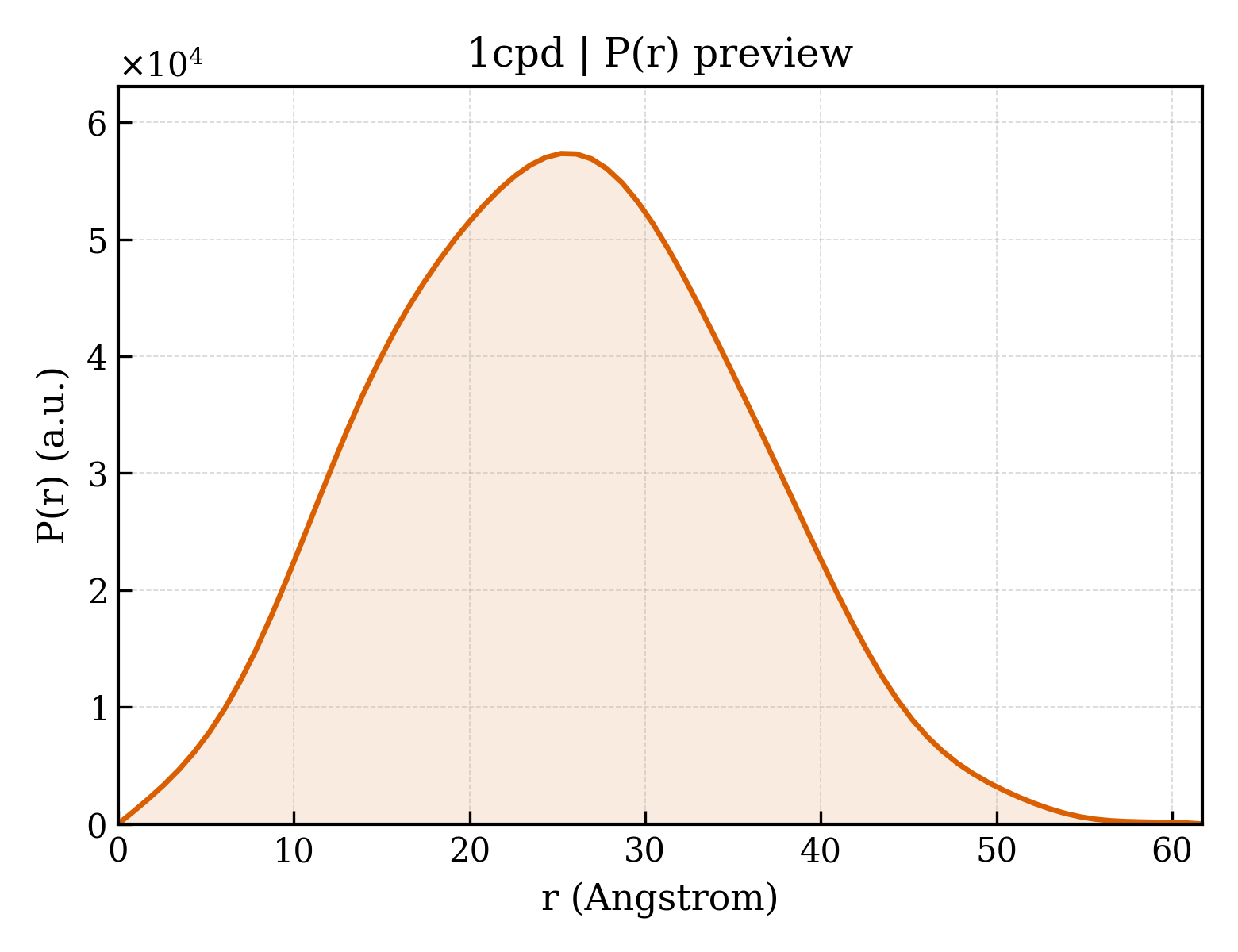

P(r) Distribution
1. Structure Basics
| entry_id | 1cpd |
| deposition_date | 1994-08-18 |
| title | A CATION BINDING MOTIF STABILIZES THE COMPOUND I RADICAL OF CYTOCHROME C PEROXIDASE |
| keywords | OXIDOREDUCTASE(H2O2(A)); OXIDOREDUCTASE(H2O2(A)) |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 19.42 Å |
| rg_electron | 18.33 Å |
| i0 | 19214000.00 |
| molecular_weight | 33346.0 kDa |
| excluded_volume | 41575 ų |
| envelope_volume | 45998 ų |
| shell_volume | 20551 ų |
| envelope_diameter | 62.6 Å |
| shell_rg | 25.06 Å |
| envelope_rg | 18.58 Å |
| shape_rg | 18.31 Å |
| total_rg | 19.28 Å |
| total_atoms | 2362 |
| n_residues | 291 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 61.7 Å |
| rg_real | 19.28 Å |
| rg_real_error | 0.28 Å |
| i0_real | 1.9210e+07 |
| i0_real_error | 2.1940e+05 |
| rg_reciprocal | 19.30 Å |
| i0_reciprocal | 19210000.0000 |
| total_estimate | 0.8909 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 25.2 Å |
| skewness | 0.137 |
| kurtosis | -0.396 |
| angular_range | — – 0.4100 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 5613000.0000 |
| n_real_points | 72 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.862; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.995 |
