1cpe
A CATION BINDING MOTIF STABILIZES THE COMPOUND I RADICAL OF CYTOCHROME C PEROXIDASE

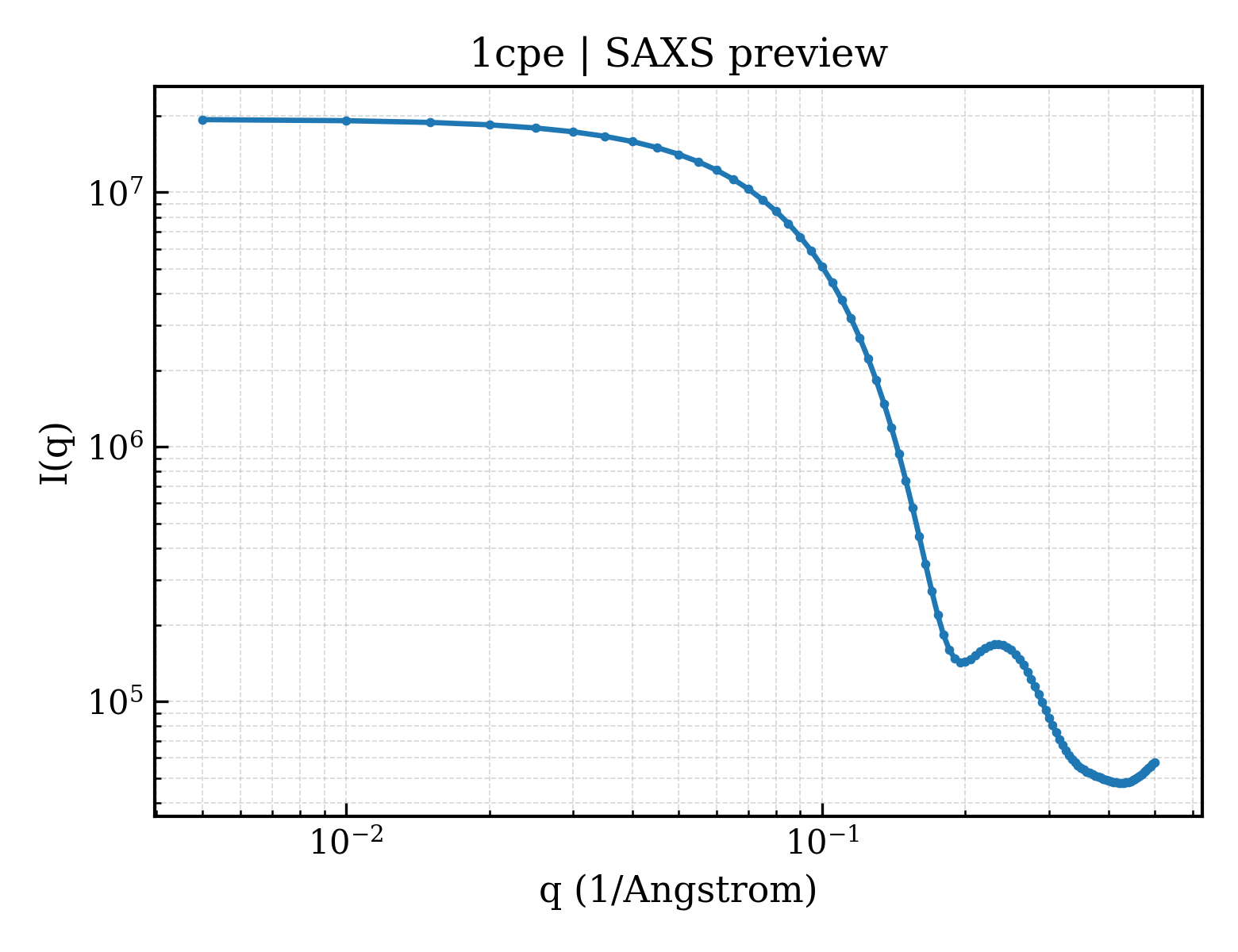

SAXS Profile

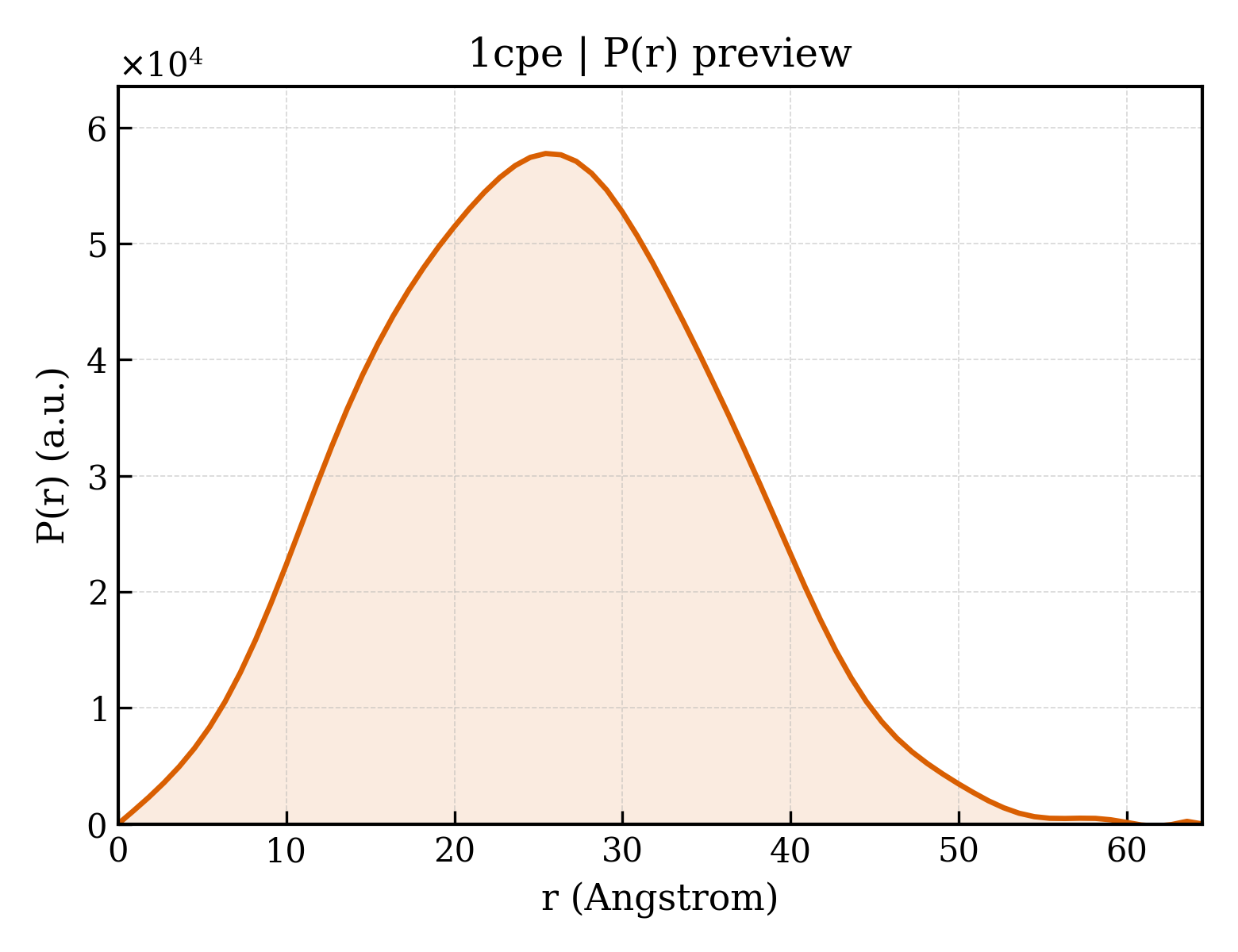

P(r) Distribution
1. Structure Basics
| entry_id | 1cpe |
| deposition_date | 1994-08-18 |
| title | A CATION BINDING MOTIF STABILIZES THE COMPOUND I RADICAL OF CYTOCHROME C PEROXIDASE |
| keywords | OXIDOREDUCTASE(H2O2(A)); OXIDOREDUCTASE(H2O2(A)) |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 19.50 Å |
| rg_electron | 18.39 Å |
| i0 | 19371800.00 |
| molecular_weight | 33702.0 kDa |
| excluded_volume | 42113 ų |
| envelope_volume | 46467 ų |
| shell_volume | 20664 ų |
| envelope_diameter | 64.0 Å |
| shell_rg | 25.22 Å |
| envelope_rg | 18.69 Å |
| shape_rg | 18.37 Å |
| total_rg | 19.38 Å |
| total_atoms | 2384 |
| n_residues | 291 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 64.5 Å |
| rg_real | 19.36 Å |
| rg_real_error | 0.44 Å |
| i0_real | 1.9370e+07 |
| i0_real_error | 2.6170e+05 |
| rg_reciprocal | 19.38 Å |
| i0_reciprocal | 19370000.0000 |
| total_estimate | 0.7990 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 25.4 Å |
| skewness | 0.141 |
| kurtosis | -0.381 |
| angular_range | — – 0.4100 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 5972000.0000 |
| n_real_points | 72 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.794; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.000 |
