1cpt
CRYSTAL STRUCTURE AND REFINEMENT OF CYTOCHROME P450-TERP AT 2.3 ANGSTROMS RESOLUTION
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1cpt |
| deposition_date | 1993-11-23 |
| title | CRYSTAL STRUCTURE AND REFINEMENT OF CYTOCHROME P450-TERP AT 2.3 ANGSTROMS RESOLUTION |
| keywords | OXIDOREDUCTASE(OXYGENASE); OXIDOREDUCTASE(OXYGENASE) |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 22.53 Å |
| rg_electron | 21.31 Å |
| i0 | 36574500.00 |
| molecular_weight | 46765.0 kDa |
| excluded_volume | 58455 ų |
| envelope_volume | 67226 ų |
| shell_volume | 25773 ų |
| envelope_diameter | 70.1 Å |
| shell_rg | 28.57 Å |
| envelope_rg | 21.45 Å |
| shape_rg | 21.29 Å |
| total_rg | 22.20 Å |
| total_atoms | 3292 |
| n_residues | 412 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

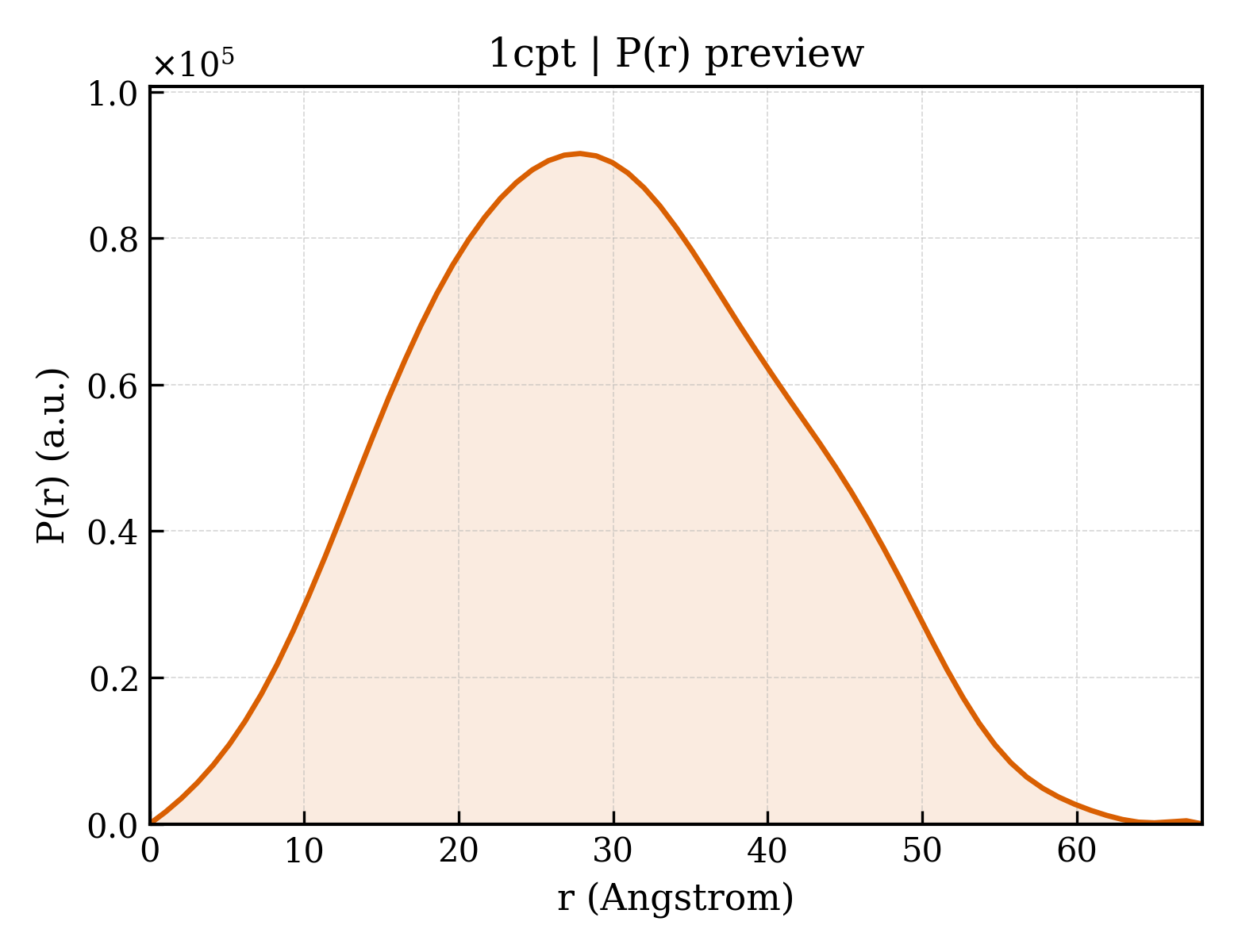

3. P(r) Analysis (GNOM)
| dmax | 68.1 Å |
| rg_real | 22.40 Å |
| rg_real_error | 0.28 Å |
| i0_real | 3.6570e+07 |
| i0_real_error | 4.7010e+05 |
| rg_reciprocal | 22.44 Å |
| i0_reciprocal | 36580000.0000 |
| total_estimate | 0.9079 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 27.9 Å |
| skewness | 0.139 |
| kurtosis | -0.543 |
| angular_range | — – 0.3550 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 7717000.0000 |
| n_real_points | 67 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.946; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.988; Smooth: 0.971 |
