SAXSdb — 1cqk

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CH3 DOMAIN OF MAK33 ANTIBODY

Mus musculus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 353–453 Chain B； UniProt 353–453	Fragment：CH3 DOMAIN OF MAK33 ANTIBODY Mutation：K5A, K16L, K23L	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8.5；291 K；Tris, ammonium sulfate, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 18K	Resolution 2.20 Å R-free 0.249

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1CQK	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1I9I NATIVE CRYSTAL STRUCTURE OF THE RECOMBINANT MONOCLONAL WILD TYPE ANTI-TESTOSTERONE FAB FRAGMENT Deposited 2001-03-20	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 1–215（215 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；298 K；peg3350, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.72 Å R-free 0.252
1I9J TESTOSTERONE COMPLEX STRUCTURE OF THE RECOMBINANT MONOCLONAL WILD TYPE ANTI-TESTOSTERONE FAB FRAGMENT Deposited 2001-03-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 1–215（215 aa）	Not recorded	TES TESTOSTERONE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；peg3350, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.60 Å R-free 0.255
1KCU CRYSTAL STRUCTURE OF ANTIBODY PC287 Deposited 2001-11-11	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 1–214（214 aa） Fragment：heavy chain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；300 K；15% PEG 8K, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 300K	Resolution 2.20 Å R-free 0.249

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	Q9R1A4_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–101； UniProt 353–453 Author chain B； PDBConstruct 1–101； UniProt 353–453

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1cqk
Deposition date deposition_date	1999-08-06
Structure title title	CRYSTAL STRUCTURE OF THE CH3 DOMAIN FROM THE MAK33 ANTIBODY
Keywords keywords	CONSTANT DOMAIN, C1-SUBSET, IMMUNOGLOBULIN, Immune system; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	18.17 Å
Radius of gyration Rg (electron density) rg_electron	16.76 Å
Forward intensity I(0) i0	10027100.00
Molecular weight molecular_weight	23008.0 kDa
Excluded volume excluded_volume	28534 Å³
Envelope volume envelope_volume	33061 Å³
Hydration-shell volume shell_volume	16511 Å³
Envelope diameter envelope_diameter	58.8 Å
Shell Rg shell_rg	22.73 Å
Envelope Rg envelope_rg	17.02 Å
Shape Rg shape_rg	16.79 Å
Total Rg total_rg	17.64 Å
Total atoms total_atoms	1622
Residues n_residues	202
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	57.8 Å
Rg (real space) rg_real	18.04 Å
Rg uncertainty (real space) rg_real_error	0.33 Å
I(0) (real space) i0_real	1.0030e+07
I(0) uncertainty (real space) i0_real_error	1.0590e+05
Rg (reciprocal space) rg_reciprocal	18.05 Å
I(0) (reciprocal space) i0_reciprocal	10030000.0000
Solution quality estimate total_estimate	0.8147
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	23.4 Å
Skewness Skewness skewness	0.097
Kurtosis Kurtosis kurtosis	-0.500
Angular range angular_range	— – 0.4400 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	2742000.0000
Real-space data points n_real_points	75
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.866; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.994; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▼

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1cqka_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d1cqkb_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

CATH v4.4 (2 domains)

Domain ID domain_id	1cqkA00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1cqkB00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

8. Citations (1)

▶

Unit-cell length a length_a	48.700 Å
Unit-cell length b length_b	42.800 Å
Unit-cell length c length_c	50.400 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	105.93 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.200 Å
Low-resolution limit resolution_low	8.000 Å
R factor r_factor	—
R_work r_work	0.1963
R_free r_free	0.2486

Description description	CH3 DOMAIN OF MAK33 ANTIBODY
Molecular weight formula_weight	11520.8 kDa
Mutation mutation	K5A, K16L, K23L
Source method src_method	man
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	1699

CRYSTAL STRUCTURE OF THE CH3 DOMAIN FROM THE MAK33 ANTIBODY

1. Protein Identity and Related Structures Protein Identity & Related Structures

CH3 DOMAIN OF MAK33 ANTIBODY

State in the Current Structure

Other States of the Same Protein in the Database

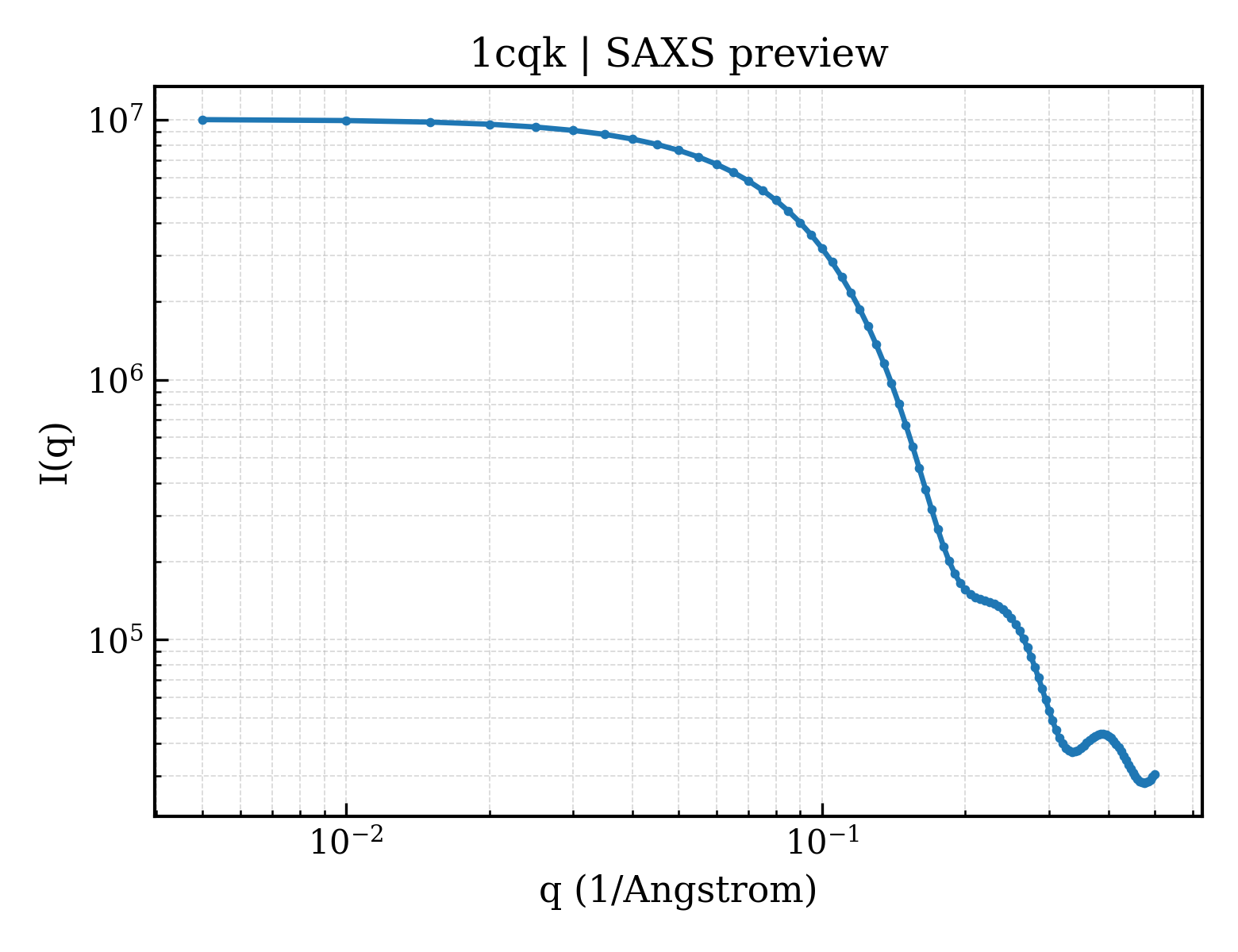

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 water

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

CATH v4.4 (2 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)

来源生物 organism	Mus musculus
通用名 common_name	house mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Escherichia coli

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	77

fit	/app/data/saxs_computation/cq/1cqk/1cqk.fit
pddf	/app/data/pr_computation/cq/1cqk/1cqk.pr.out
profile	/app/data/saxs_computation/cq/1cqk/1cqk.dat
