SAXSdb — 1cr4

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA PRIMASE/HELICASE

Enterobacteria phage T7

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 6 PDB declaration: hexameric（6） Consistent with protein copy count	Chain A； UniProt 271–566	Fragment：HELICASE DOMAIN	SO4 SULFATE ION × 12 TYD THYMIDINE-5'-DIPHOSPHATE × 6	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 9；298 K；AMMONIUM SULFATE, ACES, pH 9.00, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.50 Å R-free 0.287

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1CR4	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1CR0 CRYSTAL STRUCTURE OF THE HELICASE DOMAIN OF THE GENE4 PROTEIN OF BACTERIOPHAGE T7 Deposited 1999-08-12	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 271–566（296 aa） Fragment：HELICASE DOMAIN	Not recorded	SO4 SULFATE ION × 12	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 9；298 K；AMMONIUM SULFATE, ACES, pH 9.00, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.30 Å R-free 0.298
1CR1 CRYSTAL STRUCTURE OF THE HELICASE DOMAIN OF THE GENE 4 PROTEIN OF BACTERIOPHAGE T7: COMPLEX WITH DTTP Deposited 1999-08-12	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 271–566（296 aa） Fragment：HELICASE DOMAIN	Not recorded	SO4 SULFATE ION × 12 TTP THYMIDINE-5'-TRIPHOSPHATE × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 9；298 K；AMMONIUM SULFATE, ACES, pH 9, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.30 Å R-free 0.288
1CR2 CRYSTAL STRUCTURE OF THE HELICASE DOMAIN OF THE GENE 4 PROTEIN OF BACTERIOPHAGE T7: COMPLEX WITH DATP Deposited 1999-08-12	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 271–566（296 aa） Fragment：HELICASE DOMAIN	Not recorded	SO4 SULFATE ION × 12 DTP 2'-DEOXYADENOSINE 5'-TRIPHOSPHATE × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 9；298 K；ammonium sulfate, ACES, pH 9.00, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.30 Å R-free 0.296
1E0J gp4d helicase from phage T7 ADPNP complex Deposited 2000-03-30	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 261–549（289 aa） Fragment：DOMAIN 4D Chain B 261–549（289 aa） Fragment：DOMAIN 4D Chain C 261–549（289 aa） Fragment：DOMAIN 4D	Not recorded	ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 4 MG MAGNESIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 9.5；pH 9.50	Resolution 3.00 Å R-free 0.304
1E0J gp4d helicase from phage T7 ADPNP complex Deposited 2000-03-30	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain D 261–549（289 aa） Fragment：DOMAIN 4D Chain E 261–549（289 aa） Fragment：DOMAIN 4D Chain F 261–549（289 aa） Fragment：DOMAIN 4D	Not recorded	ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 4 MG MAGNESIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 9.5；pH 9.50	Resolution 3.00 Å R-free 0.304
1E0K gp4d helicase from phage T7 Deposited 2000-03-30	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 261–549（289 aa） Fragment：DOMAIN 4D Chain B 261–549（289 aa） Fragment：DOMAIN 4D Chain C 261–549（289 aa） Fragment：DOMAIN 4D	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 9.5；pH 9.50	Resolution 3.30 Å R-free 0.308
1E0K gp4d helicase from phage T7 Deposited 2000-03-30	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain D 261–549（289 aa） Fragment：DOMAIN 4D Chain E 261–549（289 aa） Fragment：DOMAIN 4D Chain F 261–549（289 aa） Fragment：DOMAIN 4D	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 9.5；pH 9.50	Resolution 3.30 Å R-free 0.308
1NUI Crystal Structure of the primase fragment of Bacteriophage T7 primase-helicase protein Deposited 2003-01-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–255（255 aa） Fragment：residues 1-255	Mutation：M64G	ZN ZINC ION × 1 MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；295 K；Sodium Formate, MES, DTT, ATP, pH 6.3, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.90 Å R-free 0.277
1NUI Crystal Structure of the primase fragment of Bacteriophage T7 primase-helicase protein Deposited 2003-01-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–255（255 aa） Fragment：residues 1-255	Mutation：M64G	ZN ZINC ION × 1 MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；295 K；Sodium Formate, MES, DTT, ATP, pH 6.3, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.90 Å R-free 0.277
1Q57 The Crystal Structure of the Bifunctional Primase-Helicase of Bacteriophage T7 Deposited 2003-08-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 7 PDB declaration: heptameric	Chain A 64–566（503 aa） Chain B 64–566（503 aa） Chain C 64–566（503 aa） Chain D 64–566（503 aa） Chain E 64–566（503 aa） Chain F 64–566（503 aa） Chain G 64–566（503 aa）	Mutation：G317V, K318M Mutation：G317V, K318M Mutation：G317V, K318M Mutation：G317V, K318M Mutation：G317V, K318M Mutation：G317V, K318M Mutation：G317V, K318M	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.2；277 K；MES, sodium citrate, pH 7.2, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 3.45 Å R-free 0.326
5IKN Crystal Structure of the T7 Replisome in the Absence of DNA Deposited 2016-03-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 13 PDB declaration: tridecameric	Chain D 64–549（486 aa） Chain E 64–549（486 aa） Chain F 64–549（486 aa） Chain G 64–549（486 aa） Chain H 64–549（486 aa） Chain I 64–549（486 aa） Chain J 64–549（486 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；295.15 K；1.47-1.62M Sodium Formate 0.1M Tris pH 7.5	Resolution 4.80 Å R-free 0.318
6N7I Structure of bacteriophage T7 E343Q mutant gp4 helicase-primase in complex with ssDNA, dTTP, AC dinucleotide and CTP (gp4(5)-DNA) Deposited 2018-11-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 6 PDB declaration: heptameric	Chain A 1–566（566 aa） Chain B 1–566（566 aa） Chain C 1–566（566 aa） Chain D 1–566（566 aa） Chain E 1–566（566 aa） Chain F 1–566（566 aa）	Mutation：E343Q Mutation：E343Q Mutation：E343Q Mutation：E343Q Mutation：E343Q Mutation：E343Q	TTP THYMIDINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
6N7N Structure of bacteriophage T7 E343Q mutant gp4 helicase-primase in complex with ssDNA, dTTP, AC dinucleotide and CTP (form I) Deposited 2018-11-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 6 PDB declaration: heptameric	Chain A 1–566（566 aa） Chain B 1–566（566 aa） Chain C 1–566（566 aa） Chain D 1–566（566 aa） Chain E 1–566（566 aa） Chain F 1–566（566 aa）	Mutation：E343Q Mutation：E343Q Mutation：E343Q Mutation：E343Q Mutation：E343Q Mutation：E343Q	TTP THYMIDINE-5'-TRIPHOSPHATE × 5 MG MAGNESIUM ION × 5	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
6N7S Structure of bacteriophage T7 E343Q mutant gp4 helicase-primase in complex with ssDNA, dTTP, AC dinucleotide and CTP (form II) Deposited 2018-11-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 6 PDB declaration: heptameric	Chain A 1–566（566 aa） Chain B 1–566（566 aa） Chain C 1–566（566 aa） Chain D 1–566（566 aa） Chain E 1–566（566 aa） Chain F 1–566（566 aa）	Mutation：E343Q Mutation：E343Q Mutation：E343Q Mutation：E343Q Mutation：E343Q Mutation：E343Q	TTP THYMIDINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.60 Å
6N7T Structure of bacteriophage T7 E343Q mutant gp4 helicase-primase in complex with ssDNA, dTTP, AC dinucleotide and CTP (form III) Deposited 2018-11-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 6 PDB declaration: heptameric	Chain A 1–566（566 aa） Chain B 1–566（566 aa） Chain C 1–566（566 aa） Chain D 1–566（566 aa） Chain E 1–566（566 aa） Chain F 1–566（566 aa）	Mutation：E343Q Mutation：E343Q Mutation：E343Q Mutation：E343Q Mutation：E343Q Mutation：E343Q	TTP THYMIDINE-5'-TRIPHOSPHATE × 5 MG MAGNESIUM ION × 5	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.90 Å
6N7V Structure of bacteriophage T7 gp4 (helicase-primase, E343Q mutant) in complex with ssDNA, dTTP, AC dinucleotide, and CTP (from multiple lead complexes) Deposited 2018-11-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 6 PDB declaration: heptameric	Chain A 1–566（566 aa） Chain B 1–566（566 aa） Chain C 1–566（566 aa） Chain D 1–566（566 aa） Chain E 1–566（566 aa） Chain F 1–566（566 aa）	Mutation：E343Q Mutation：E343Q Mutation：E343Q Mutation：E343Q Mutation：E343Q Mutation：E343Q	TTP THYMIDINE-5'-TRIPHOSPHATE × 5 MG MAGNESIUM ION × 5	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
6N9U Structure of bacteriophage T7 lagging-strand DNA polymerase (D5A/E7A) interacting with primase domains of two gp4 subunits bound to an RNA/DNA hybrid and dTTP (from LagS1) Deposited 2018-12-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: pentameric	Chain E 1–566（566 aa） Chain F 1–566（566 aa）	Mutation：E343Q Mutation：E343Q	ZN ZINC ION × 1 TTP THYMIDINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
6N9V Structure of bacteriophage T7 lagging-strand DNA polymerase (D5A/E7A) and gp4 (helicase/primase) bound to DNA including RNA/DNA hybrid, and an incoming dTTP (LagS1) Deposited 2018-12-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 7 PDB declaration: nonameric	Chain A 1–566（566 aa） Chain B 1–566（566 aa） Chain C 1–566（566 aa） Chain D 1–566（566 aa） Chain E 1–566（566 aa） Chain F 1–566（566 aa）	Mutation：E343Q Mutation：E343Q Mutation：E343Q Mutation：E343Q Mutation：E343Q Mutation：E343Q	TTP THYMIDINE-5'-TRIPHOSPHATE × 6 MG MAGNESIUM ION × 7 ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
6N9W Structure of bacteriophage T7 lagging-strand DNA polymerase (D5A/E7A) and gp4 (helicase/primase) bound to DNA including RNA/DNA hybrid, and an incoming dTTP (LagS2) Deposited 2018-12-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 7 PDB declaration: nonameric	Chain A 1–566（566 aa） Chain B 1–566（566 aa） Chain C 1–566（566 aa） Chain D 1–566（566 aa） Chain E 1–566（566 aa） Chain F 1–566（566 aa）	Mutation：E343Q Mutation：E343Q Mutation：E343Q Mutation：E343Q Mutation：E343Q Mutation：E343Q	ZN ZINC ION × 1 TTP THYMIDINE-5'-TRIPHOSPHATE × 5 MG MAGNESIUM ION × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
6N9X Structure of bacteriophage T7 lagging-strand DNA polymerase (D5A/E7A) and gp4 (helicase/primase) bound to DNA including RNA/DNA hybrid, and an incoming dTTP (LagS3) Deposited 2018-12-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 7 PDB declaration: nonameric	Chain A 1–566（566 aa） Chain B 1–566（566 aa） Chain C 1–566（566 aa） Chain D 1–566（566 aa） Chain E 1–566（566 aa） Chain F 1–566（566 aa）	Mutation：E343Q Mutation：E343Q Mutation：E343Q Mutation：E343Q Mutation：E343Q Mutation：E343Q	ZN ZINC ION × 1 TTP THYMIDINE-5'-TRIPHOSPHATE × 5 MG MAGNESIUM ION × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.10 Å

17 other PDB entries and 20 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PRIM_BPT7
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–296； UniProt 271–566

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1cr4
Deposition date deposition_date	1999-08-12
Structure title title	CRYSTAL STRUCTURE OF THE HELICASE DOMAIN OF THE GENE 4 PROTEIN OF BACTERIOPHAGE T7: COMPLEX WITH DTDP
Keywords keywords	RECA-TYPE PROTEIN FOLD, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	19.77 Å
Radius of gyration Rg (electron density) rg_electron	18.61 Å
Forward intensity I(0) i0	13393300.00
Molecular weight molecular_weight	26832.0 kDa
Excluded volume excluded_volume	33374 Å³
Envelope volume envelope_volume	40089 Å³
Hydration-shell volume shell_volume	18428 Å³
Envelope diameter envelope_diameter	76.0 Å
Shell Rg shell_rg	24.72 Å
Envelope Rg envelope_rg	19.34 Å
Shape Rg shape_rg	18.61 Å
Total Rg total_rg	19.52 Å
Total atoms total_atoms	1875
Residues n_residues	243
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

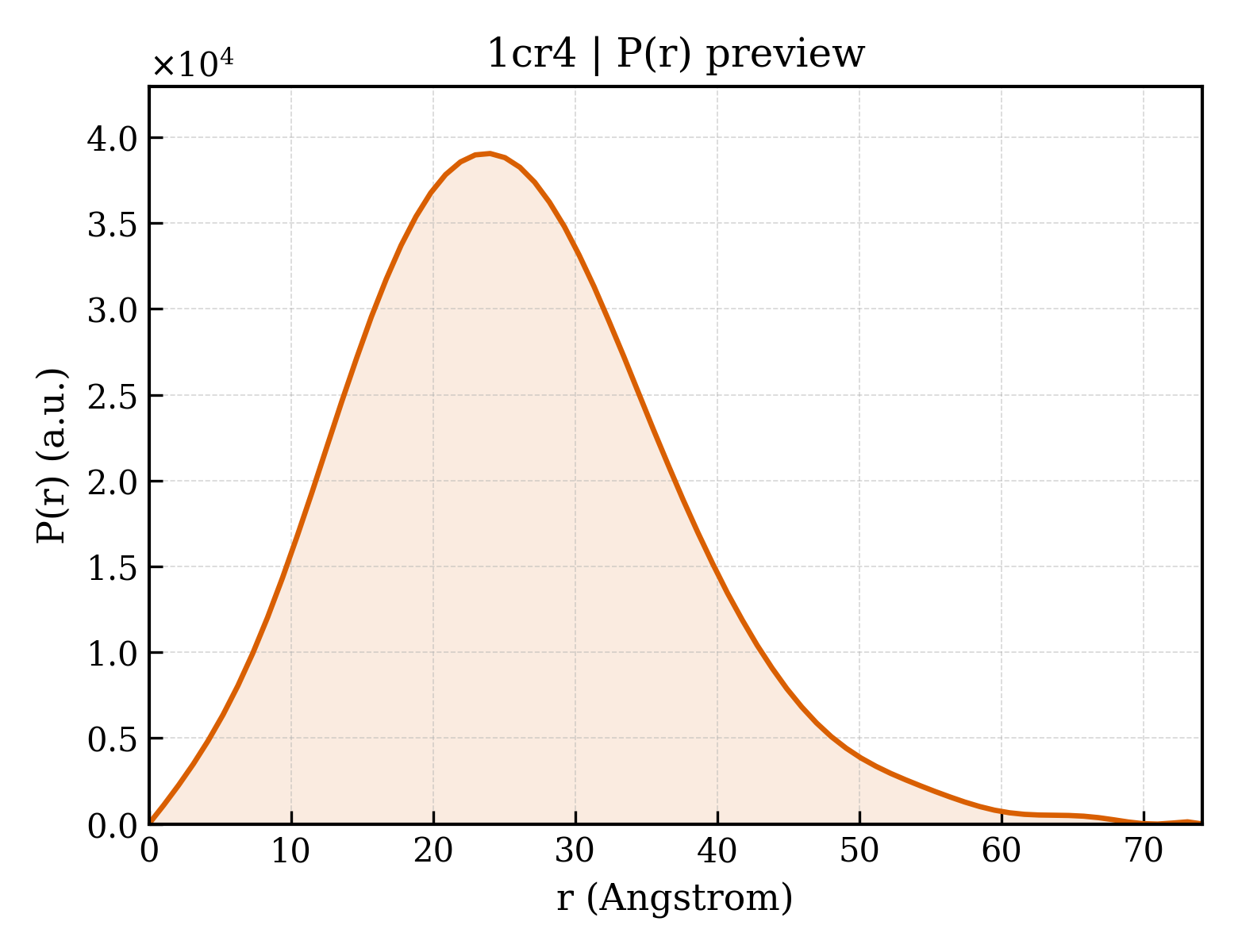

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	74.1 Å
Rg (real space) rg_real	19.78 Å
Rg uncertainty (real space) rg_real_error	0.56 Å
I(0) (real space) i0_real	1.3390e+07
I(0) uncertainty (real space) i0_real_error	1.7680e+05
Rg (reciprocal space) rg_reciprocal	19.78 Å
I(0) (reciprocal space) i0_reciprocal	13390000.0000
Solution quality estimate total_estimate	0.7330
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	24.0 Å
Skewness Skewness skewness	0.458
Kurtosis Kurtosis kurtosis	0.222
Angular range angular_range	— – 0.4000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	2100000.0000
Real-space data points n_real_points	72
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.546; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.888; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	DNA PRIMASE/HELICASE
Molecular weight formula_weight	32832.0 kDa
EC 编号 ec_number	2.7.7.-
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1890

MRERIREHLSSEESVGLLFSGCTGINDKTLGARGGEVIMVTSGSGMGKSTFVRQQALQWGTAMGKKVGLAMLEESVEETAEDLIGLHNRVRLRQSDSLKREIIENGKFDQWFDELFGNDTFHLYDSFAEAETDRLLAKLAYMRSGLGCDVIILDHISIVVSASGESDERKMIDNLMTKLKGFAKSTGVVLVVICHLKNPDKGKAHEEGRPVSITDLRGSGALRQLSDTIIALERNQQGDMPNLVLVRILKCRFTGDTGIAGYMEYNKETGWLEPSSYSGEEESHSESTDWSNDTDF

来源 Source

来源生物 organism	Enterobacteria phage T7
NCBI Class编号 ncbi_taxonomy_id	10760
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	THYMIDINE-5'-DIPHOSPHATE
Molecular weight formula_weight	402.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	15

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1cr4a_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.11 — RecA protein-like (ATPase-domain)

CATH v4.4 (1 domains)

Domain ID domain_id	1cr4A00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

▶

8. Citations (1)

▶

Unit-cell length a length_a	80.784 Å
Unit-cell length b length_b	80.784 Å
Unit-cell length c length_c	85.852 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 61
Space-group number int_tables_number	169
Crystal system crystal_system	—

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2510
R_work r_work	0.2420
R_free r_free	0.2870

fit	/app/data/saxs_computation/cr/1cr4/1cr4.fit
pddf	/app/data/pr_computation/cr/1cr4/1cr4.pr.out
profile	/app/data/saxs_computation/cr/1cr4/1cr4.dat
