1crf
CARDIOTOXIN II FROM TAIWAN COBRA VENOM, NAJA NAJA ATRA: STRUCTURE IN SOLUTION AND COMPARISION AMONG HOMOLOGOUS CARDIOTOXINS

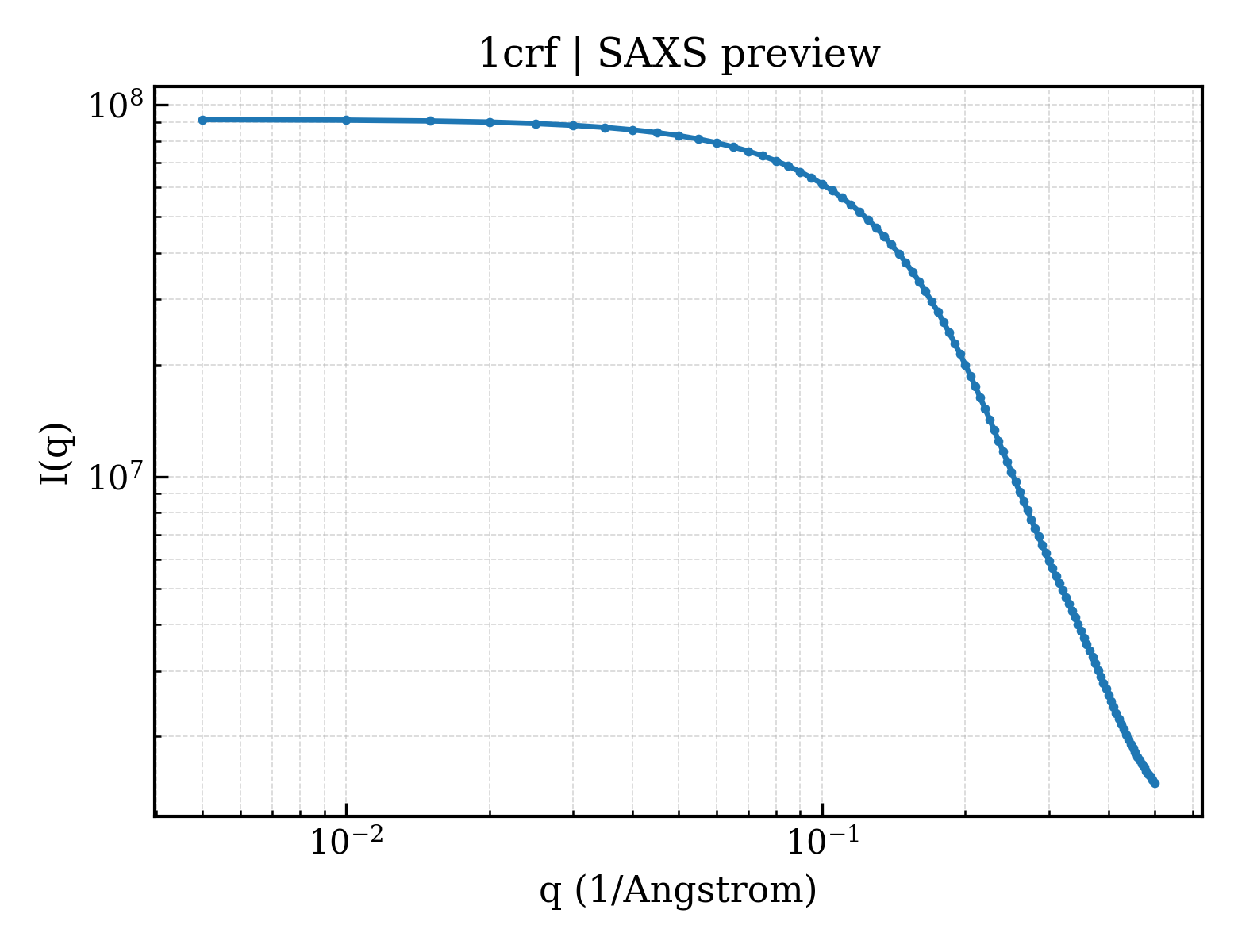

SAXS Profile

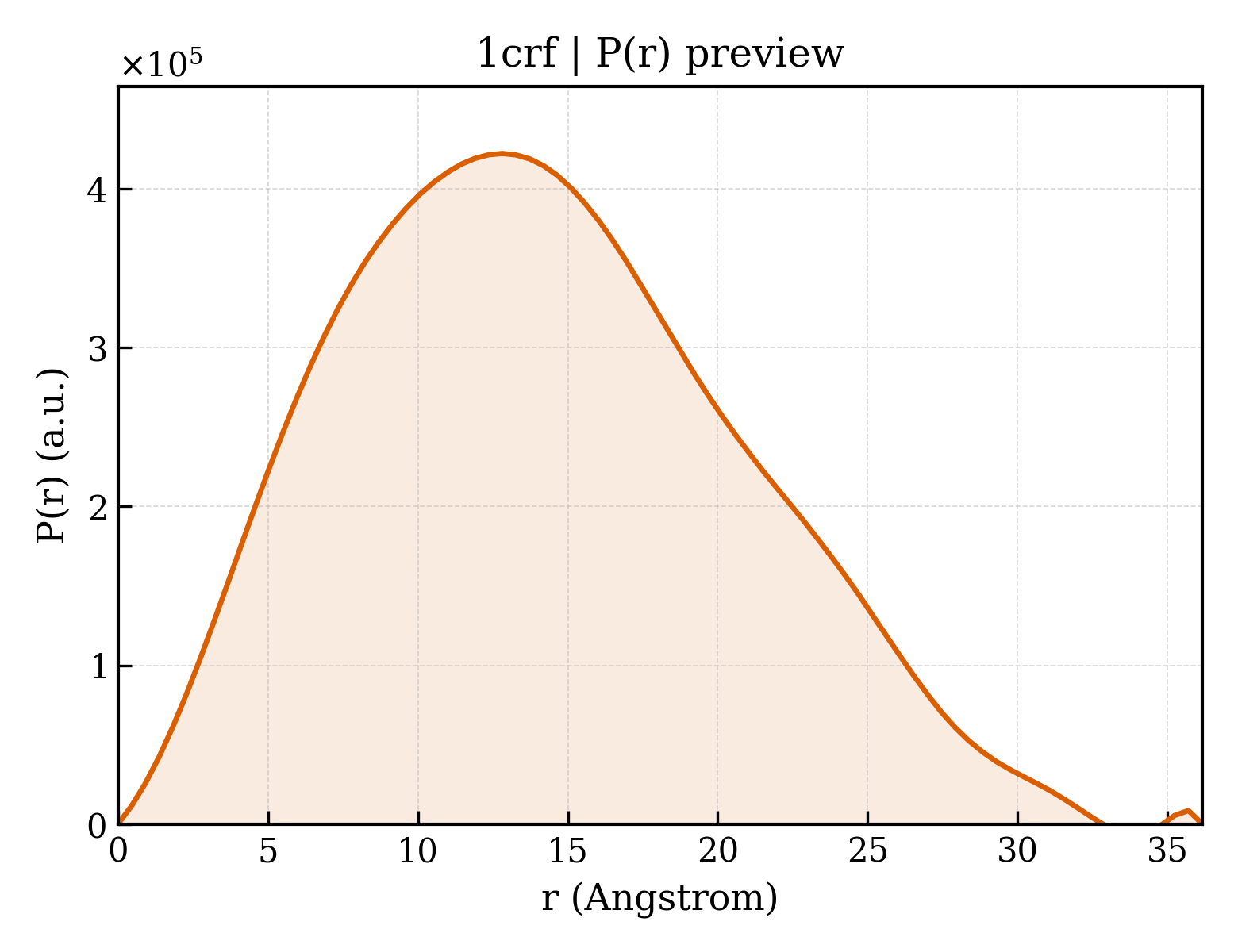

P(r) Distribution
1. Structure Basics
| entry_id | 1crf |
| deposition_date | 1994-03-12 |
| title | CARDIOTOXIN II FROM TAIWAN COBRA VENOM, NAJA NAJA ATRA: STRUCTURE IN SOLUTION AND COMPARISION AMONG HOMOLOGOUS CARDIOTOXINS |
| keywords | CARDIOTOXIN; CARDIOTOXIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 10.95 Å |
| rg_electron | 11.55 Å |
| i0 | 91392900.00 |
| molecular_weight | 81099.0 kDa |
| excluded_volume | 102370 ų |
| envelope_volume | 14566 ų |
| shell_volume | 9938 ų |
| envelope_diameter | 41.5 Å |
| shell_rg | 18.19 Å |
| envelope_rg | 13.06 Å |
| shape_rg | 11.56 Å |
| total_rg | 11.80 Å |
| total_atoms | 11412 |
| n_residues | 720 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 36.2 Å |
| rg_real | 10.97 Å |
| rg_real_error | 0.32 Å |
| i0_real | 9.1390e+07 |
| i0_real_error | 9.1850e+05 |
| rg_reciprocal | 10.97 Å |
| i0_reciprocal | 91390000.0000 |
| total_estimate | 0.8204 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 12.8 Å |
| skewness | 0.294 |
| kurtosis | -0.513 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 35510.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.923; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.892; Smooth: 0.000 |
