1csc
Structure of ternary complexes of citrate synthase with D-and L-malate: Mechanistic implications
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1csc |
| deposition_date | 1990-05-07 |
| title | Structure of ternary complexes of citrate synthase with D-and L-malate: Mechanistic implications |
| keywords | OXO-ACID-LYASE; OXO-ACID-LYASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 22.90 Å |
| rg_electron | 21.76 Å |
| i0 | 38157700.00 |
| molecular_weight | 47878.0 kDa |
| excluded_volume | 60006 ų |
| envelope_volume | 71219 ų |
| shell_volume | 26552 ų |
| envelope_diameter | 74.6 Å |
| shell_rg | 29.48 Å |
| envelope_rg | 22.31 Å |
| shape_rg | 21.75 Å |
| total_rg | 22.74 Å |
| total_atoms | 3367 |
| n_residues | 429 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

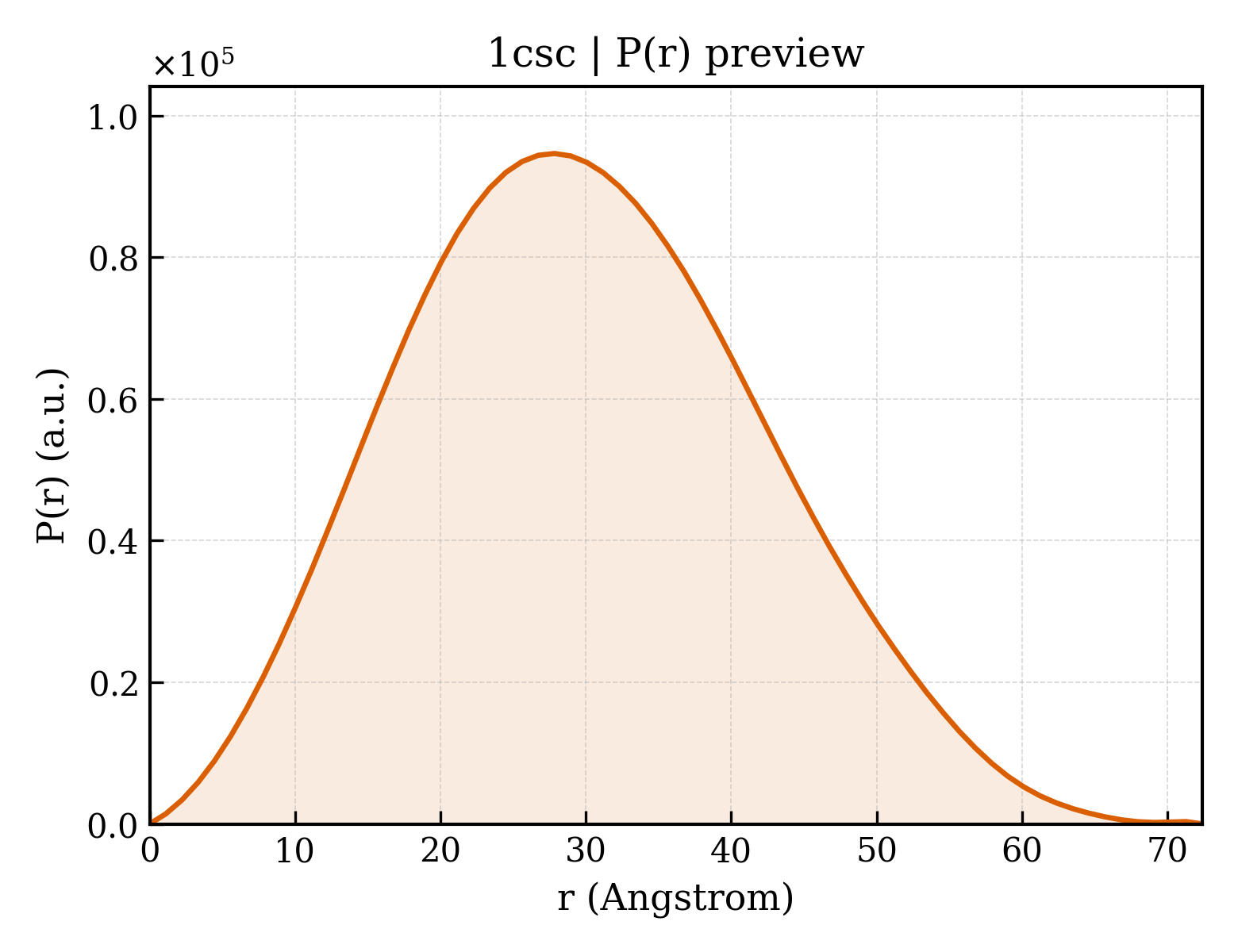

3. P(r) Analysis (GNOM)
| dmax | 72.4 Å |
| rg_real | 22.79 Å |
| rg_real_error | 0.40 Å |
| i0_real | 3.8160e+07 |
| i0_real_error | 5.0830e+05 |
| rg_reciprocal | 22.82 Å |
| i0_reciprocal | 38160000.0000 |
| total_estimate | 0.8986 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 27.9 Å |
| skewness | 0.217 |
| kurtosis | -0.401 |
| angular_range | — – 0.3450 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 7771000.0000 |
| n_real_points | 66 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.896; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.994; Smooth: 0.995 |
