1csp
CRYSTAL STRUCTURE OF THE BACILLUS SUBTILIS MAJOR COLD SHOCK PROTEIN, CSPB: A UNIVERSAL NUCLEIC-ACID BINDING DOMAIN

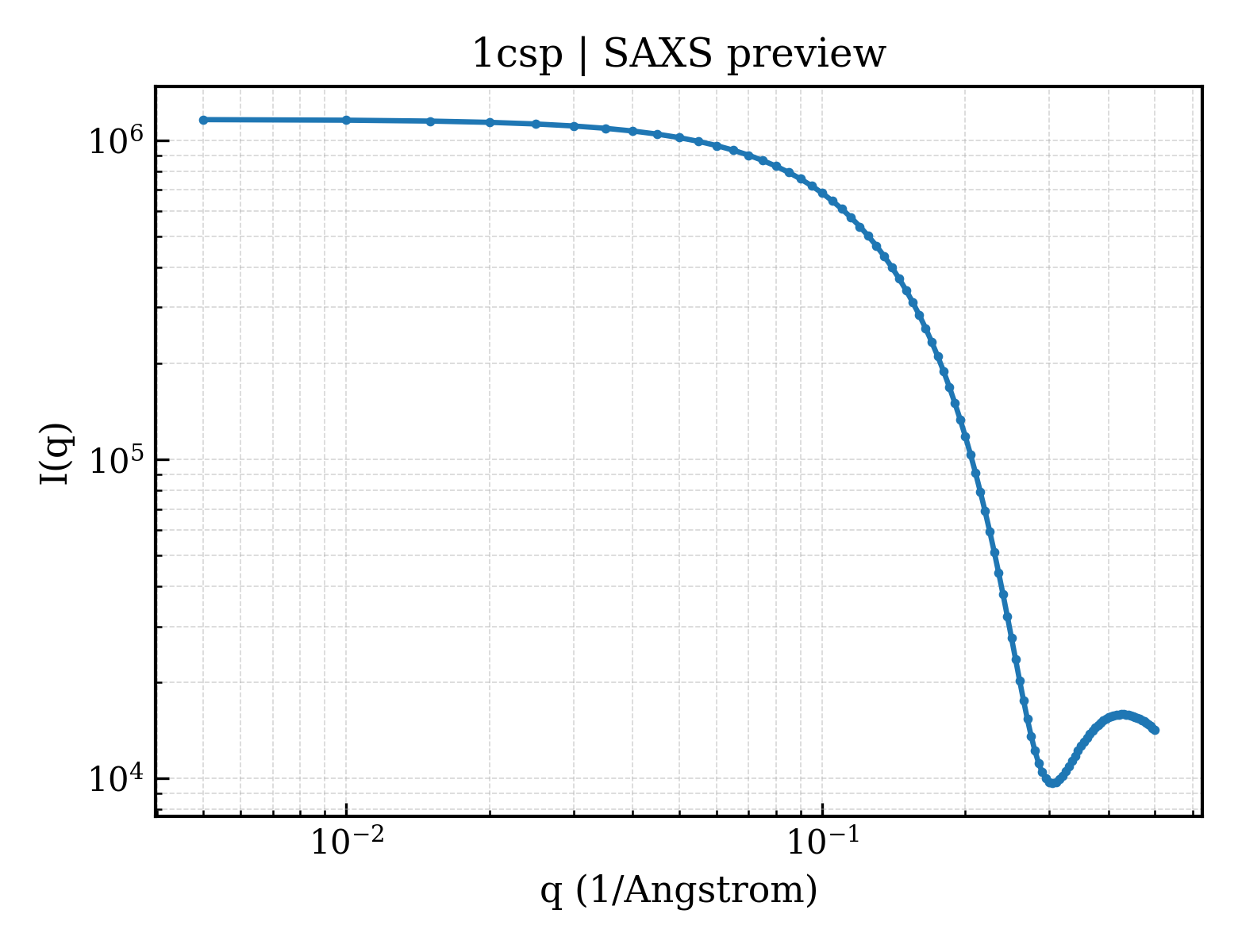

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1csp |
| deposition_date | 1993-05-12 |
| title | CRYSTAL STRUCTURE OF THE BACILLUS SUBTILIS MAJOR COLD SHOCK PROTEIN, CSPB: A UNIVERSAL NUCLEIC-ACID BINDING DOMAIN |
| keywords | TRANSCRIPTION REGULATION; TRANSCRIPTION REGULATION |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 12.56 Å |
| rg_electron | 10.92 Å |
| i0 | 1164740.00 |
| molecular_weight | 7127.0 kDa |
| excluded_volume | 8924 ų |
| envelope_volume | 10097 ų |
| shell_volume | 8113 ų |
| envelope_diameter | 37.5 Å |
| shell_rg | 16.30 Å |
| envelope_rg | 11.35 Å |
| shape_rg | 10.90 Å |
| total_rg | 12.48 Å |
| total_atoms | 505 |
| n_residues | 67 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 39.2 Å |
| rg_real | 12.49 Å |
| rg_real_error | 0.20 Å |
| i0_real | 1.1650e+06 |
| i0_real_error | 1.1140e+04 |
| rg_reciprocal | 12.49 Å |
| i0_reciprocal | 1165000.0000 |
| total_estimate | 0.8908 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 15.9 Å |
| skewness | 0.148 |
| kurtosis | -0.274 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 286100.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.870; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.989; Smooth: 0.976 |
