1ct8

CATALYTIC ANTIBODY 7C8 COMPLEX

Method: X-RAY DIFFRACTION D_max: 155.8 Å Quality: REASONABLE

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

No usable UniProt protein identity is available for this entry.

七张关系表仍保留该条目的 assembly 与组成信息，但缺少统一蛋白身份时，不能可靠建立跨 PDB 的同蛋白Chain接。

Assembly Composition of the Current Entry

Assembly	Oligomeric State	实体与Construct证据	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer 蛋白 4 / DNA 0 / RNA 0 / 其他Polymer 0 PDB declaration: tetrameric	Entity 1：7C8 FAB FRAGMENT; SHORT CHAIN × 2 Entity 2：7C8 FAB FRAGMENT; LONG CHAIN × 2 缺少 UniProt 身份时不显示参考序列区间	Not recorded	SO4 SULFATE ION × 2 TAA [4-(2,2,2-TRIFLUORO-ACETYLAMINO)-BENZYL]-PHOSPHONIC ACID MONO-[2-(2,2-DICHLORO-1-HYDROXY-ETHYLAMINO)-3-HYDROXY-1-(4-NITRO-PHENYL)-PROPYL] ESTER × 2	X-RAY DIFFRACTION X-ray crystallization conditions：hanging drop vapor diffusion; seeding used；pH 4；291 K；30% (w/V) PEG 8000 200mM Ammonium sulfate, pH 4.0, hanging drop vapor diffusion; seeding used, temperature 291K	Resolution 2.20 Å R-free 0.275
2	Protein heterocomplex Heteromer 蛋白 2 / DNA 0 / RNA 0 / 其他Polymer 0 PDB declaration: dimeric	Entity 1：7C8 FAB FRAGMENT; SHORT CHAIN × 1 Entity 2：7C8 FAB FRAGMENT; LONG CHAIN × 1 缺少 UniProt 身份时不显示参考序列区间	Not recorded	SO4 SULFATE ION × 1 TAA [4-(2,2,2-TRIFLUORO-ACETYLAMINO)-BENZYL]-PHOSPHONIC ACID MONO-[2-(2,2-DICHLORO-1-HYDROXY-ETHYLAMINO)-3-HYDROXY-1-(4-NITRO-PHENYL)-PROPYL] ESTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions：hanging drop vapor diffusion; seeding used；pH 4；291 K；30% (w/V) PEG 8000 200mM Ammonium sulfate, pH 4.0, hanging drop vapor diffusion; seeding used, temperature 291K	Resolution 2.20 Å R-free 0.275
3	Protein heterocomplex Heteromer 蛋白 2 / DNA 0 / RNA 0 / 其他Polymer 0 PDB declaration: dimeric	Entity 1：7C8 FAB FRAGMENT; SHORT CHAIN × 1 Entity 2：7C8 FAB FRAGMENT; LONG CHAIN × 1 缺少 UniProt 身份时不显示参考序列区间	Not recorded	SO4 SULFATE ION × 1 TAA [4-(2,2,2-TRIFLUORO-ACETYLAMINO)-BENZYL]-PHOSPHONIC ACID MONO-[2-(2,2-DICHLORO-1-HYDROXY-ETHYLAMINO)-3-HYDROXY-1-(4-NITRO-PHENYL)-PROPYL] ESTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions：hanging drop vapor diffusion; seeding used；pH 4；291 K；30% (w/V) PEG 8000 200mM Ammonium sulfate, pH 4.0, hanging drop vapor diffusion; seeding used, temperature 291K	Resolution 2.20 Å R-free 0.275

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

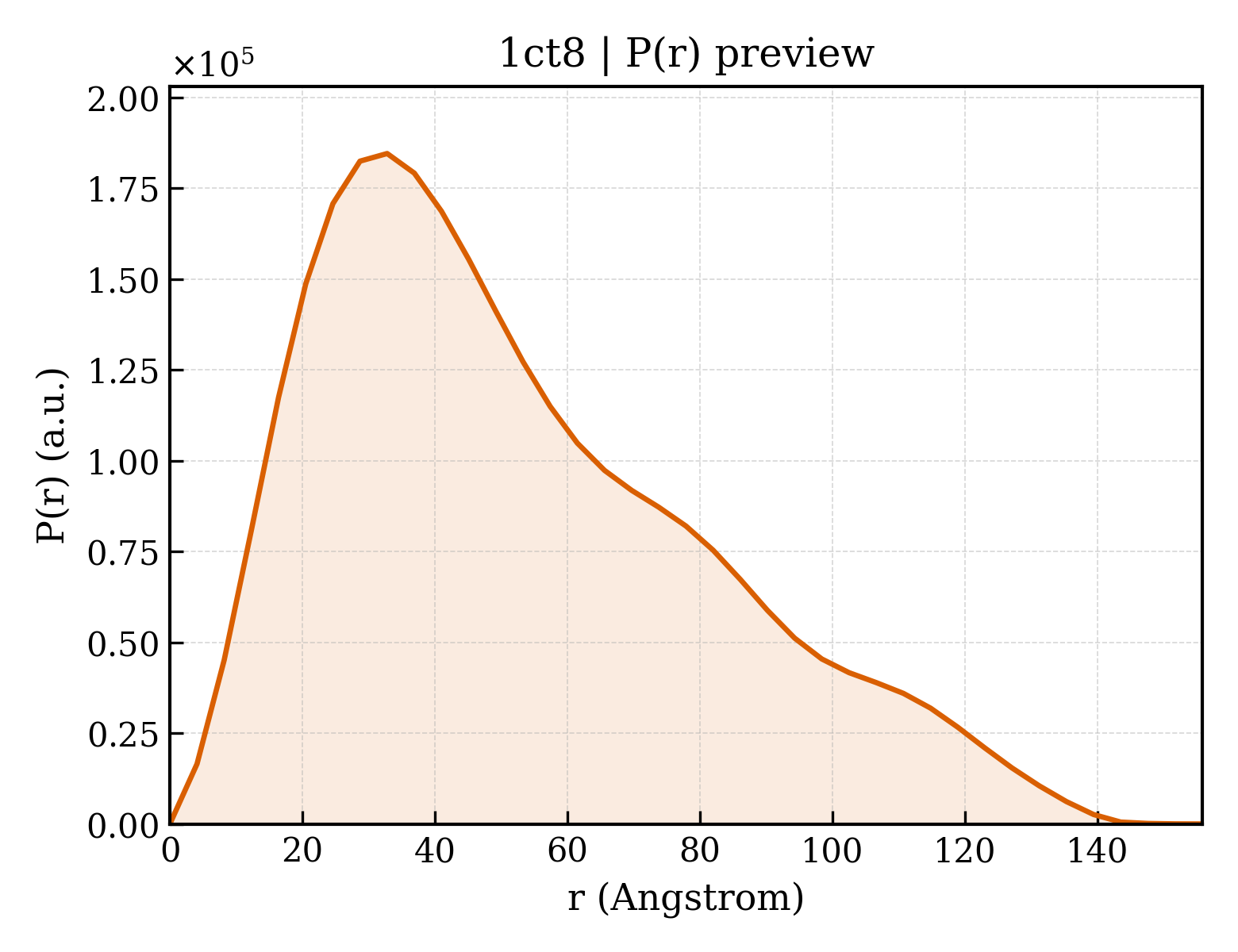

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ct8
Deposition date deposition_date	1999-08-20
Structure title title	CATALYTIC ANTIBODY 7C8 COMPLEX
Keywords keywords	ABZYME TRANSITION STATE ANALOG, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	41.64 Å
Radius of gyration Rg (electron density) rg_electron	42.20 Å
Forward intensity I(0) i0	145499000.00
Molecular weight molecular_weight	95716.0 kDa
Excluded volume excluded_volume	118780 Å³
Envelope volume envelope_volume	159250 Å³
Hydration-shell volume shell_volume	36163 Å³
Envelope diameter envelope_diameter	152.1 Å
Shell Rg shell_rg	39.88 Å
Envelope Rg envelope_rg	42.20 Å
Shape Rg shape_rg	42.15 Å
Total Rg total_rg	42.23 Å
Total atoms total_atoms	6726
Residues n_residues	868
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	155.8 Å
Rg (real space) rg_real	42.35 Å
Rg uncertainty (real space) rg_real_error	2.66 Å
I(0) (real space) i0_real	1.4550e+08
I(0) uncertainty (real space) i0_real_error	3.2130e+06
Rg (reciprocal space) rg_reciprocal	41.65 Å
I(0) (reciprocal space) i0_reciprocal	145400000.0000
Solution quality estimate total_estimate	0.7053
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	32.8 Å
Skewness Skewness skewness	0.691
Kurtosis Kurtosis kurtosis	-0.251
Angular range angular_range	— – 0.1900 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	12050000.0000
Real-space data points n_real_points	39
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.355; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.326; Smooth: 0.775

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	7C8 FAB FRAGMENT; SHORT CHAIN
Molecular weight formula_weight	23546.0 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	6921

ELVMTQTPATLSVTPGDSVSLSCRASQSVSNKLHWYQQKSHESPRLLIKFASQSIPGIPSRFSGSGSGSDFTLSINSVETEDFGIYFCHQTHGRPLTFGAGTKLELKRADAAPTVSIFPPSSEQLTSGGASVVCFLNNFYPKDINVKWKIDGSERQNGVLNSWTDQDSKDSTYSMSSTLTLTKDEYERHNSYTCEATHKTSTSPIVKSFNRNEC

Entity 2 Entity 2 polymer

Description description	7C8 FAB FRAGMENT; LONG CHAIN
Molecular weight formula_weight	23668.6 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

QVKLLESGAVLVKPGASVKLSCKTSGFTFSSSYINWLKQKPGQSLEWIAWIYAGSGGTVYNQHFTDKARLTVDTSSSTAYMQFSSLTTEDSAIYYCARYRYDEGFAYWGQGTLVTVSAAKTTPPSVYPLAPGSAAQTNSMVTLGCLVKGYFPEPVTVTWNSGSLSSGVHTFPAVLQSDLYTLSSSVTVPSSTWPSETVTCNVAHPASSTKVDKKIVPRDC

Entity 3 Entity 3 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	;[4-(2,2,2-TRIFLUORO-ACETYLAMINO)-BENZYL]-PHOSPHONIC ACID MONO-[2-(2,2-DICHLORO-1-HYDROXY-ETHYLAMINO)-3-HYDROXY-1-(4-NITRO-PHENYL)-PROPYL] ESTER ;
Molecular weight formula_weight	590.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	195

▼

7. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d1ct8a1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d1ct8a2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d1ct8b1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d1ct8b2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d1ct8c1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d1ct8c2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d1ct8d1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d1ct8d2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

CATH v4.4 (8 domains)

Domain ID domain_id	1ct8A01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1ct8A02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1ct8B01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1ct8B02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1ct8C01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1ct8C02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1ct8D01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1ct8D02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

8. Citations (1)

▶

Unit-cell length a length_a	54.558 Å
Unit-cell length b length_b	65.612 Å
Unit-cell length c length_c	117.761 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	95.56 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.200 Å
Low-resolution limit resolution_low	14.300 Å
R factor r_factor	—
R_work r_work	0.2110
R_free r_free	0.2750

fit	/app/data/saxs_computation/ct/1ct8/1ct8.fit
pddf	/app/data/pr_computation/ct/1ct8/1ct8.pr.out
profile	/app/data/saxs_computation/ct/1ct8/1ct8.dat
