1ctl
STRUCTURE OF THE CARBOXY-TERMINAL LIM DOMAIN FROM THE CYSTEINE RICH PROTEIN CRP

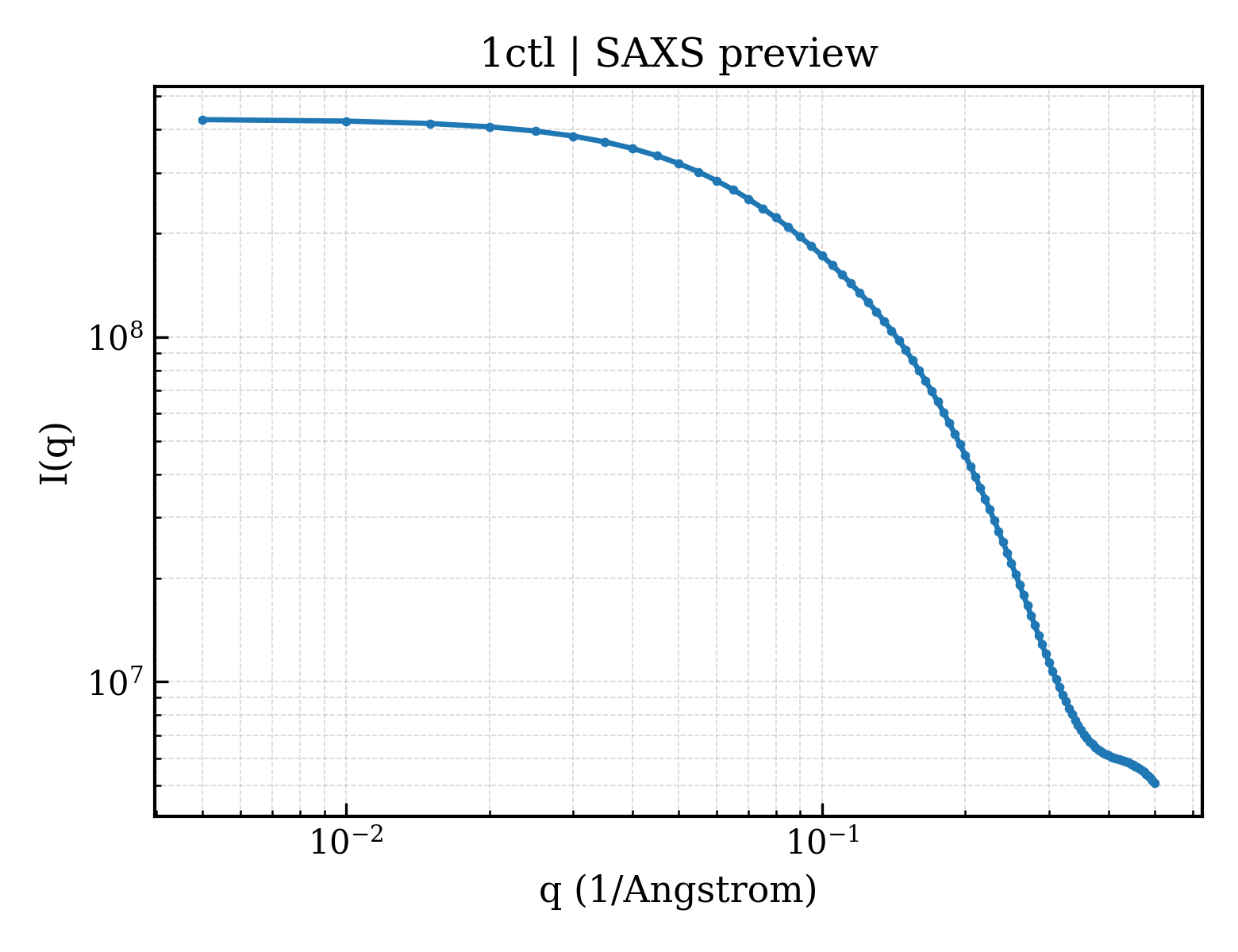

SAXS Profile

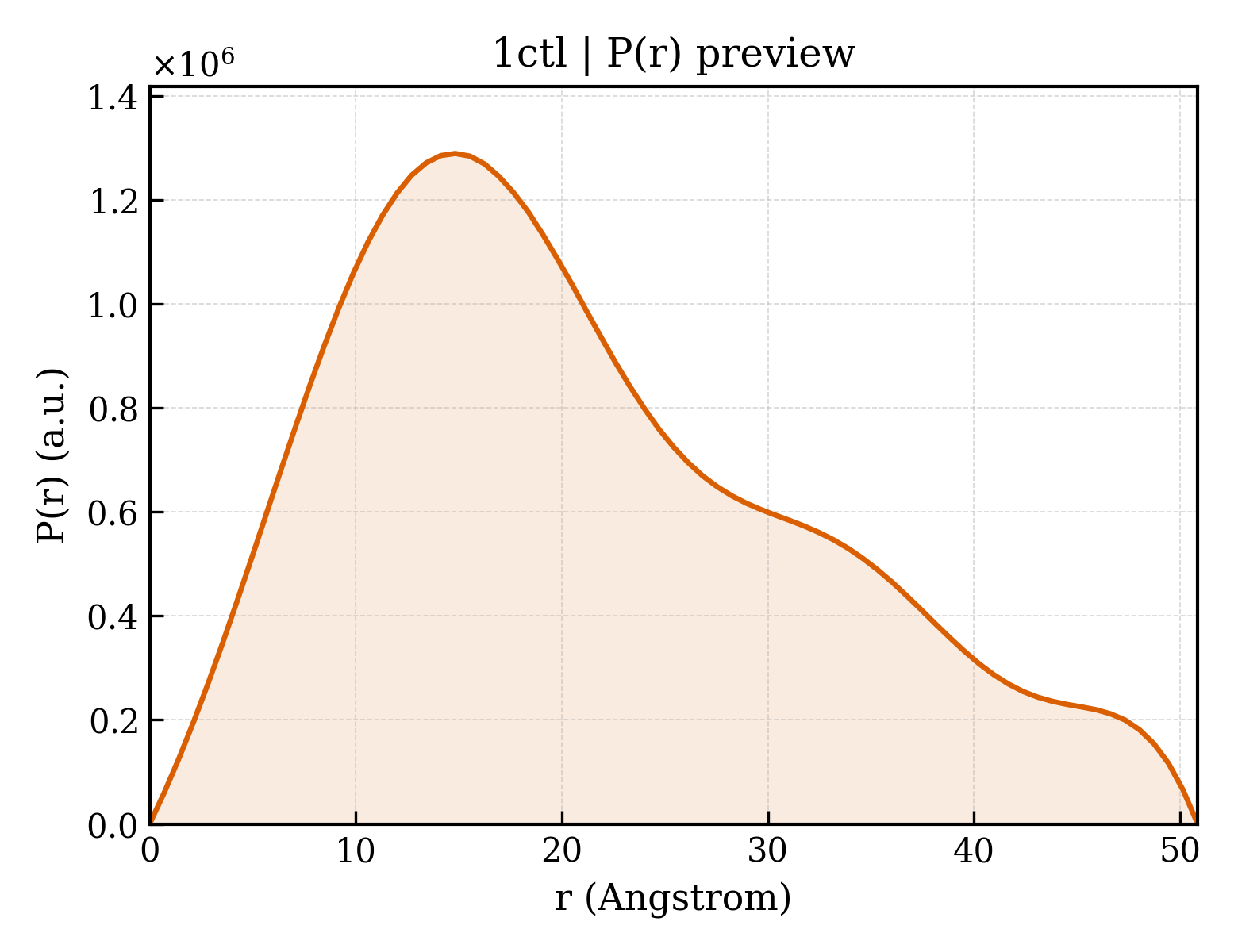

P(r) Distribution
1. Structure Basics
| entry_id | 1ctl |
| deposition_date | 1995-01-06 |
| title | STRUCTURE OF THE CARBOXY-TERMINAL LIM DOMAIN FROM THE CYSTEINE RICH PROTEIN CRP |
| keywords | LIM DOMAIN CONTAINING PROTEINS, METAL-BINDING PROTEIN, METAL BINDING PROTEIN; METAL BINDING PROTEIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 18.86 Å |
| rg_electron | 19.56 Å |
| i0 | 428934000.00 |
| molecular_weight | 161310.0 kDa |
| excluded_volume | 196740 ų |
| envelope_volume | 71559 ų |
| shell_volume | 22490 ų |
| envelope_diameter | 95.9 Å |
| shell_rg | 33.07 Å |
| envelope_rg | 30.35 Å |
| shape_rg | 19.69 Å |
| total_rg | 19.63 Å |
| total_atoms | 21852 |
| n_residues | 1530 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 50.9 Å |
| rg_real | 16.73 Å |
| rg_real_error | 0.15 Å |
| i0_real | 4.0480e+08 |
| i0_real_error | 4.3370e+06 |
| rg_reciprocal | 19.58 Å |
| i0_reciprocal | 428900000.0000 |
| total_estimate | 0.6192 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 1 |
| r_peak_primary | 14.8 Å |
| skewness | 0.570 |
| kurtosis | -0.427 |
| angular_range | — – 0.4200 Å−1 |
| current_alpha | 2.0400 |
| highest_alpha | 133900.0000 |
| n_real_points | 73 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.016; Oscil: 0.849; Stabil: 0.981; Sysdev: 0.000; Positv: 1.000; Valcen: 0.646; Smooth: 0.000 |
