1cv2
Hydrolytic haloalkane dehalogenase linb from sphingomonas paucimobilis UT26 AT 1.6 A resolution

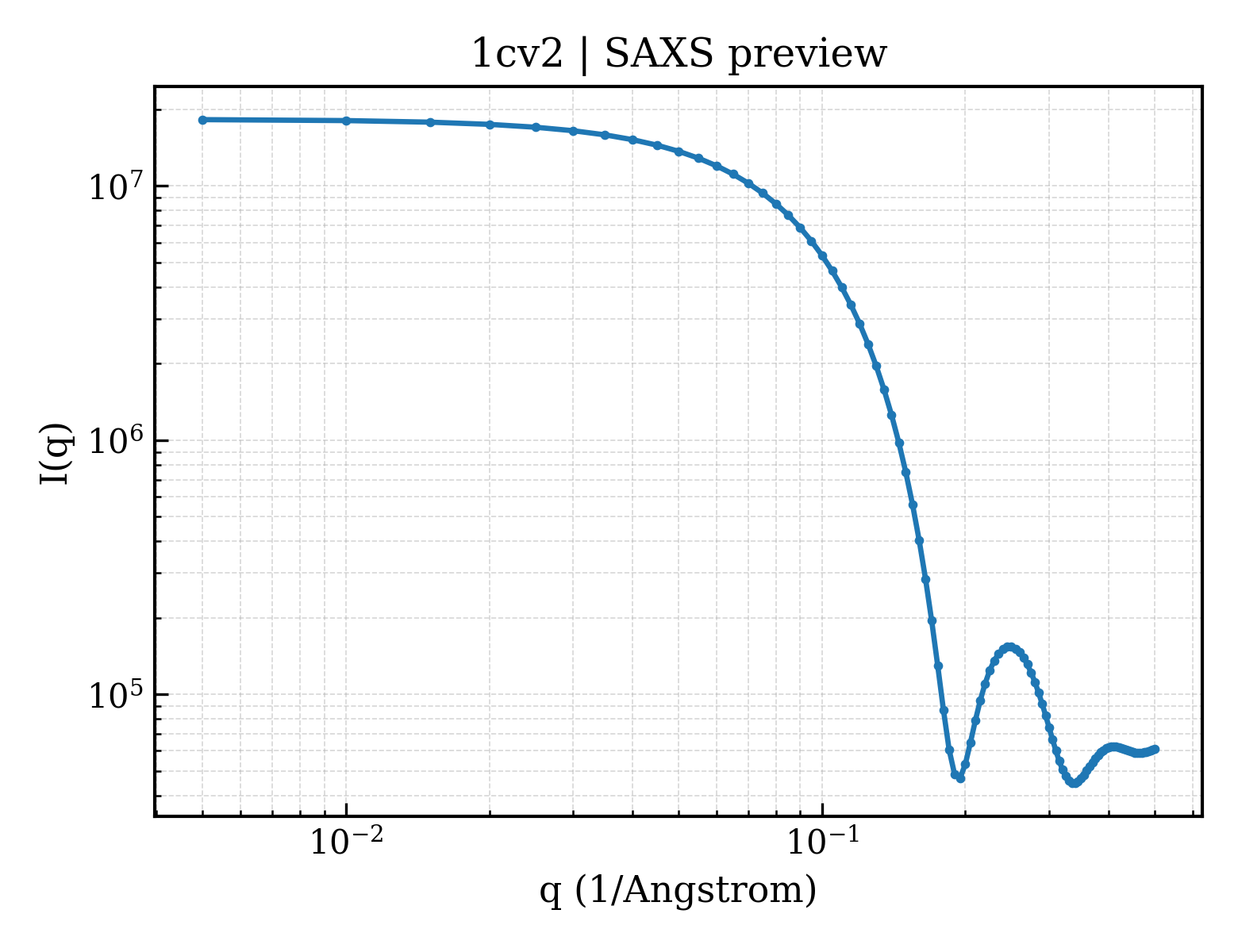

SAXS Profile

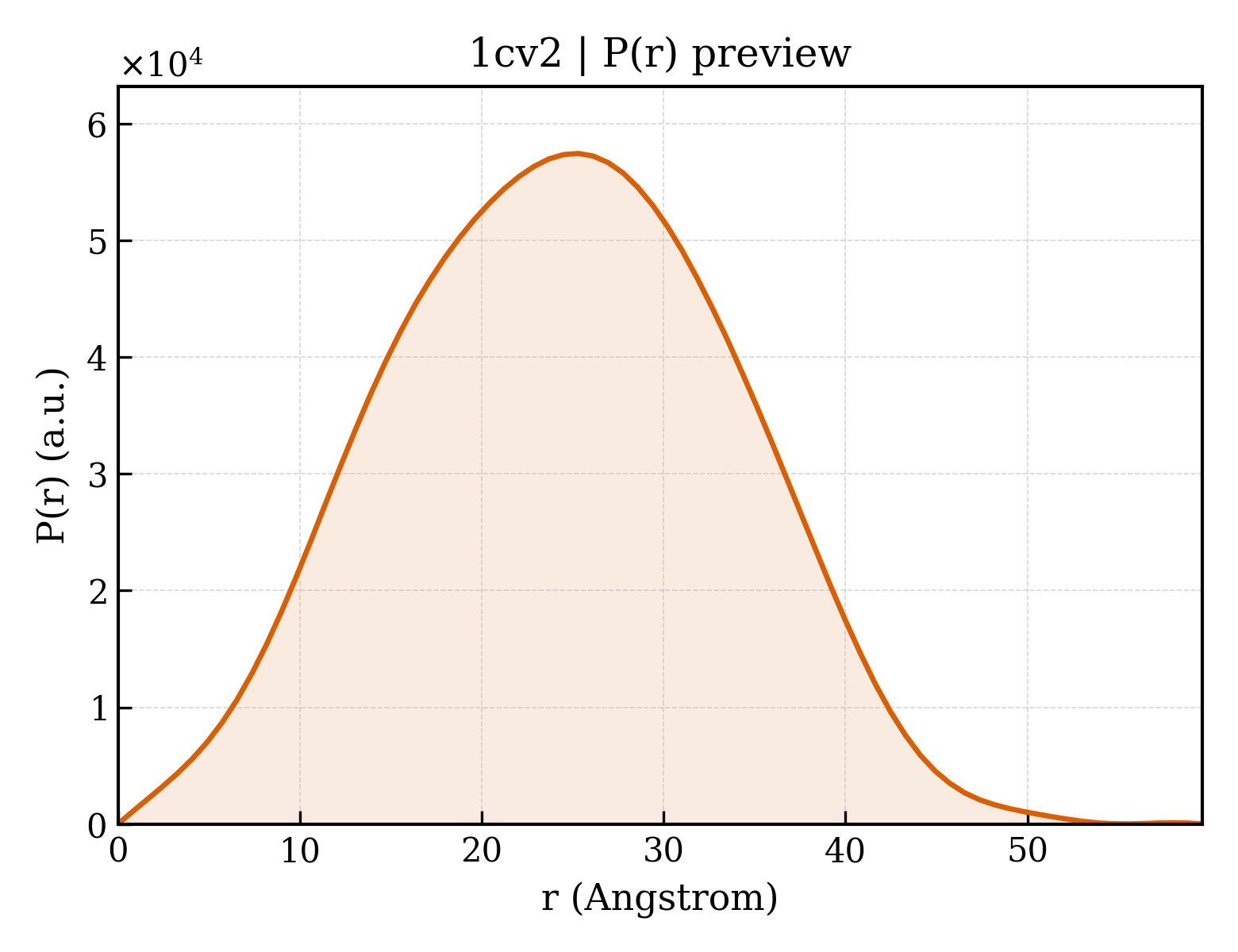

P(r) Distribution
1. Structure Basics
| entry_id | 1cv2 |
| deposition_date | 1999-08-22 |
| title | Hydrolytic haloalkane dehalogenase linb from sphingomonas paucimobilis UT26 AT 1.6 A resolution |
| keywords | DEHALOGENASE, LINDANE, BIODEGRADATION, ALPHA/BETA-HYDROLASE, HYDROLASE; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 18.65 Å |
| rg_electron | 17.31 Å |
| i0 | 18288600.00 |
| molecular_weight | 32573.0 kDa |
| excluded_volume | 40696 ų |
| envelope_volume | 43230 ų |
| shell_volume | 20135 ų |
| envelope_diameter | 60.4 Å |
| shell_rg | 24.47 Å |
| envelope_rg | 17.52 Å |
| shape_rg | 17.29 Å |
| total_rg | 18.30 Å |
| total_atoms | 2301 |
| n_residues | 293 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 59.6 Å |
| rg_real | 18.48 Å |
| rg_real_error | 0.28 Å |
| i0_real | 1.8290e+07 |
| i0_real_error | 2.2770e+05 |
| rg_reciprocal | 18.51 Å |
| i0_reciprocal | 18290000.0000 |
| total_estimate | 0.8789 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 25.3 Å |
| skewness | 0.034 |
| kurtosis | -0.466 |
| angular_range | — – 0.4250 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 7132000.0000 |
| n_real_points | 74 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.814; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.981; Smooth: 0.998 |
