1cwe
HUMAN P56LCK TYROSINE KINASE COMPLEXED WITH PHOSPHOPEPTIDE

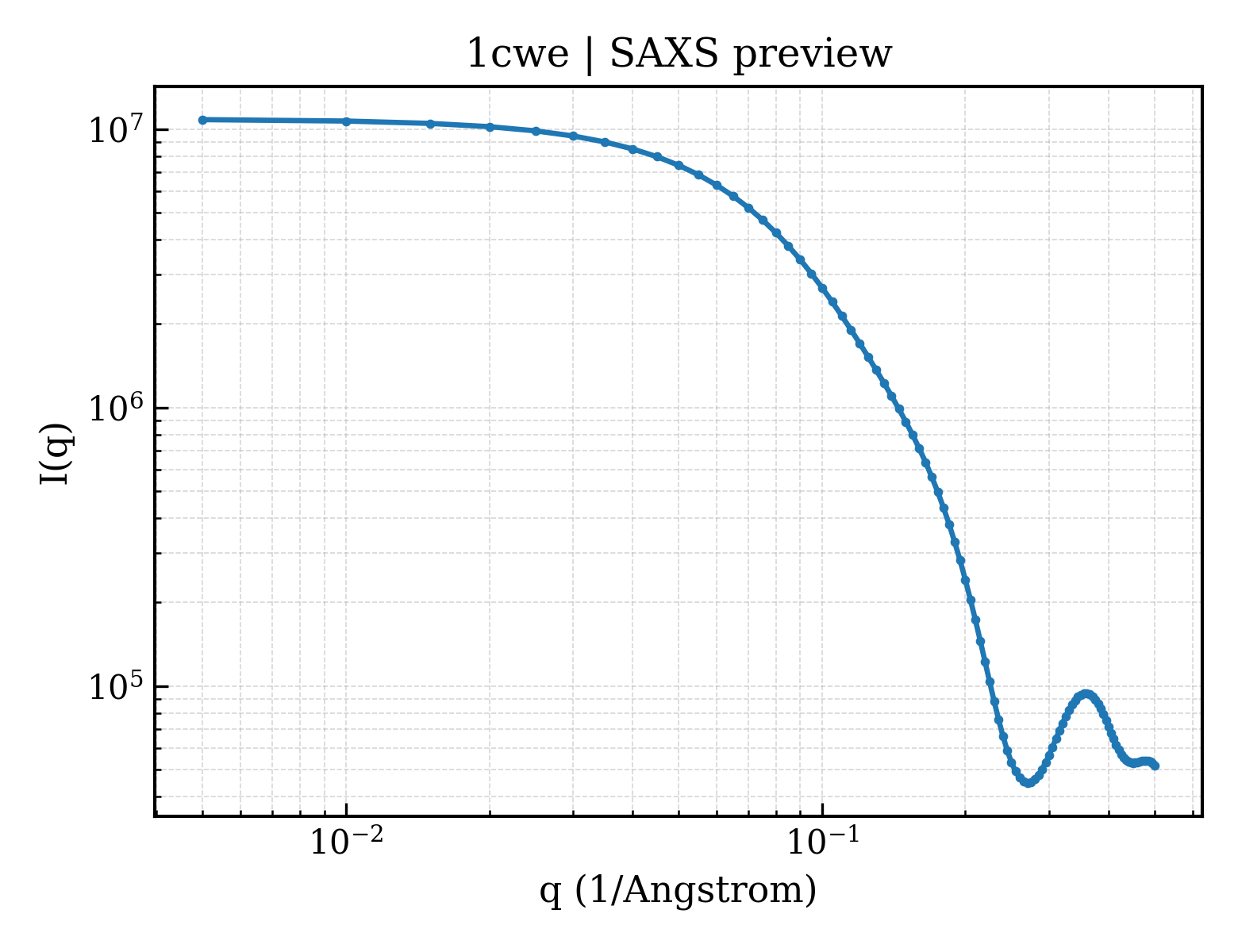

SAXS Profile

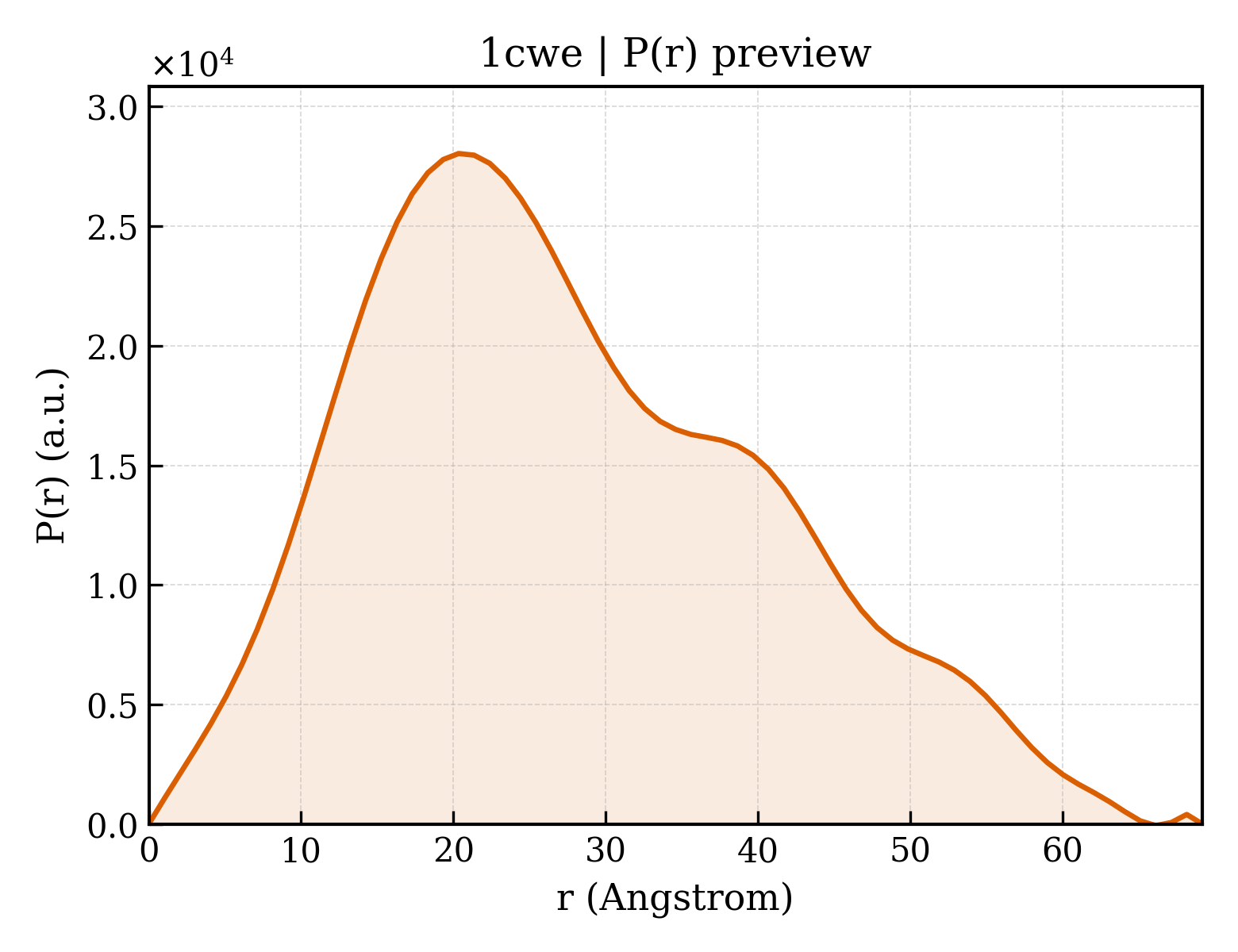

P(r) Distribution
1. Structure Basics
| entry_id | 1cwe |
| deposition_date | 1995-09-06 |
| title | HUMAN P56LCK TYROSINE KINASE COMPLEXED WITH PHOSPHOPEPTIDE |
| keywords | PHOSPHOTRANSFERASE, TRANSFERASE-PEPTIDE complex; TRANSFERASE/PEPTIDE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 21.44 Å |
| rg_electron | 21.01 Å |
| i0 | 10853900.00 |
| molecular_weight | 23728.0 kDa |
| excluded_volume | 29287 ų |
| envelope_volume | 36014 ų |
| shell_volume | 15394 ų |
| envelope_diameter | 69.2 Å |
| shell_rg | 25.49 Å |
| envelope_rg | 20.95 Å |
| shape_rg | 21.04 Å |
| total_rg | 21.55 Å |
| total_atoms | 1677 |
| n_residues | 206 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 69.2 Å |
| rg_real | 21.57 Å |
| rg_real_error | 0.57 Å |
| i0_real | 1.0850e+07 |
| i0_real_error | 1.4620e+05 |
| rg_reciprocal | 21.55 Å |
| i0_reciprocal | 10850000.0000 |
| total_estimate | 0.7845 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 20.3 Å |
| skewness | 0.452 |
| kurtosis | -0.457 |
| angular_range | — – 0.3700 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2718000.0000 |
| n_real_points | 69 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.771; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.886; Smooth: 0.000 |
