1cyo
BOVINE CYTOCHROME B(5)
SAXS Profile

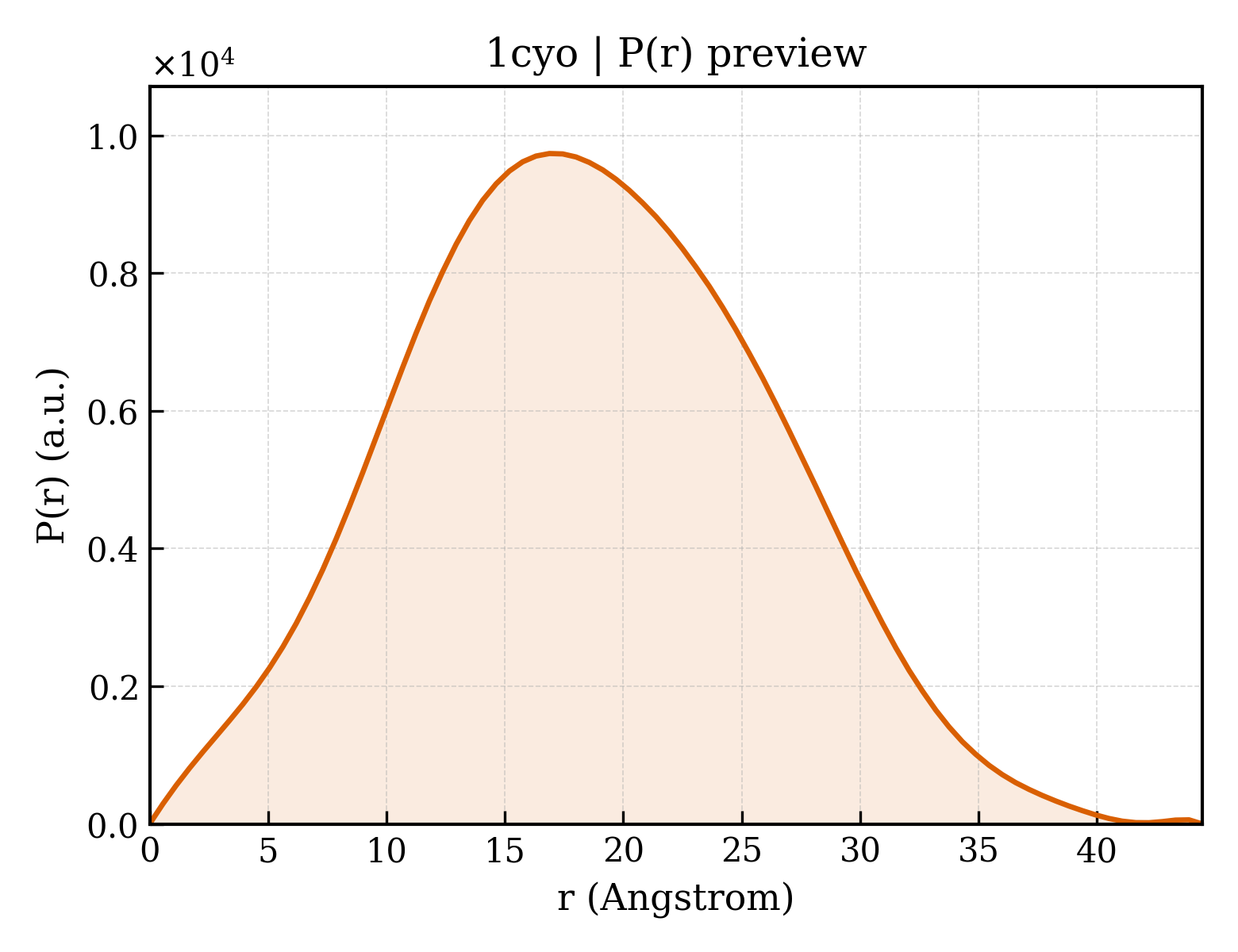

P(r) Distribution
1. Structure Basics
| entry_id | 1cyo |
| deposition_date | 1994-08-03 |
| title | BOVINE CYTOCHROME B(5) |
| keywords | ELECTRON TRANSPORT; ELECTRON TRANSPORT |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 14.22 Å |
| rg_electron | 12.72 Å |
| i0 | 2442470.00 |
| molecular_weight | 10700.0 kDa |
| excluded_volume | 13345 ų |
| envelope_volume | 15114 ų |
| shell_volume | 10232 ų |
| envelope_diameter | 44.0 Å |
| shell_rg | 18.40 Å |
| envelope_rg | 13.17 Å |
| shape_rg | 12.68 Å |
| total_rg | 14.19 Å |
| total_atoms | 757 |
| n_residues | 88 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 44.4 Å |
| rg_real | 14.12 Å |
| rg_real_error | 0.23 Å |
| i0_real | 2.4420e+06 |
| i0_real_error | 2.5790e+04 |
| rg_reciprocal | 14.13 Å |
| i0_reciprocal | 2442000.0000 |
| total_estimate | 0.8974 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 16.9 Å |
| skewness | 0.131 |
| kurtosis | -0.398 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 388100.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.902; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.994; Smooth: 0.961 |
