1cz3
DIHYDROFOLATE REDUCTASE FROM THERMOTOGA MARITIMA
SAXS Profile

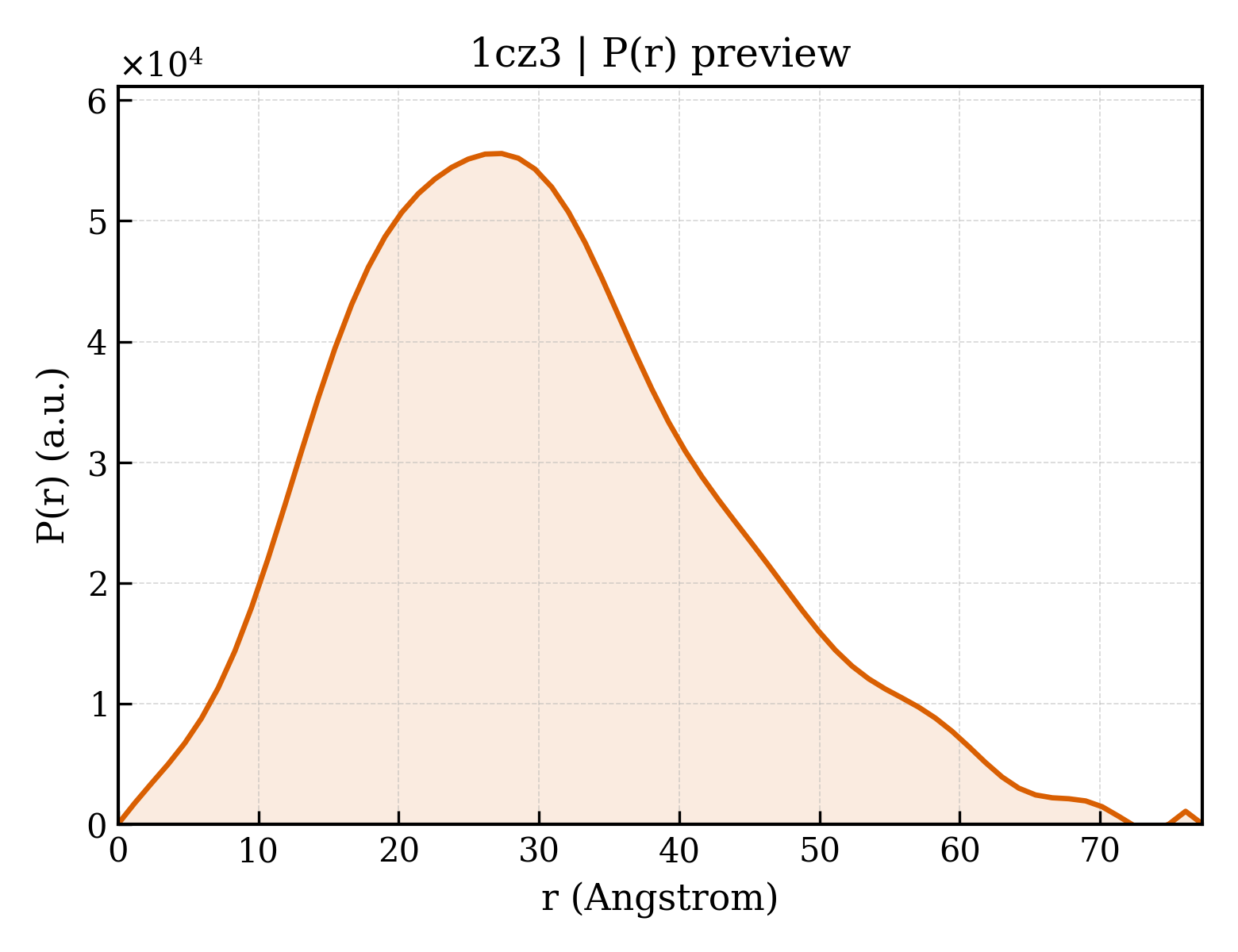

P(r) Distribution
1. Structure Basics
| entry_id | 1cz3 |
| deposition_date | 1999-09-01 |
| title | DIHYDROFOLATE REDUCTASE FROM THERMOTOGA MARITIMA |
| keywords | DIMER, HYPERTHERMOPHILE, oxidoreductase; OXIDOREDUCTASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 22.94 Å |
| rg_electron | 21.82 Å |
| i0 | 22737700.00 |
| molecular_weight | 38145.0 kDa |
| excluded_volume | 48624 ų |
| envelope_volume | 57713 ų |
| shell_volume | 22682 ų |
| envelope_diameter | 83.1 Å |
| shell_rg | 28.17 Å |
| envelope_rg | 22.12 Å |
| shape_rg | 21.81 Å |
| total_rg | 22.76 Å |
| total_atoms | 2695 |
| n_residues | 332 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 77.3 Å |
| rg_real | 22.99 Å |
| rg_real_error | 0.56 Å |
| i0_real | 2.2740e+07 |
| i0_real_error | 3.0320e+05 |
| rg_reciprocal | 22.98 Å |
| i0_reciprocal | 22740000.0000 |
| total_estimate | 0.7844 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 27.4 Å |
| skewness | 0.474 |
| kurtosis | -0.123 |
| angular_range | — – 0.3450 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 7157000.0000 |
| n_real_points | 66 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.739; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.976; Smooth: 0.000 |
