SAXSdb — 1czp

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

FERREDOXIN I

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 2–99	Not recorded	FES FE2/S2 (INORGANIC) CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；50 MM SODIUM SUCCINATE PH 5.5, 2.6 M AMMONIUM SULFATE, 1% MPD, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.17 Å R-free 0.184
2	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain B； UniProt 2–99	Not recorded	FES FE2/S2 (INORGANIC) CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；50 MM SODIUM SUCCINATE PH 5.5, 2.6 M AMMONIUM SULFATE, 1% MPD, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.17 Å R-free 0.184

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1CZP	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1EWY ANABAENA PCC7119 FERREDOXIN:FERREDOXIN-NADP+-REDUCTASE COMPLEX Deposited 2000-04-28	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–98（98 aa）	Not recorded	FAD FLAVIN-ADENINE DINUCLEOTIDE × 1 FES FE2/S2 (INORGANIC) CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；20-24% PEG 6000,10 mM MES pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.38 Å R-free 0.293
1QT9 OXIDIZED [2FE-2S] FERREDOXIN FROM ANABAENA PCC7119 Deposited 1999-07-01	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–99（98 aa）	Not recorded	FES FE2/S2 (INORGANIC) CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；50 MM SODIUM SUCCINATE PH 5.5, 2.6 M AMMONIUM SULFATE, 1% MPD AT 4 C, VAPOR DIFFUSION, HANGING DROP, temperature 277.0K	Resolution 1.30 Å R-free 0.191

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	FER1_ANASO
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–98； UniProt 2–99 Author chain B； PDBConstruct 1–98； UniProt 2–99

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1czp
Deposition date deposition_date	1999-09-06
Structure title title	ANABAENA PCC7119 [2FE-2S] FERREDOXIN IN THE REDUCED AND OXIXIZED STATE AT 1.17 A
Keywords keywords	[2FE-2S] PROTEIN, CRYSTAL REDUCED WITH DITHIONITE, ELECTRON TRANSPORT; ELECTRON TRANSPORT
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	20.62 Å
Radius of gyration Rg (electron density) rg_electron	20.11 Å
Forward intensity I(0) i0	9541520.00
Molecular weight molecular_weight	21717.0 kDa
Excluded volume excluded_volume	26481 Å³
Envelope volume envelope_volume	31316 Å³
Hydration-shell volume shell_volume	14130 Å³
Envelope diameter envelope_diameter	66.2 Å
Shell Rg shell_rg	24.39 Å
Envelope Rg envelope_rg	20.11 Å
Shape Rg shape_rg	20.14 Å
Total Rg total_rg	20.65 Å
Total atoms total_atoms	1508
Residues n_residues	196
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	67.0 Å
Rg (real space) rg_real	20.77 Å
Rg uncertainty (real space) rg_real_error	0.44 Å
I(0) (real space) i0_real	9.5420e+06
I(0) uncertainty (real space) i0_real_error	1.1870e+05
Rg (reciprocal space) rg_reciprocal	20.74 Å
I(0) (reciprocal space) i0_reciprocal	9541000.0000
Solution quality estimate total_estimate	0.8424
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	18.4 Å
Skewness Skewness skewness	0.439
Kurtosis Kurtosis kurtosis	-0.593
Angular range angular_range	— – 0.3850 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	2217000.0000
Real-space data points n_real_points	70
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.724; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.824; Smooth: 0.952

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

▼

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1czpa_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.4 — 2Fe-2S ferredoxin-like
Family Family family	d.15.4.1 — 2Fe-2S ferredoxin-related

Domain ID domain_id	d1czpb_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.4 — 2Fe-2S ferredoxin-like
Family Family family	d.15.4.1 — 2Fe-2S ferredoxin-related

CATH v4.4 (2 domains)

Domain ID domain_id	1czpA00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	30 — Beta-grasp domain

Domain ID domain_id	1czpB00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	30 — Beta-grasp domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	37.220 Å
Unit-cell length b length_b	37.370 Å
Unit-cell length c length_c	146.600 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.170 Å
Low-resolution limit resolution_low	15.000 Å
R factor r_factor	0.1430
R_work r_work	0.1400
R_free r_free	0.1837

Description description	FERREDOXIN I
Molecular weight formula_weight	10705.6 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	1948

ANABAENA PCC7119 [2FE-2S] FERREDOXIN IN THE REDUCED AND OXIXIZED STATE AT 1.17 A

1. Protein Identity and Related Structures Protein Identity & Related Structures

FERREDOXIN I

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

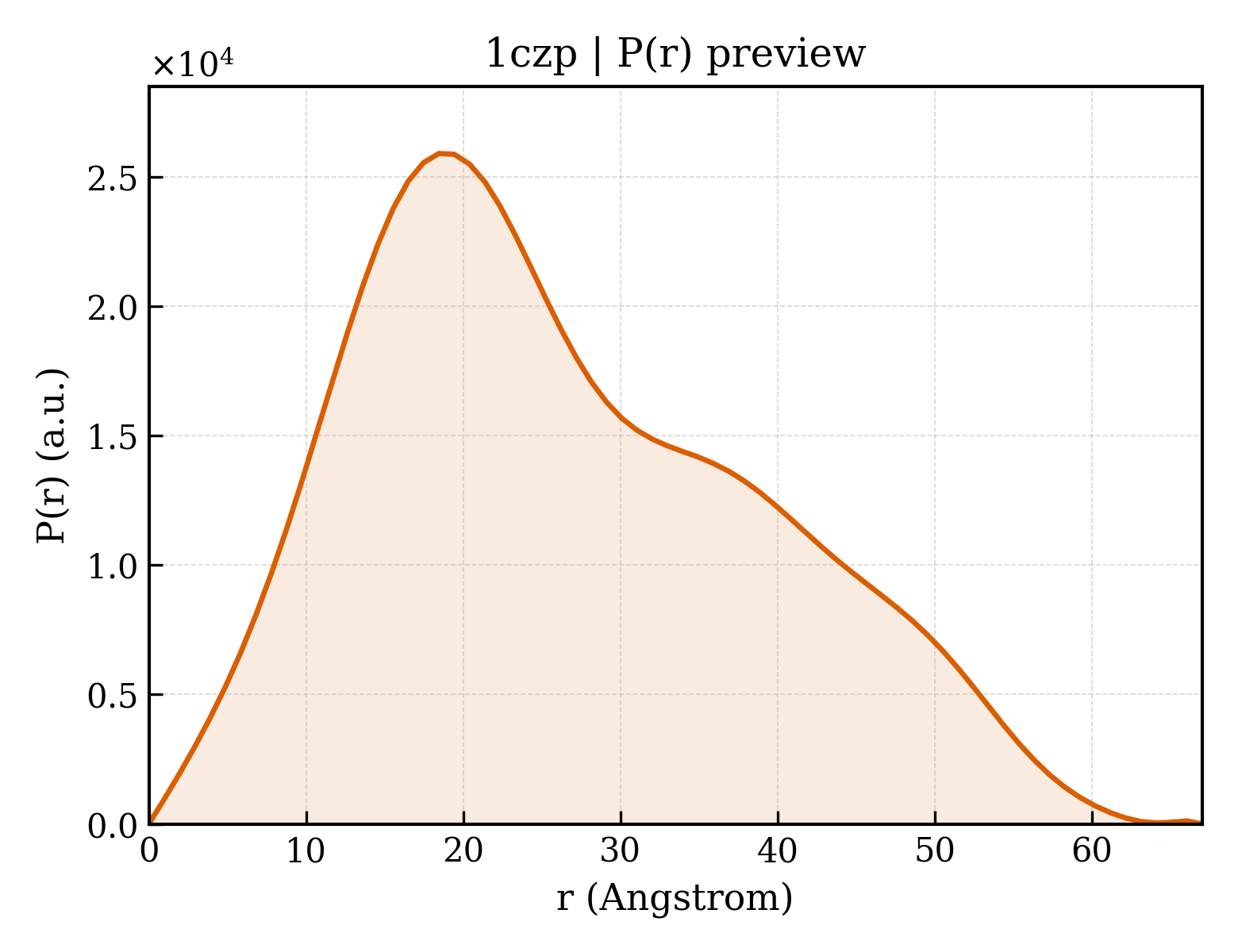

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 water

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

CATH v4.4 (2 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)

Description description	FE2/S2 (INORGANIC) CLUSTER
Molecular weight formula_weight	175.8 kDa
Source method src_method	syn
Copy count entity_count	2

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	369

fit	/app/data/saxs_computation/cz/1czp/1czp.fit
pddf	/app/data/pr_computation/cz/1czp/1czp.pr.out
profile	/app/data/saxs_computation/cz/1czp/1czp.dat
