1czr
COMPARISONS OF WILD TYPE AND MUTANT FLAVODOXINS FROM ANACYSTIS NIDULANS. STRUCTURAL DETERMINANTS OF THE REDOX POTENTIALS.
SAXS Profile

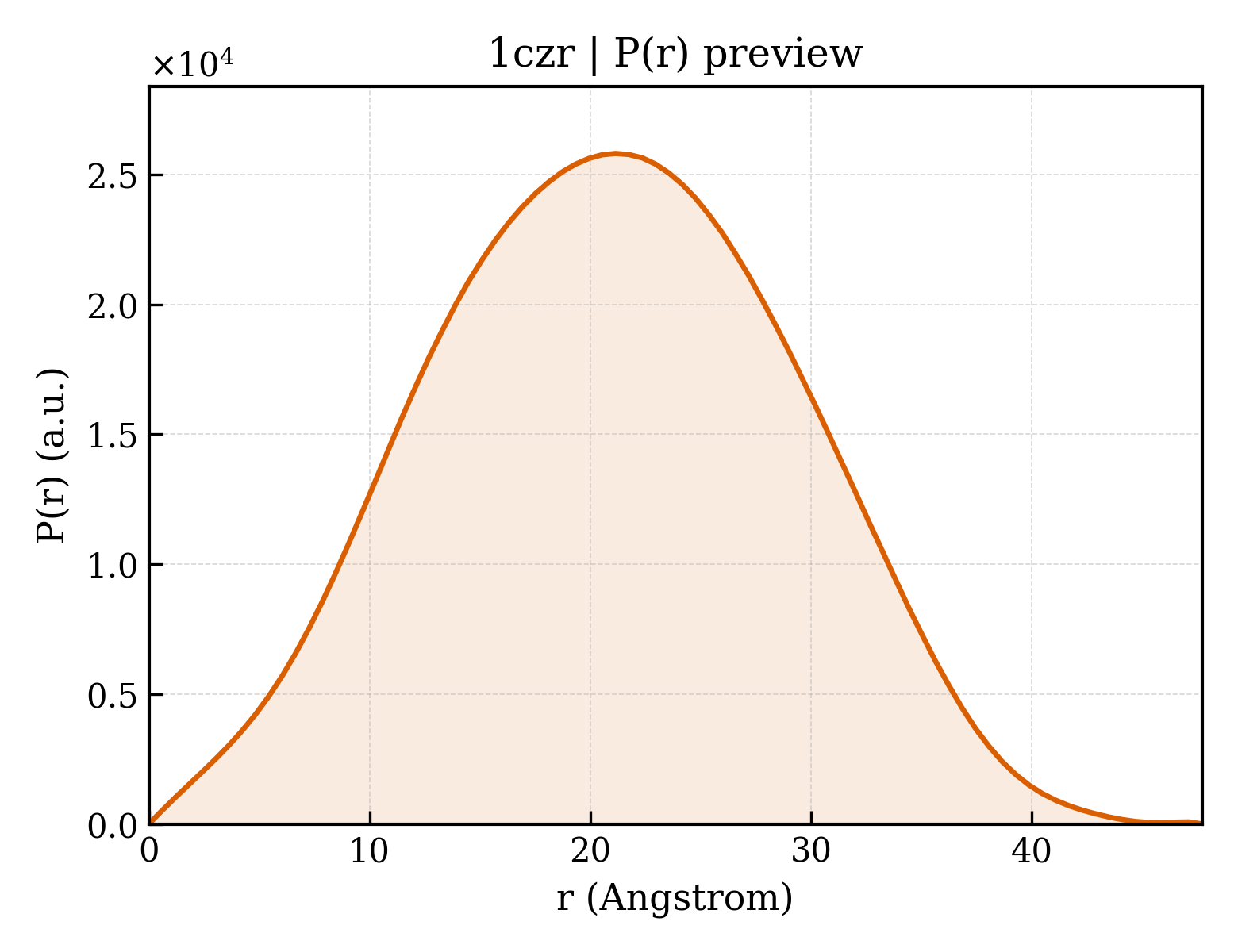

P(r) Distribution
1. Structure Basics
| entry_id | 1czr |
| deposition_date | 1999-09-07 |
| title | COMPARISONS OF WILD TYPE AND MUTANT FLAVODOXINS FROM ANACYSTIS NIDULANS. STRUCTURAL DETERMINANTS OF THE REDOX POTENTIALS. |
| keywords | FLAVODOXIN, REDOX POTENTIAL, FMN BINDING, ELECTRON TRANSPORT; ELECTRON TRANSPORT |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 16.06 Å |
| rg_electron | 14.58 Å |
| i0 | 7151600.00 |
| molecular_weight | 19086.0 kDa |
| excluded_volume | 23599 ų |
| envelope_volume | 25625 ų |
| shell_volume | 14498 ų |
| envelope_diameter | 45.7 Å |
| shell_rg | 20.84 Å |
| envelope_rg | 14.83 Å |
| shape_rg | 14.57 Å |
| total_rg | 15.70 Å |
| total_atoms | 1349 |
| n_residues | 169 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 47.7 Å |
| rg_real | 15.91 Å |
| rg_real_error | 0.17 Å |
| i0_real | 7.1520e+06 |
| i0_real_error | 7.1230e+04 |
| rg_reciprocal | 15.93 Å |
| i0_reciprocal | 7152000.0000 |
| total_estimate | 0.7733 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 21.1 Å |
| skewness | 0.026 |
| kurtosis | -0.498 |
| angular_range | — – 0.4950 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1274000.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.935; Stabil: 1.000; Sysdev: 0.424; Positv: 1.000; Valcen: 0.975; Smooth: 0.995 |
