1d1w
BOVINE ENDOTHELIAL NITRIC OXIDE SYNTHASE HEME DOMAIN COMPLEXED WITH 2-AMINOTHIAZOLINE (H4B BOUND)
SAXS Profile

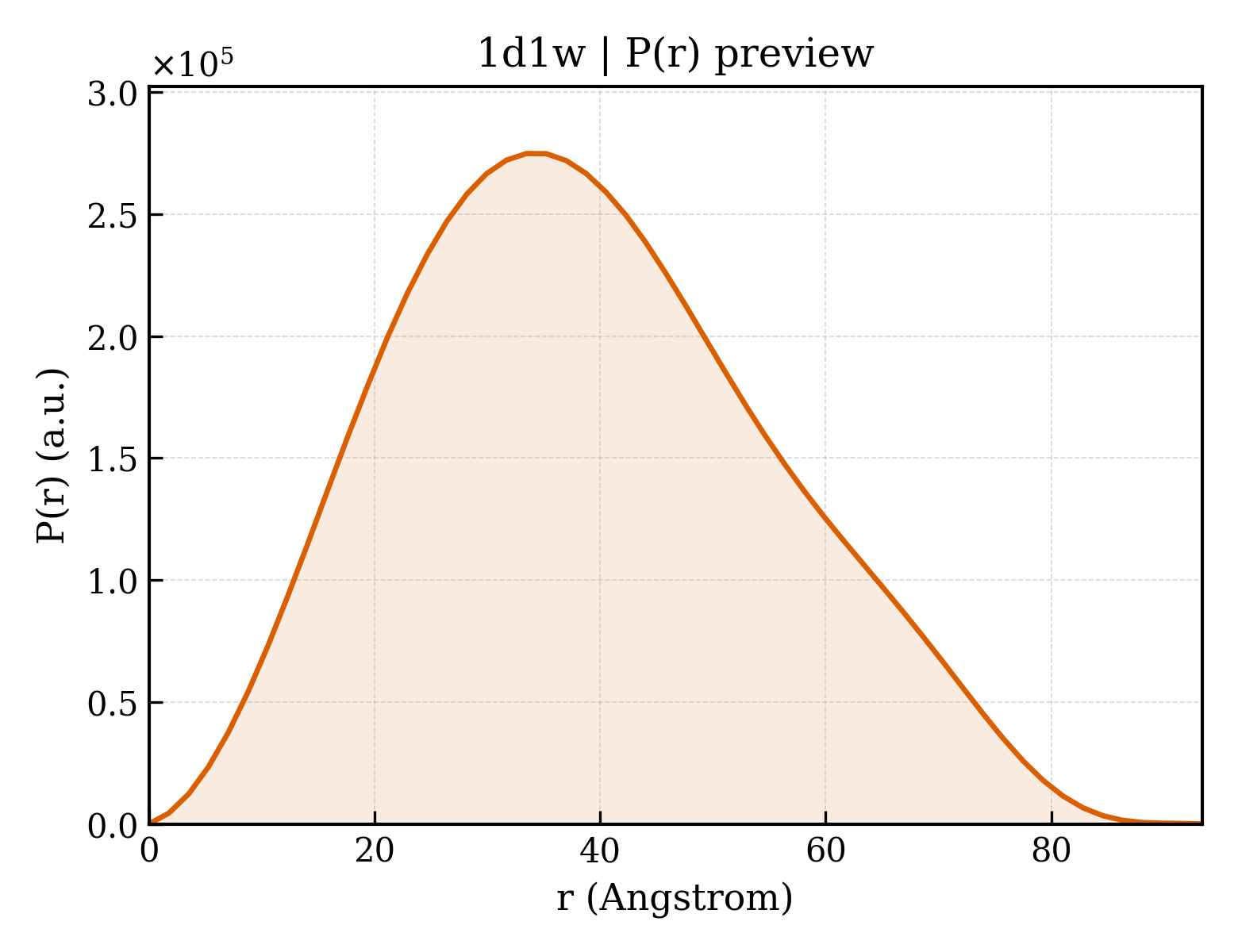

P(r) Distribution
1. Structure Basics
| entry_id | 1d1w |
| deposition_date | 1999-09-21 |
| title | BOVINE ENDOTHELIAL NITRIC OXIDE SYNTHASE HEME DOMAIN COMPLEXED WITH 2-AMINOTHIAZOLINE (H4B BOUND) |
| keywords | ALPHA-BETA FOLD, OXIDOREDUCTASE; OXIDOREDUCTASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 29.88 Å |
| rg_electron | 29.02 Å |
| i0 | 149059000.00 |
| molecular_weight | 96244.0 kDa |
| excluded_volume | 119960 ų |
| envelope_volume | 143710 ų |
| shell_volume | 40692 ų |
| envelope_diameter | 93.8 Å |
| shell_rg | 37.20 Å |
| envelope_rg | 29.05 Å |
| shape_rg | 29.04 Å |
| total_rg | 29.65 Å |
| total_atoms | 6772 |
| n_residues | 830 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 93.4 Å |
| rg_real | 29.82 Å |
| rg_real_error | 0.42 Å |
| i0_real | 1.4910e+08 |
| i0_real_error | 1.9330e+06 |
| rg_reciprocal | 29.85 Å |
| i0_reciprocal | 149100000.0000 |
| total_estimate | 0.6829 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 1 |
| r_peak_primary | 33.5 Å |
| skewness | 0.279 |
| kurtosis | -0.513 |
| angular_range | — – 0.2650 Å−1 |
| current_alpha | 0.0002 |
| highest_alpha | 45020000.0000 |
| n_real_points | 54 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.927; Stabil: 1.000; Sysdev: 0.050; Positv: 1.000; Valcen: 1.000; Smooth: 0.944 |
