1d2e

CRYSTAL STRUCTURE OF MITOCHONDRIAL EF-TU IN COMPLEX WITH GDP

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ELONGATION FACTOR TU (EF-TU)

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	MAGNESIUM ION × 4 GUANOSINE-5'-DIPHOSPHATE × 4 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	EFTU_BOVIN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–397； UniProt 55–451 Author chain B； PDBConstruct 1–397； UniProt 55–451 Author chain C； PDBConstruct 1–397； UniProt 55–451 Author chain D； PDBConstruct 1–397； UniProt 55–451

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1d2e
Deposition date deposition_date	1999-09-23
Structure title title	CRYSTAL STRUCTURE OF MITOCHONDRIAL EF-TU IN COMPLEX WITH GDP
Keywords keywords	G-PROTEIN, BETA-BARREL, RNA BINDING PROTEIN; RNA BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1d2e__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1d2e__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

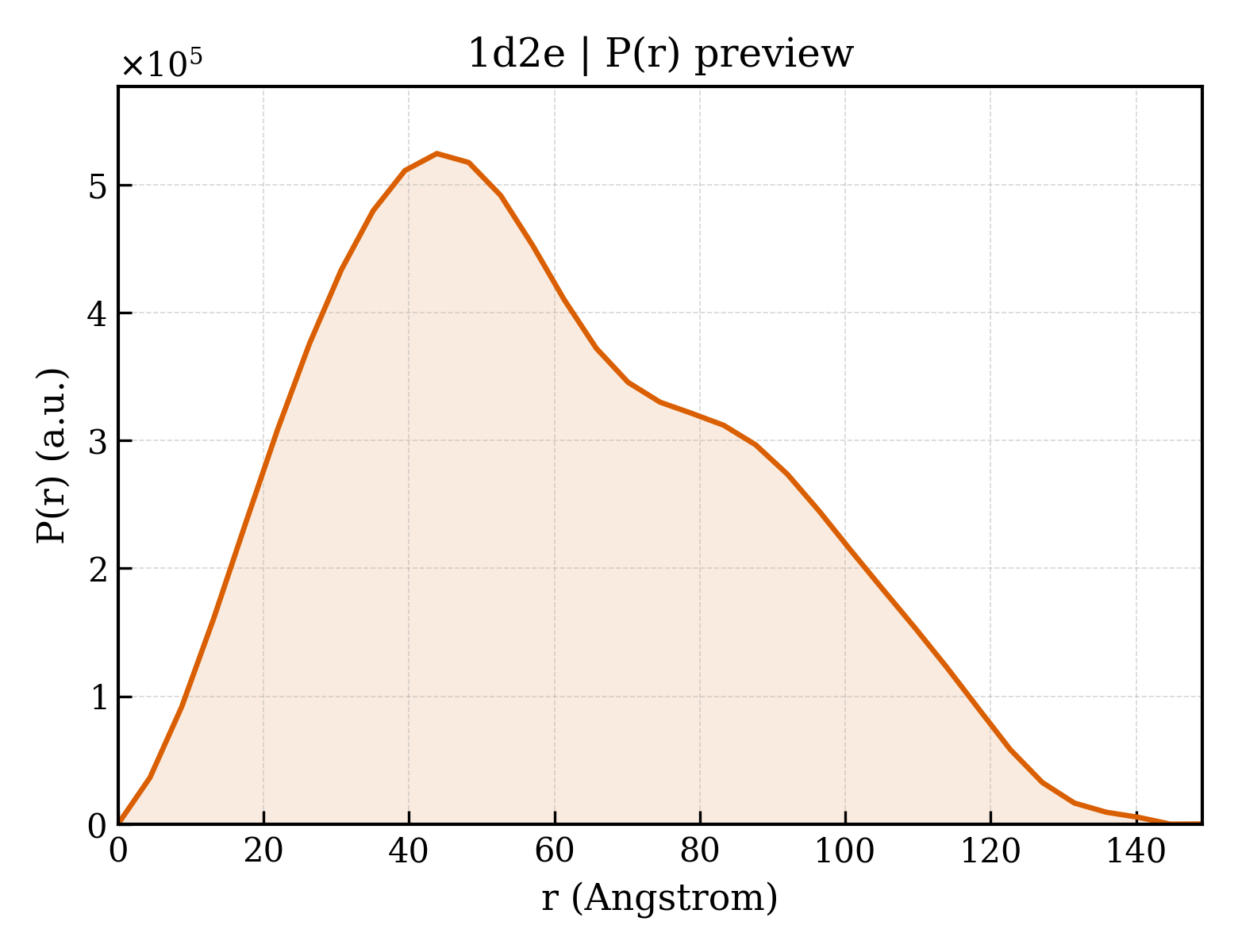

1d2e__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	45.99 Å
Rg (electron density)	45.98 Å
Total Rg	46.13 Å
Atom count	12396
Residues	1588
Excluded volume	221240 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1d2e__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	ELONGATION FACTOR TU (EF-TU)
Molecular weight formula_weight	43791.4 kDa
Source method src_method	nat
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	13597

KPHVNVGTIGHVDHGKTTLTAAITKILAEGGGAKFKKYEEIDNAPEERARGITINAAHVEYSTAARHYAHTDCPGHADYVKNMITGTAPLDGCILVVAANDGPMPQTREHLLLARQIGVEHVVVYVNKADAVQDSEMVELVELEIRELLTEFGYKGEETPIIVGSALCALEQRDPELGLKSVQKLLDAVDTYIPVPTRDLEKPFLLPVESVYSIPGRGTVVTGTLERGILKKGDECEFLGHSKNIRTVVTGIEMFHKSLDRAEAGDNLGALVRGLKREDLRRGLVMAKPGSIQPHQKVEAQVYILTKEEGGRHKPFVSHFMPVMFSLTWDMACRIILPPGKELAMPGEDLKLTLILRQPMILEKGQRFTLRDGNRTIGTGLVTDTPAMTEEDKNIKW

Entity 2 Entity 2 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 non-polymer

Description description	GUANOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	443.2 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1201

▼

6. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (12 domains)

Domain ID domain_id	d1d2ea1
Class class	b — All beta proteins
Fold Fold fold	b.43 — Reductase/isomerase/elongation factor common domain
Superfamily Superfamily superfamily	b.43.3 — Translation proteins
Family Family family	b.43.3.1 — Elongation factors

Domain ID domain_id	d1d2ea2
Class class	b — All beta proteins
Fold Fold fold	b.44 — Elongation factor/aminomethyltransferase common domain
Superfamily Superfamily superfamily	b.44.1 — EF-Tu/eEF-1alpha/eIF2-gamma C-terminal domain
Family Family family	b.44.1.1 — EF-Tu/eEF-1alpha/eIF2-gamma C-terminal domain

Domain ID domain_id	d1d2ea3
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.8 — G proteins

Domain ID domain_id	d1d2eb1
Class class	b — All beta proteins
Fold Fold fold	b.43 — Reductase/isomerase/elongation factor common domain
Superfamily Superfamily superfamily	b.43.3 — Translation proteins
Family Family family	b.43.3.1 — Elongation factors

Domain ID domain_id	d1d2eb2
Class class	b — All beta proteins
Fold Fold fold	b.44 — Elongation factor/aminomethyltransferase common domain
Superfamily Superfamily superfamily	b.44.1 — EF-Tu/eEF-1alpha/eIF2-gamma C-terminal domain
Family Family family	b.44.1.1 — EF-Tu/eEF-1alpha/eIF2-gamma C-terminal domain

Domain ID domain_id	d1d2eb3
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.8 — G proteins

Domain ID domain_id	d1d2ec1
Class class	b — All beta proteins
Fold Fold fold	b.43 — Reductase/isomerase/elongation factor common domain
Superfamily Superfamily superfamily	b.43.3 — Translation proteins
Family Family family	b.43.3.1 — Elongation factors

Domain ID domain_id	d1d2ec2
Class class	b — All beta proteins
Fold Fold fold	b.44 — Elongation factor/aminomethyltransferase common domain
Superfamily Superfamily superfamily	b.44.1 — EF-Tu/eEF-1alpha/eIF2-gamma C-terminal domain
Family Family family	b.44.1.1 — EF-Tu/eEF-1alpha/eIF2-gamma C-terminal domain

Domain ID domain_id	d1d2ec3
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.8 — G proteins

Domain ID domain_id	d1d2ed1
Class class	b — All beta proteins
Fold Fold fold	b.43 — Reductase/isomerase/elongation factor common domain
Superfamily Superfamily superfamily	b.43.3 — Translation proteins
Family Family family	b.43.3.1 — Elongation factors

Domain ID domain_id	d1d2ed2
Class class	b — All beta proteins
Fold Fold fold	b.44 — Elongation factor/aminomethyltransferase common domain
Superfamily Superfamily superfamily	b.44.1 — EF-Tu/eEF-1alpha/eIF2-gamma C-terminal domain
Family Family family	b.44.1.1 — EF-Tu/eEF-1alpha/eIF2-gamma C-terminal domain

Domain ID domain_id	d1d2ed3
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.8 — G proteins

CATH v4.4 (12 domains)

Domain ID domain_id	1d2eA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1d2eA02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	10 — Translation factors

Domain ID domain_id	1d2eA03
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	10 — Translation factors

Domain ID domain_id	1d2eB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1d2eB02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	10 — Translation factors

Domain ID domain_id	1d2eB03
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	10 — Translation factors

Domain ID domain_id	1d2eC01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1d2eC02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	10 — Translation factors

Domain ID domain_id	1d2eC03
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	10 — Translation factors

Domain ID domain_id	1d2eD01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1d2eD02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	10 — Translation factors

Domain ID domain_id	1d2eD03
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	10 — Translation factors

▶

Unit-cell length a length_a	59.090 Å
Unit-cell length b length_b	119.780 Å
Unit-cell length c length_c	128.890 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	96.97 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.940 Å
Low-resolution limit resolution_low	34.700 Å
R factor r_factor	0.2370
R_work r_work	0.2370
R_free r_free	0.2570
