1dbw
CRYSTAL STRUCTURE OF FIXJ-N
SAXS Profile

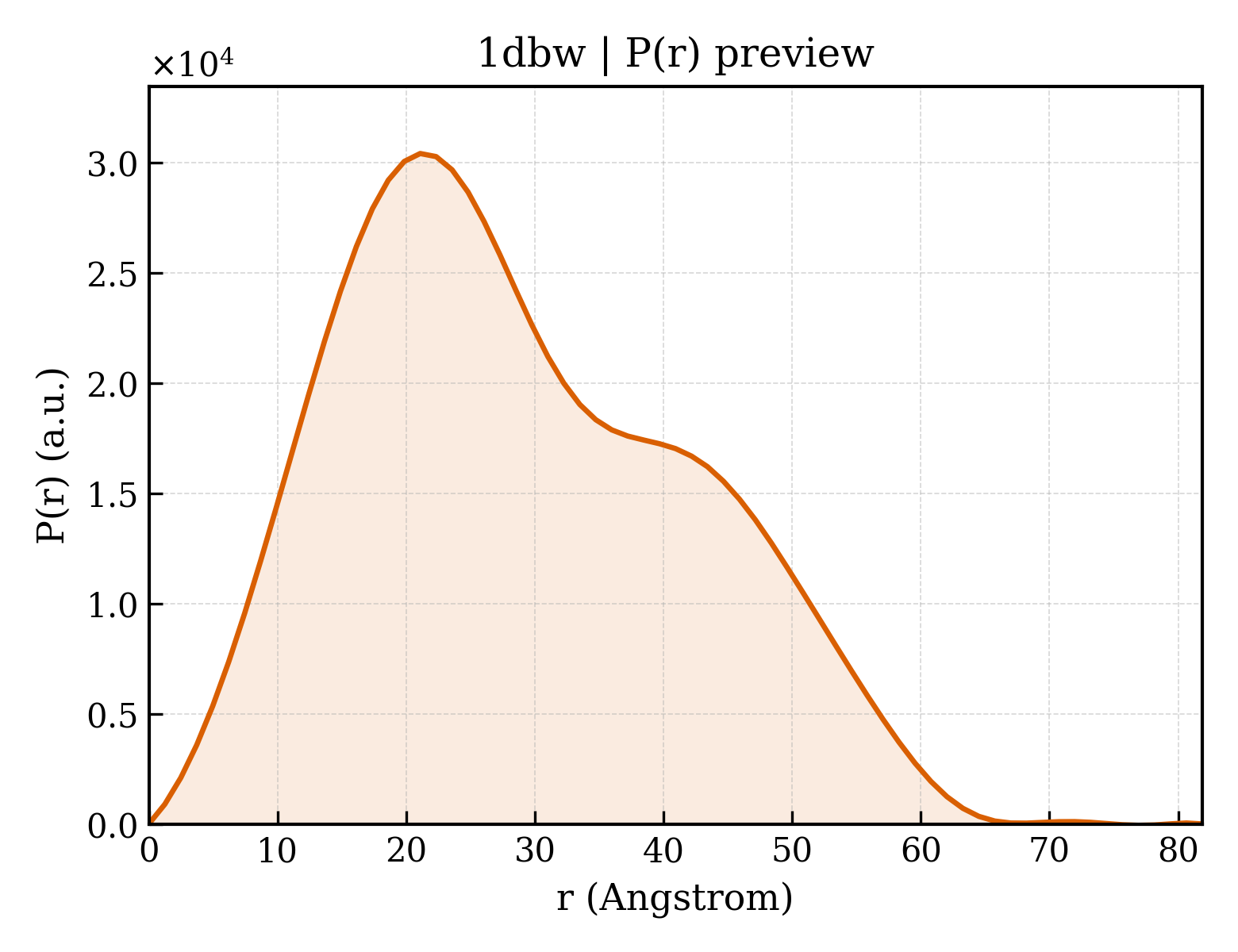

P(r) Distribution
1. Structure Basics
| entry_id | 1dbw |
| deposition_date | 1999-11-03 |
| title | CRYSTAL STRUCTURE OF FIXJ-N |
| keywords | DOUBLY WOUND FIVE-STRANDED BETA/ALPHA FOLD, NITROGEN FIXATION REGULATION, TRANSCRIPTION; TRANSCRIPTION |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 22.25 Å |
| rg_electron | 21.59 Å |
| i0 | 12375400.00 |
| molecular_weight | 27023.0 kDa |
| excluded_volume | 34033 ų |
| envelope_volume | 41957 ų |
| shell_volume | 17003 ų |
| envelope_diameter | 71.4 Å |
| shell_rg | 26.86 Å |
| envelope_rg | 21.65 Å |
| shape_rg | 21.56 Å |
| total_rg | 22.40 Å |
| total_atoms | 1892 |
| n_residues | 248 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 81.9 Å |
| rg_real | 22.33 Å |
| rg_real_error | 0.70 Å |
| i0_real | 1.2380e+07 |
| i0_real_error | 1.6730e+05 |
| rg_reciprocal | 22.31 Å |
| i0_reciprocal | 12380000.0000 |
| total_estimate | 0.7136 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 3 |
| r_peak_primary | 21.1 Å |
| skewness | 0.361 |
| kurtosis | -0.669 |
| angular_range | — – 0.3550 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 6585000.0000 |
| n_real_points | 67 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.522; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.705; Smooth: 0.000 |
