1dc8
;STRUCTURE OF A TRANSIENTLY PHOSPHORYLATED "SWITCH" IN BACTERIAL SIGNAL TRANSDUCTION ;
SAXS Profile

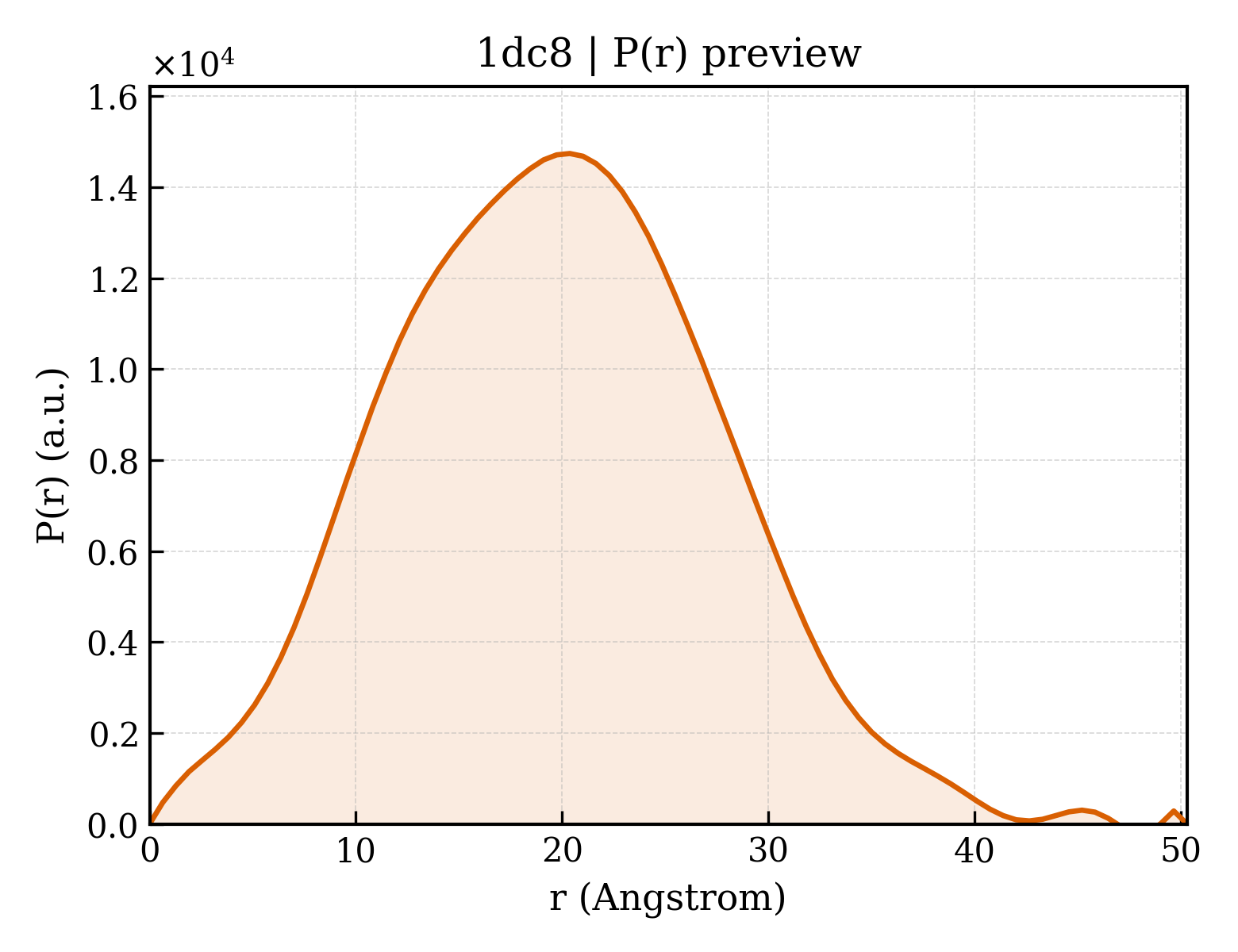

P(r) Distribution
1. Structure Basics
| entry_id | 1dc8 |
| deposition_date | 1999-11-04 |
| title | ;STRUCTURE OF A TRANSIENTLY PHOSPHORYLATED "SWITCH" IN BACTERIAL SIGNAL TRANSDUCTION ; |
| keywords | RECEIVER DOMAIN, PHOSPHORYLATION, SIGNAL TRANSDUCTION, CONFORMATIONAL REARRANGEMENT, TWO-COMPONENT SYSTEM, SIGNALING PROTEIN; SIGNALING PROTEIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.01 Å |
| rg_electron | 13.54 Å |
| i0 | 3754360.00 |
| molecular_weight | 13601.0 kDa |
| excluded_volume | 17084 ų |
| envelope_volume | 19610 ų |
| shell_volume | 12133 ų |
| envelope_diameter | 52.2 Å |
| shell_rg | 19.53 Å |
| envelope_rg | 14.13 Å |
| shape_rg | 13.49 Å |
| total_rg | 15.02 Å |
| total_atoms | 1911 |
| n_residues | 123 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 50.3 Å |
| rg_real | 14.90 Å |
| rg_real_error | 0.35 Å |
| i0_real | 3.7540e+06 |
| i0_real_error | 3.8460e+04 |
| rg_reciprocal | 14.91 Å |
| i0_reciprocal | 3754000.0000 |
| total_estimate | 0.7765 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 20.4 Å |
| skewness | 0.149 |
| kurtosis | -0.216 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1327000.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.697; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.000 |
