1dcp
DCOH, A BIFUNCTIONAL PROTEIN-BINDING TRANSCRIPTIONAL COACTIVATOR, COMPLEXED WITH BIOPTERIN
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1dcp |
| deposition_date | 1996-05-16 |
| title | DCOH, A BIFUNCTIONAL PROTEIN-BINDING TRANSCRIPTIONAL COACTIVATOR, COMPLEXED WITH BIOPTERIN |
| keywords | ;TRANSCRIPTIONAL STIMULATOR, DIMERIZATION COFACTOR, DEHYDRATASE, 4A-CARBINOLAMINE DEHYDRATASE, TRANSREGULATOR OF HOMEODOMAIN PROTEINS ;; TRANSCRIPTIONAL STIMULATOR |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 35.49 Å |
| rg_electron | 34.86 Å |
| i0 | 141616000.00 |
| molecular_weight | 93619.0 kDa |
| excluded_volume | 116140 ų |
| envelope_volume | 149110 ų |
| shell_volume | 36494 ų |
| envelope_diameter | 117.0 Å |
| shell_rg | 40.25 Å |
| envelope_rg | 34.64 Å |
| shape_rg | 34.83 Å |
| total_rg | 35.31 Å |
| total_atoms | 6623 |
| n_residues | 792 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

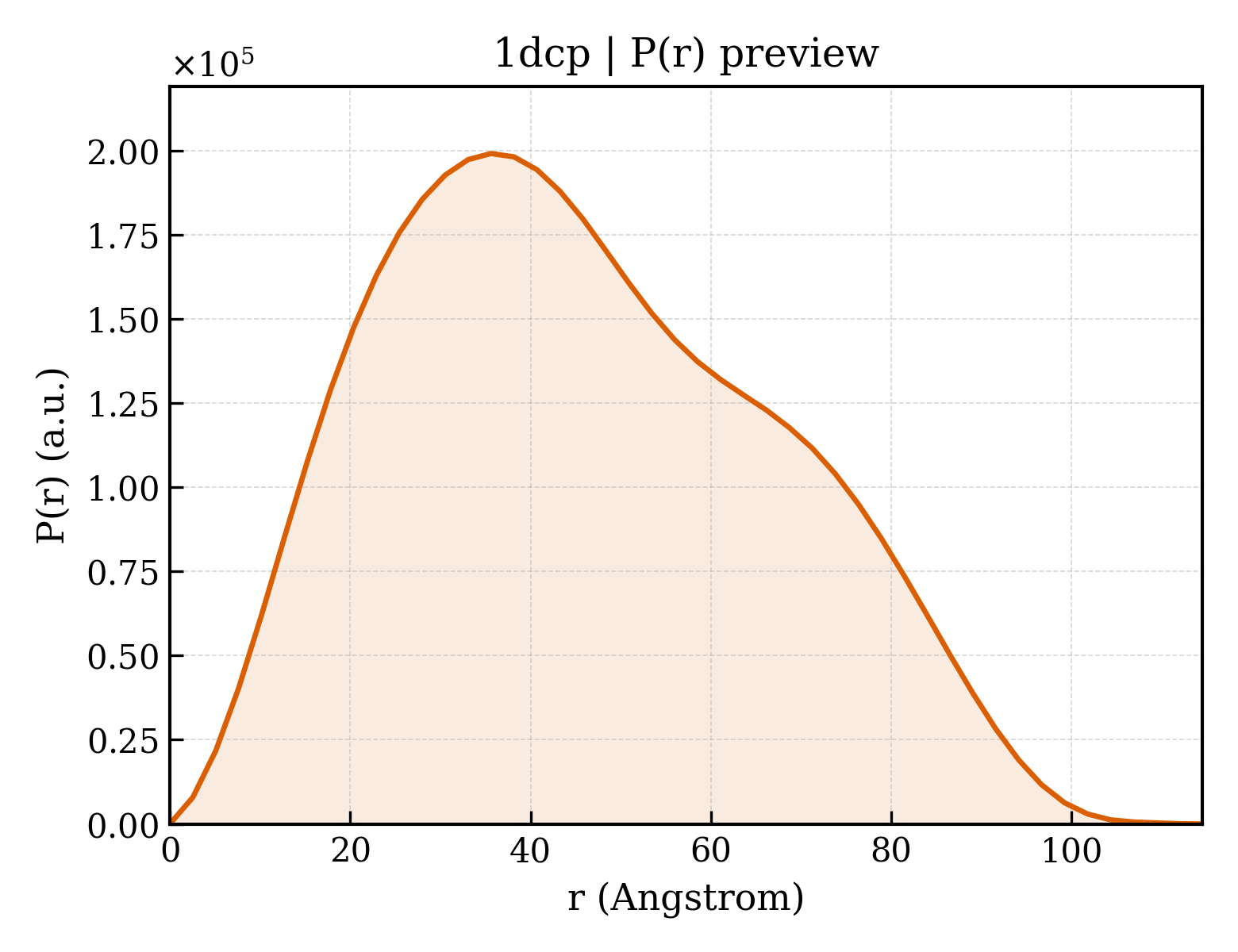

3. P(r) Analysis (GNOM)
| dmax | 114.5 Å |
| rg_real | 35.57 Å |
| rg_real_error | 0.88 Å |
| i0_real | 1.4160e+08 |
| i0_real_error | 2.2950e+06 |
| rg_reciprocal | 35.53 Å |
| i0_reciprocal | 141600000.0000 |
| total_estimate | 0.8948 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 35.6 Å |
| skewness | 0.292 |
| kurtosis | -0.714 |
| angular_range | — – 0.2250 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 11390000.0000 |
| n_real_points | 46 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.916; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.942; Smooth: 0.939 |
