1dcy
CRYSTAL STRUCTURE OF HUMAN S-PLA2 IN COMPLEX WITH INDOLE 3 ACTIVE SITE INHIBITOR
SAXS Profile

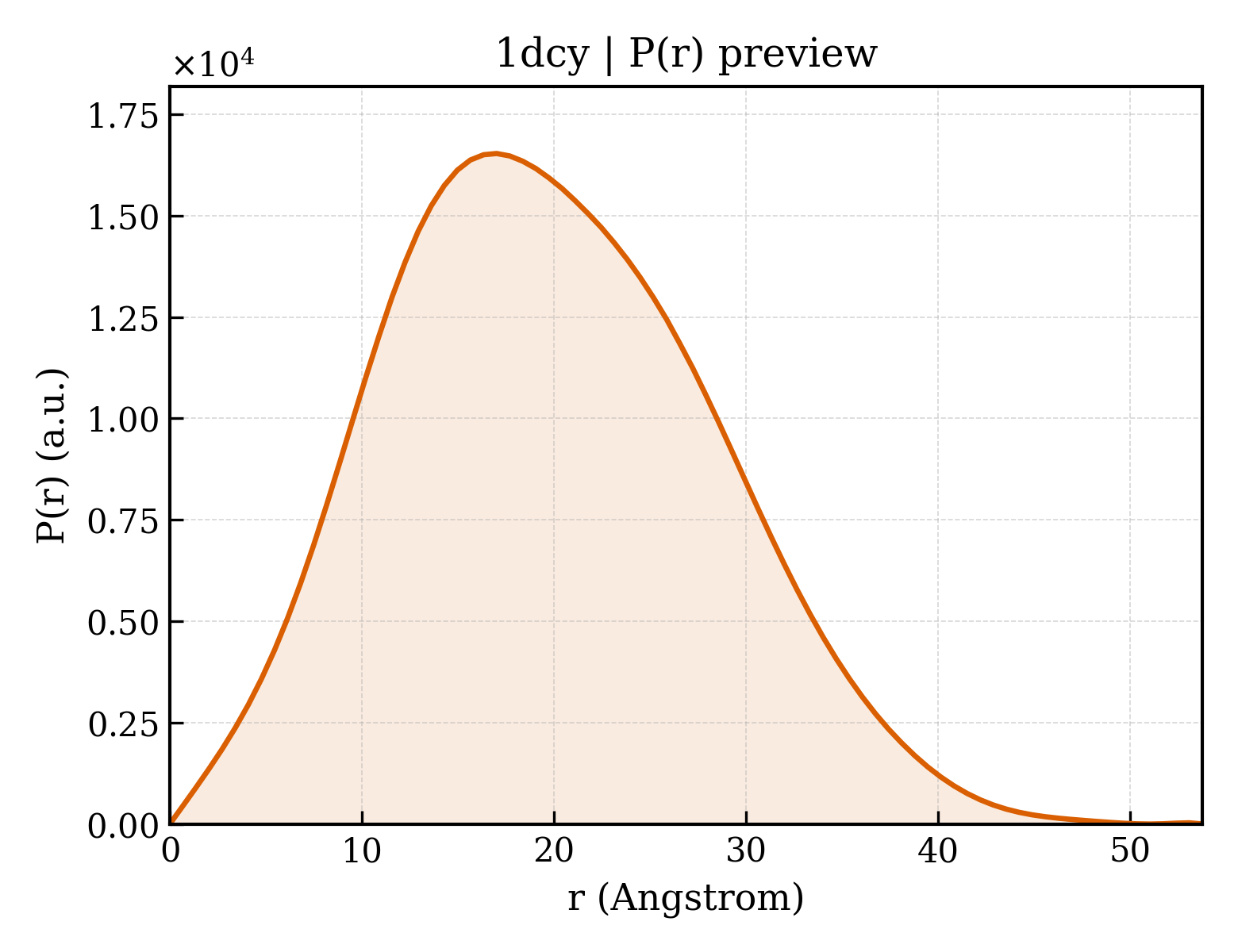

P(r) Distribution
1. Structure Basics
| entry_id | 1dcy |
| deposition_date | 1999-11-05 |
| title | CRYSTAL STRUCTURE OF HUMAN S-PLA2 IN COMPLEX WITH INDOLE 3 ACTIVE SITE INHIBITOR |
| keywords | S-PLA2; STRUCTURE-BASED DRUG DESIGN, HYDROLASE/HYDROLASE INHIBITOR, HYDROLASE-HYDROLASE INHIBITOR complex; HYDROLASE/HYDROLASE INHIBITOR |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.26 Å |
| rg_electron | 14.30 Å |
| i0 | 4624160.00 |
| molecular_weight | 14323.0 kDa |
| excluded_volume | 17475 ų |
| envelope_volume | 19592 ų |
| shell_volume | 11834 ų |
| envelope_diameter | 52.7 Å |
| shell_rg | 19.82 Å |
| envelope_rg | 14.67 Å |
| shape_rg | 14.27 Å |
| total_rg | 15.41 Å |
| total_atoms | 991 |
| n_residues | 124 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 53.8 Å |
| rg_real | 15.22 Å |
| rg_real_error | 0.38 Å |
| i0_real | 4.6240e+06 |
| i0_real_error | 5.4030e+04 |
| rg_reciprocal | 15.22 Å |
| i0_reciprocal | 4624000.0000 |
| total_estimate | 0.7823 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 17.0 Å |
| skewness | 0.275 |
| kurtosis | -0.341 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1190000.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.744; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.935; Smooth: 0.000 |
