1ddb
STRUCTURE OF MOUSE BID, NMR, 20 STRUCTURES

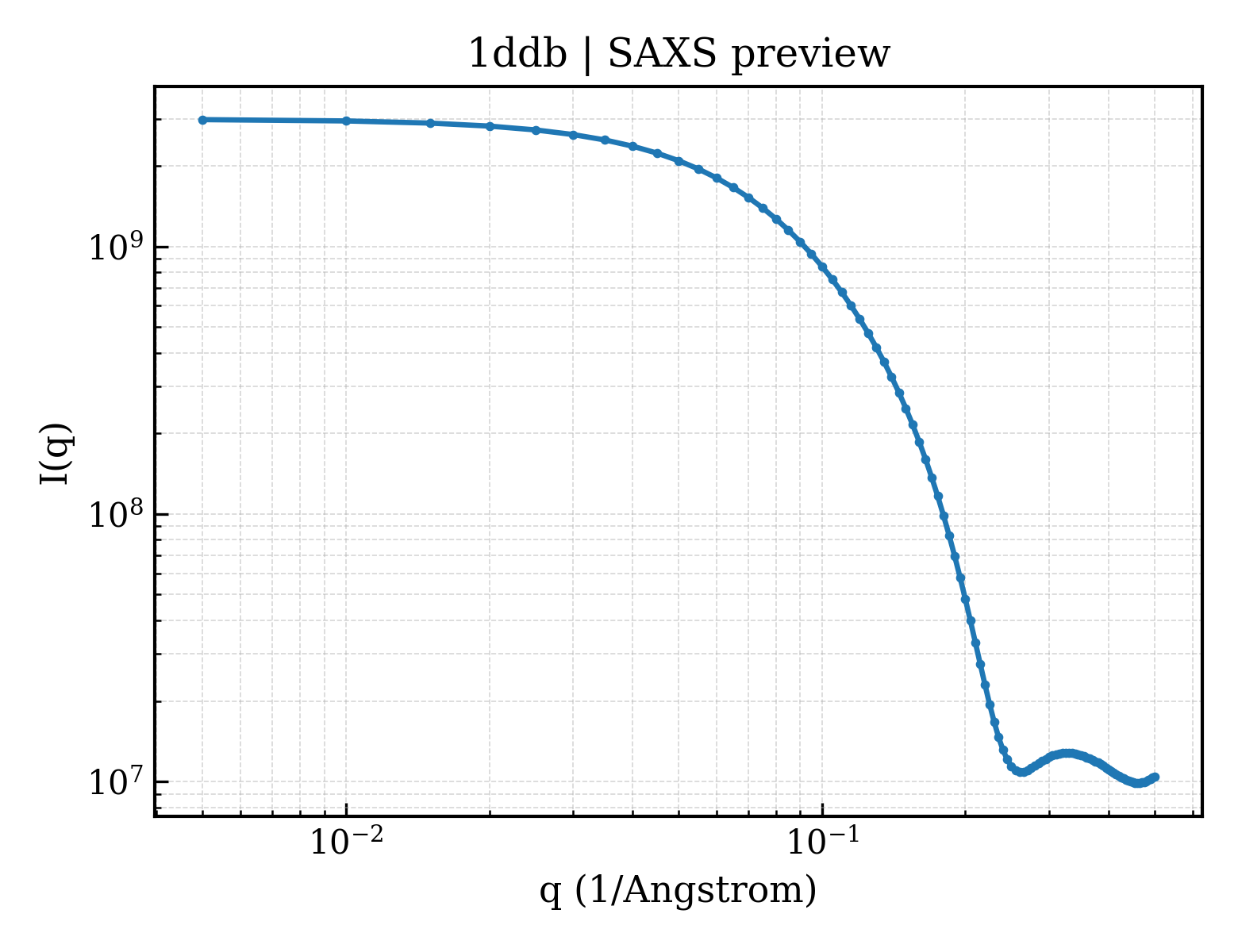

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1ddb |
| deposition_date | 1999-02-19 |
| title | STRUCTURE OF MOUSE BID, NMR, 20 STRUCTURES |
| keywords | APOPTOSIS, PROGRAMMED CELL DEATH, BCL-2 FAMILY, BH3 DOMAIN; APOPTOSIS |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 20.79 Å |
| rg_electron | 19.93 Å |
| i0 | 2986300000.00 |
| molecular_weight | 438410.0 kDa |
| excluded_volume | 539600 ų |
| envelope_volume | 182570 ų |
| shell_volume | 46761 ų |
| envelope_diameter | 113.3 Å |
| shell_rg | 39.58 Å |
| envelope_rg | 32.62 Å |
| shape_rg | 19.94 Å |
| total_rg | 20.43 Å |
| total_atoms | 59820 |
| n_residues | 3900 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

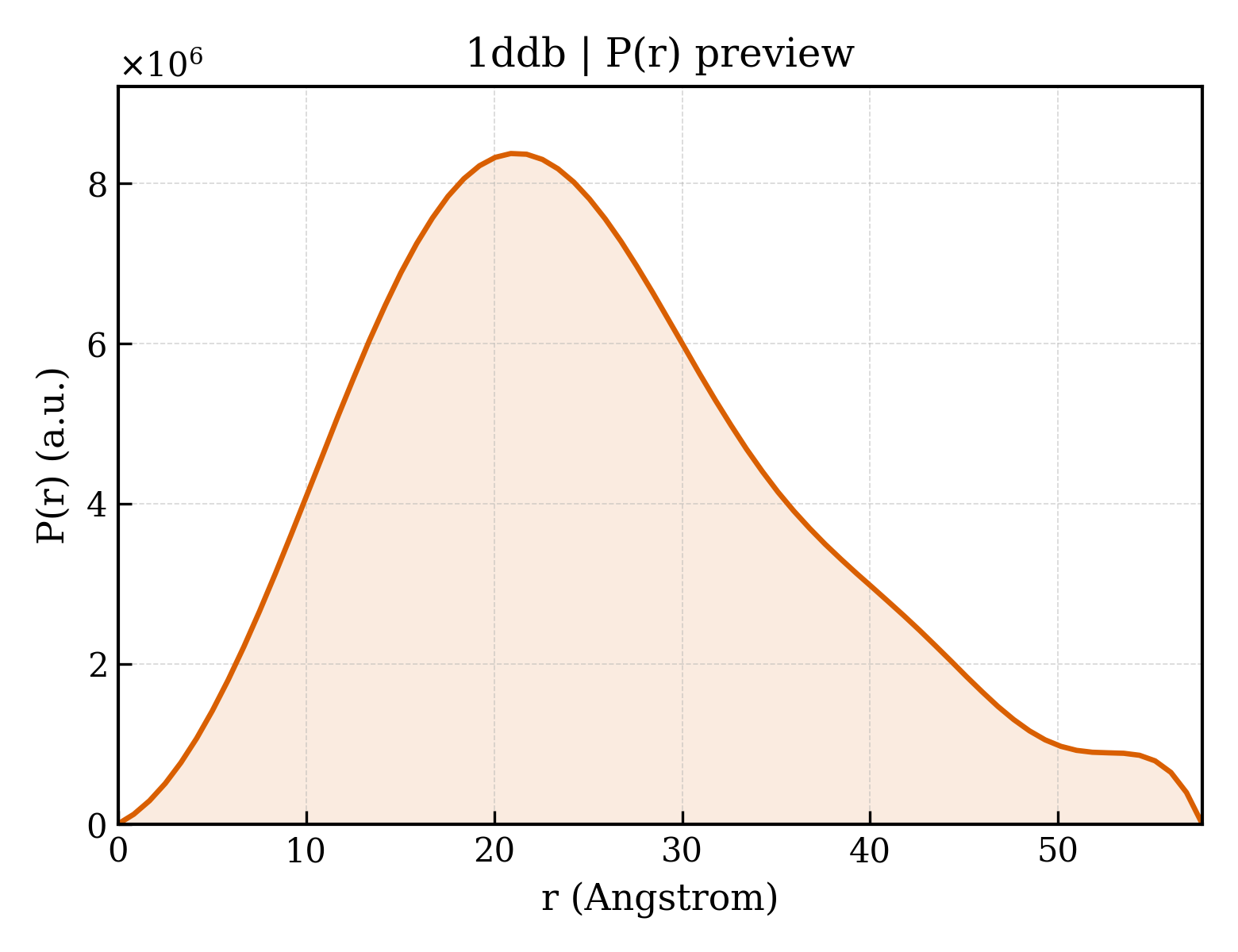

3. P(r) Analysis (GNOM)
| dmax | 57.7 Å |
| rg_real | 19.34 Å |
| rg_real_error | 0.11 Å |
| i0_real | 2.8430e+09 |
| i0_real_error | 2.7000e+07 |
| rg_reciprocal | 21.07 Å |
| i0_reciprocal | 2986000000.0000 |
| total_estimate | 0.6705 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 1 |
| r_peak_primary | 20.9 Å |
| skewness | 0.489 |
| kurtosis | -0.195 |
| angular_range | — – 0.3800 Å−1 |
| current_alpha | 2.3930 |
| highest_alpha | 4184000.0000 |
| n_real_points | 70 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.003; Oscil: 0.918; Stabil: 0.990; Sysdev: 0.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.000 |
