1de2
NMR STRUCTURES OF REDUCED BACTERIOPHAGE T4 GLUTAREDOXIN

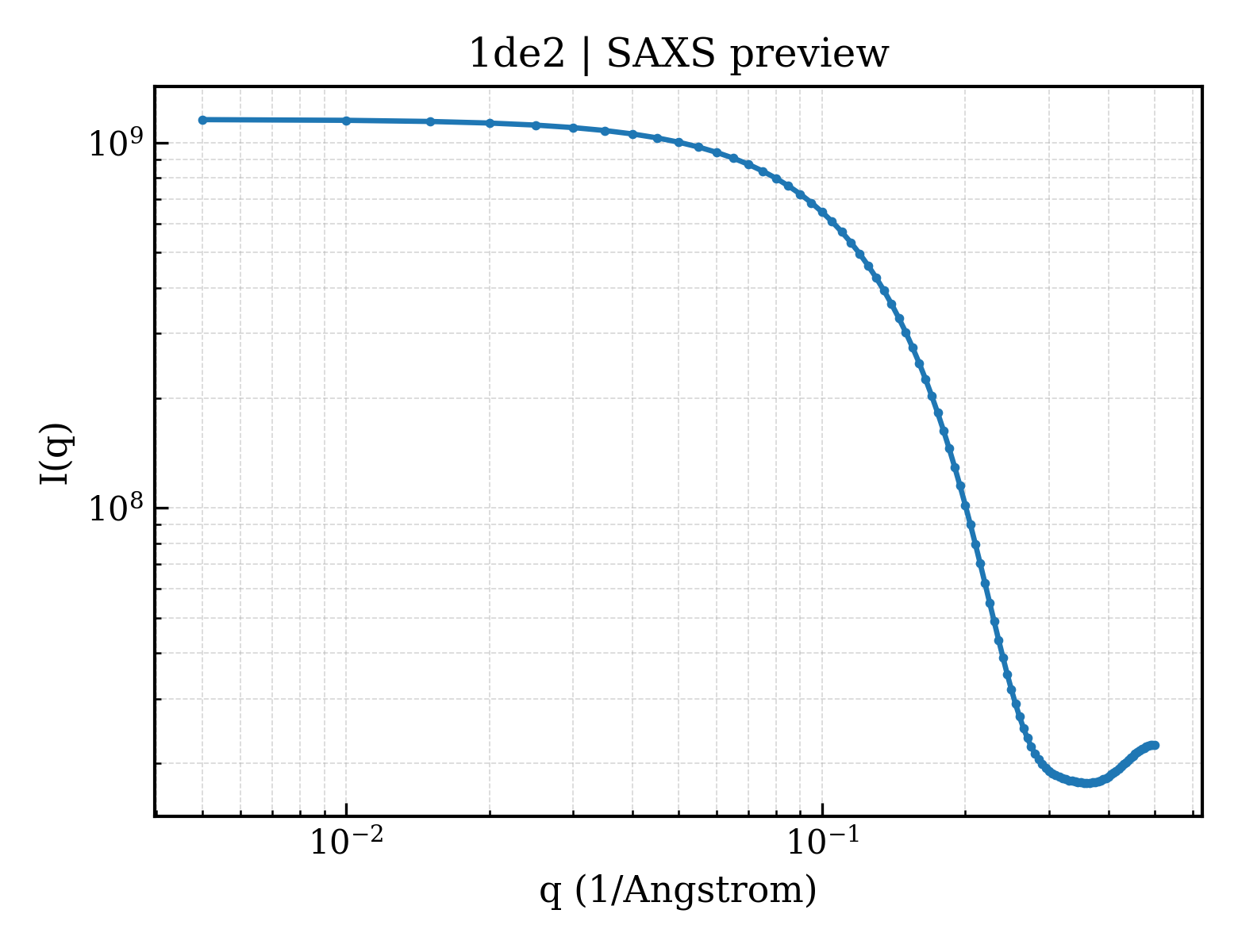

SAXS Profile

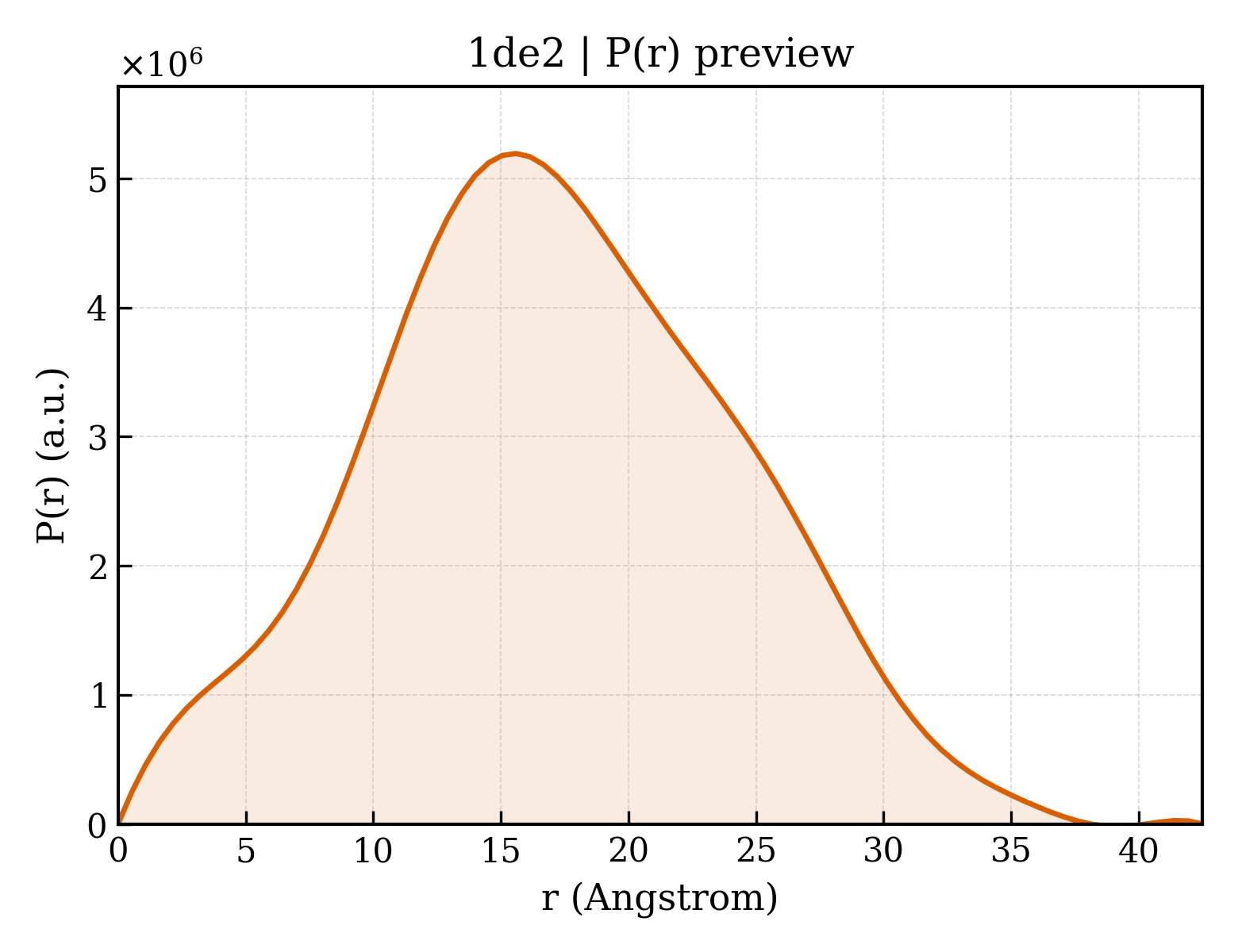

P(r) Distribution
1. Structure Basics
| entry_id | 1de2 |
| deposition_date | 1999-11-12 |
| title | NMR STRUCTURES OF REDUCED BACTERIOPHAGE T4 GLUTAREDOXIN |
| keywords | GLUTAREDOXIN, ELECTRON TRANSPORT; ELECTRON TRANSPORT |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 13.17 Å |
| rg_electron | 12.99 Å |
| i0 | 1158070000.00 |
| molecular_weight | 301490.0 kDa |
| excluded_volume | 381640 ų |
| envelope_volume | 23376 ų |
| shell_volume | 13369 ų |
| envelope_diameter | 48.3 Å |
| shell_rg | 20.56 Å |
| envelope_rg | 15.19 Å |
| shape_rg | 12.94 Å |
| total_rg | 13.25 Å |
| total_atoms | 42390 |
| n_residues | 2610 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 42.5 Å |
| rg_real | 13.09 Å |
| rg_real_error | 0.29 Å |
| i0_real | 1.1580e+09 |
| i0_real_error | 1.3460e+07 |
| rg_reciprocal | 13.10 Å |
| i0_reciprocal | 1158000000.0000 |
| total_estimate | 0.8723 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 15.6 Å |
| skewness | 0.102 |
| kurtosis | -0.391 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 140300.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.800; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.940 |
