1dgq
NMR SOLUTION STRUCTURE OF THE INSERTED DOMAIN OF HUMAN LEUKOCYTE FUNCTION ASSOCIATED ANTIGEN-1
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1dgq |
| deposition_date | 1999-11-24 |
| title | NMR SOLUTION STRUCTURE OF THE INSERTED DOMAIN OF HUMAN LEUKOCYTE FUNCTION ASSOCIATED ANTIGEN-1 |
| keywords | ROSSMANN FOLD, IMMUNE SYSTEM; IMMUNE SYSTEM |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.60 Å |
| rg_electron | 15.15 Å |
| i0 | 2700520000.00 |
| molecular_weight | 470660.0 kDa |
| excluded_volume | 599410 ų |
| envelope_volume | 37105 ų |
| shell_volume | 18223 ų |
| envelope_diameter | 53.3 Å |
| shell_rg | 23.22 Å |
| envelope_rg | 16.83 Å |
| shape_rg | 15.11 Å |
| total_rg | 15.38 Å |
| total_atoms | 66638 |
| n_residues | 4136 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

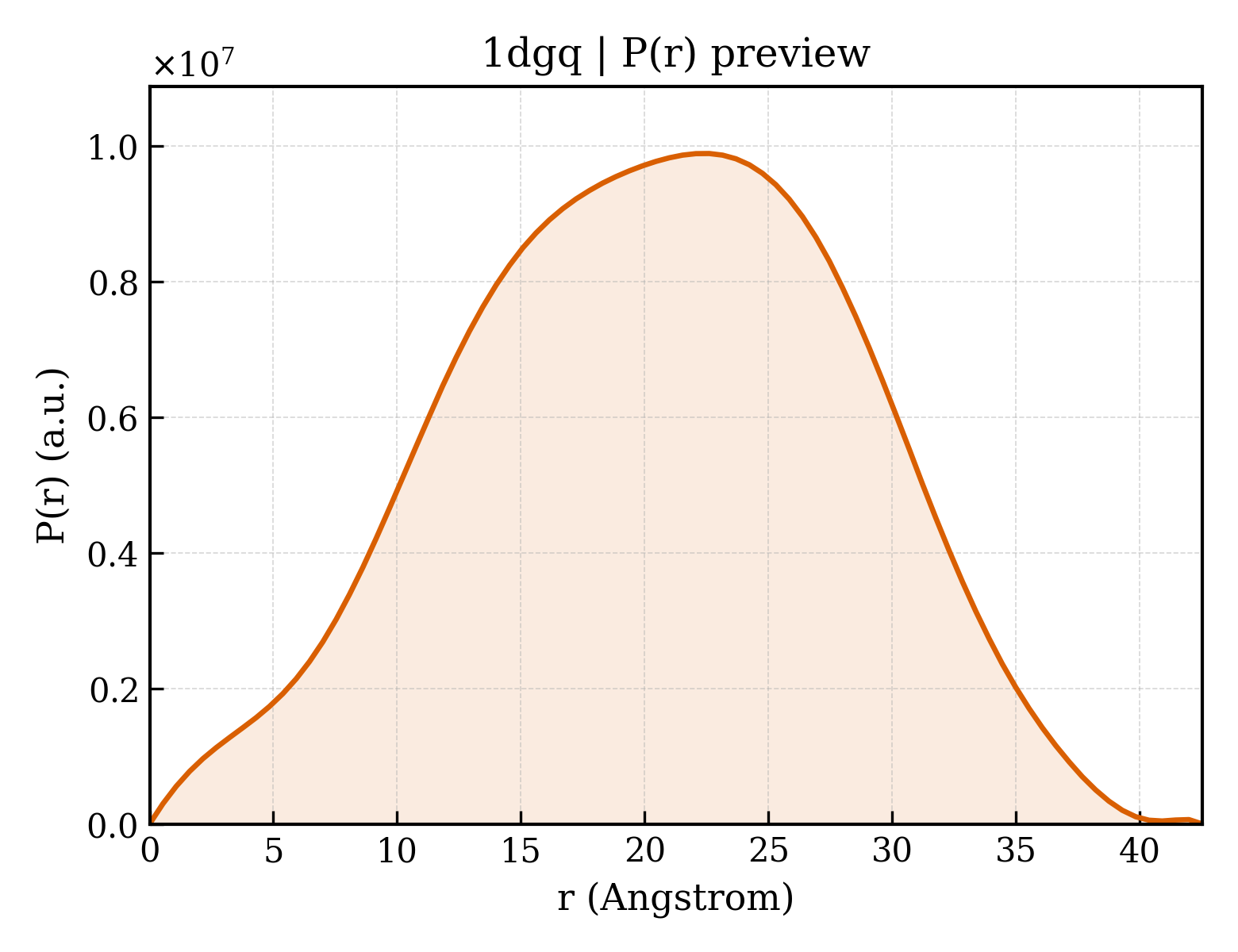

3. P(r) Analysis (GNOM)
| dmax | 42.5 Å |
| rg_real | 15.45 Å |
| rg_real_error | 0.12 Å |
| i0_real | 2.7010e+09 |
| i0_real_error | 2.5690e+07 |
| rg_reciprocal | 15.47 Å |
| i0_reciprocal | 2701000000.0000 |
| total_estimate | 0.9144 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 22.6 Å |
| skewness | -0.100 |
| kurtosis | -0.548 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 587200.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.978; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.969; Smooth: 0.981 |
