1did
OBSERVATIONS OF REACTION INTERMEDIATES AND THE MECHANISM OF ALDOSE-KETOSE INTERCONVERSION BY D-XYLOSE ISOMERASE

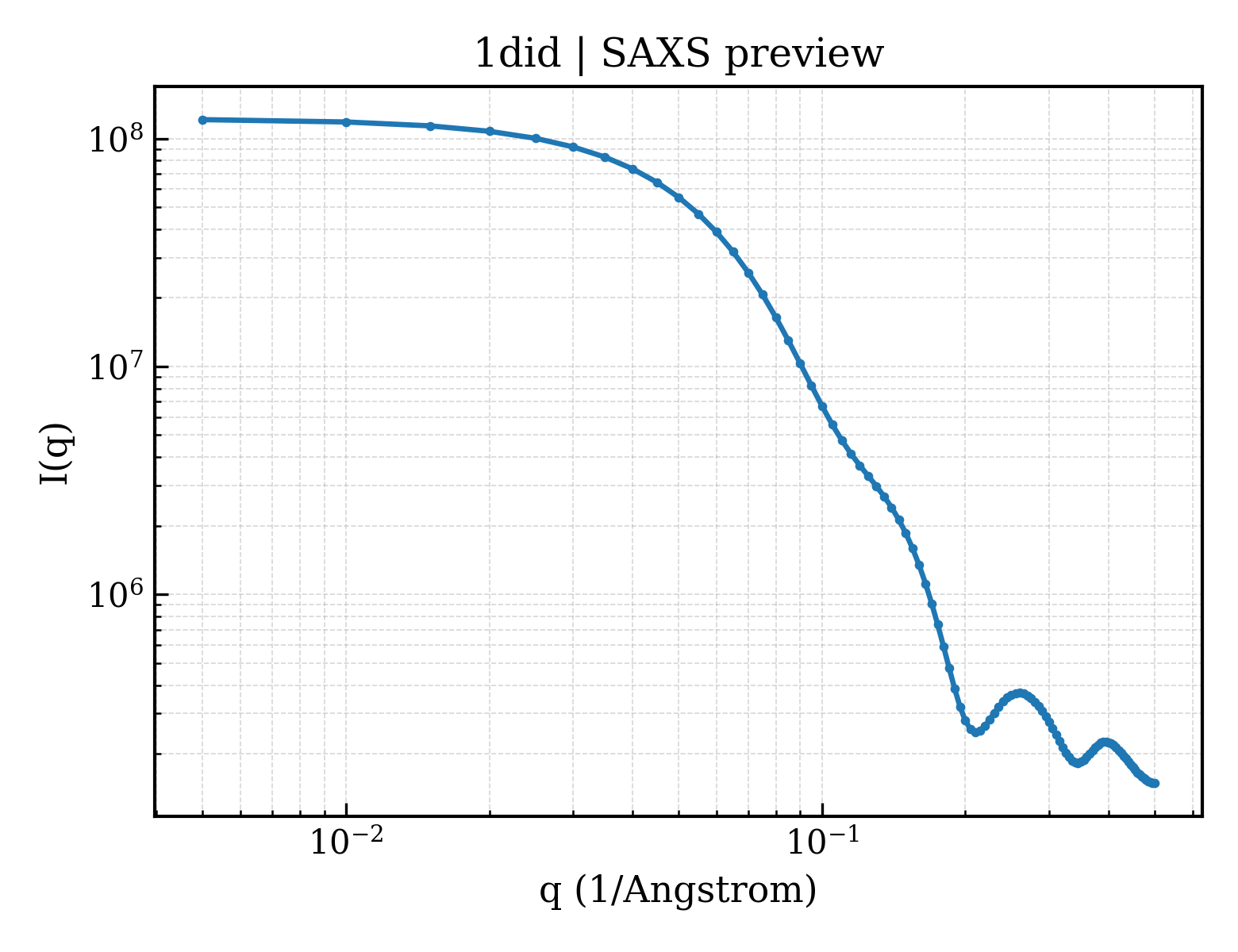

SAXS Profile

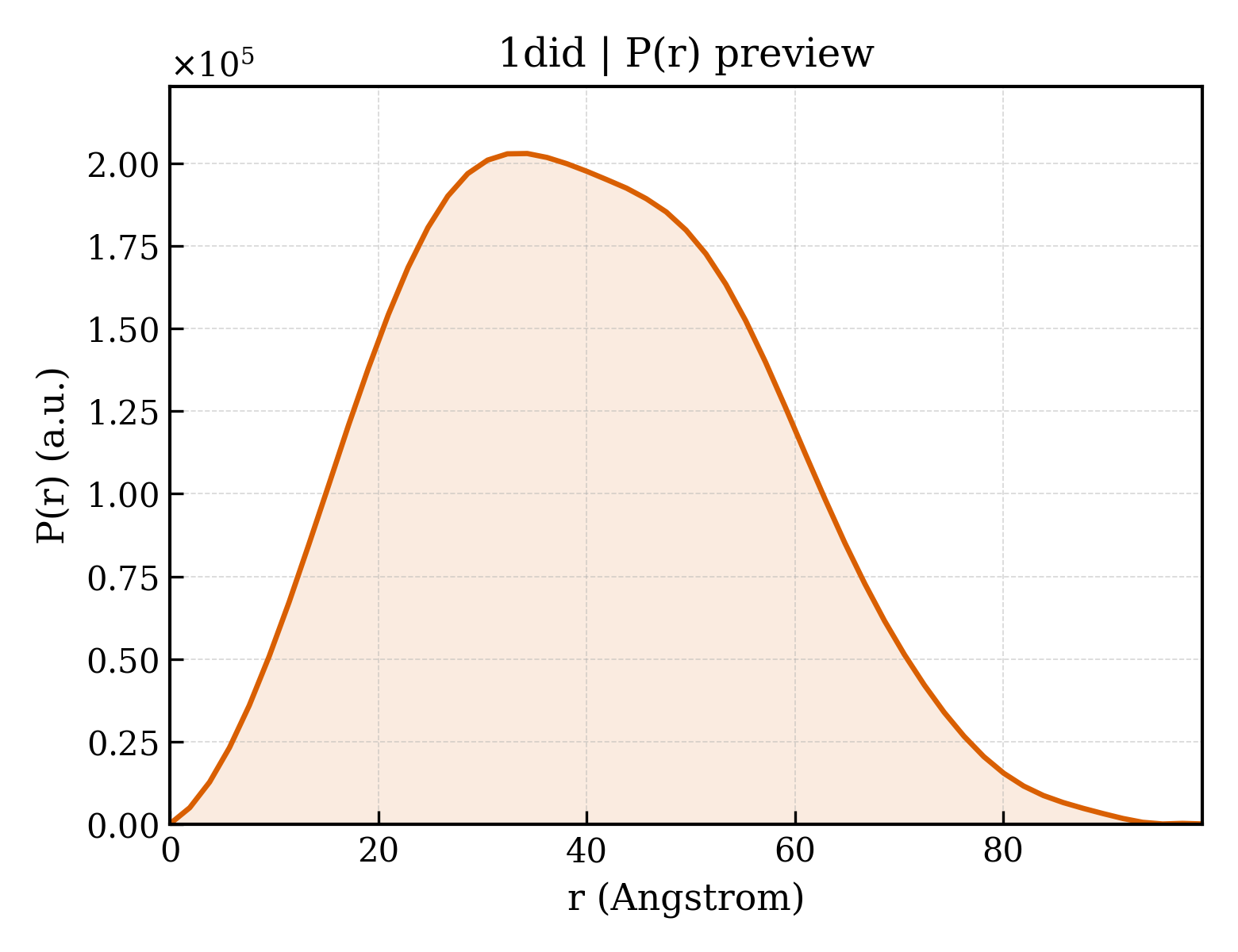

P(r) Distribution
1. Structure Basics
| entry_id | 1did |
| deposition_date | 1992-06-04 |
| title | OBSERVATIONS OF REACTION INTERMEDIATES AND THE MECHANISM OF ALDOSE-KETOSE INTERCONVERSION BY D-XYLOSE ISOMERASE |
| keywords | ISOMERASE(INTRAMOLECULAR OXIDOREDUCTASE); ISOMERASE(INTRAMOLECULAR OXIDOREDUCTASE) |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 30.72 Å |
| rg_electron | 29.73 Å |
| i0 | 121961000.00 |
| molecular_weight | 86146.0 kDa |
| excluded_volume | 107060 ų |
| envelope_volume | 141820 ų |
| shell_volume | 39382 ų |
| envelope_diameter | 101.4 Å |
| shell_rg | 37.43 Å |
| envelope_rg | 29.60 Å |
| shape_rg | 29.73 Å |
| total_rg | 30.43 Å |
| total_atoms | 6080 |
| n_residues | 786 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 99.1 Å |
| rg_real | 30.64 Å |
| rg_real_error | 0.59 Å |
| i0_real | 1.2200e+08 |
| i0_real_error | 1.5780e+06 |
| rg_reciprocal | 30.68 Å |
| i0_reciprocal | 122000000.0000 |
| total_estimate | 0.8260 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 34.3 Å |
| skewness | 0.220 |
| kurtosis | -0.518 |
| angular_range | — – 0.2600 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 38870000.0000 |
| n_real_points | 53 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.912; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.000 |
