1div
RIBOSOMAL PROTEIN L9

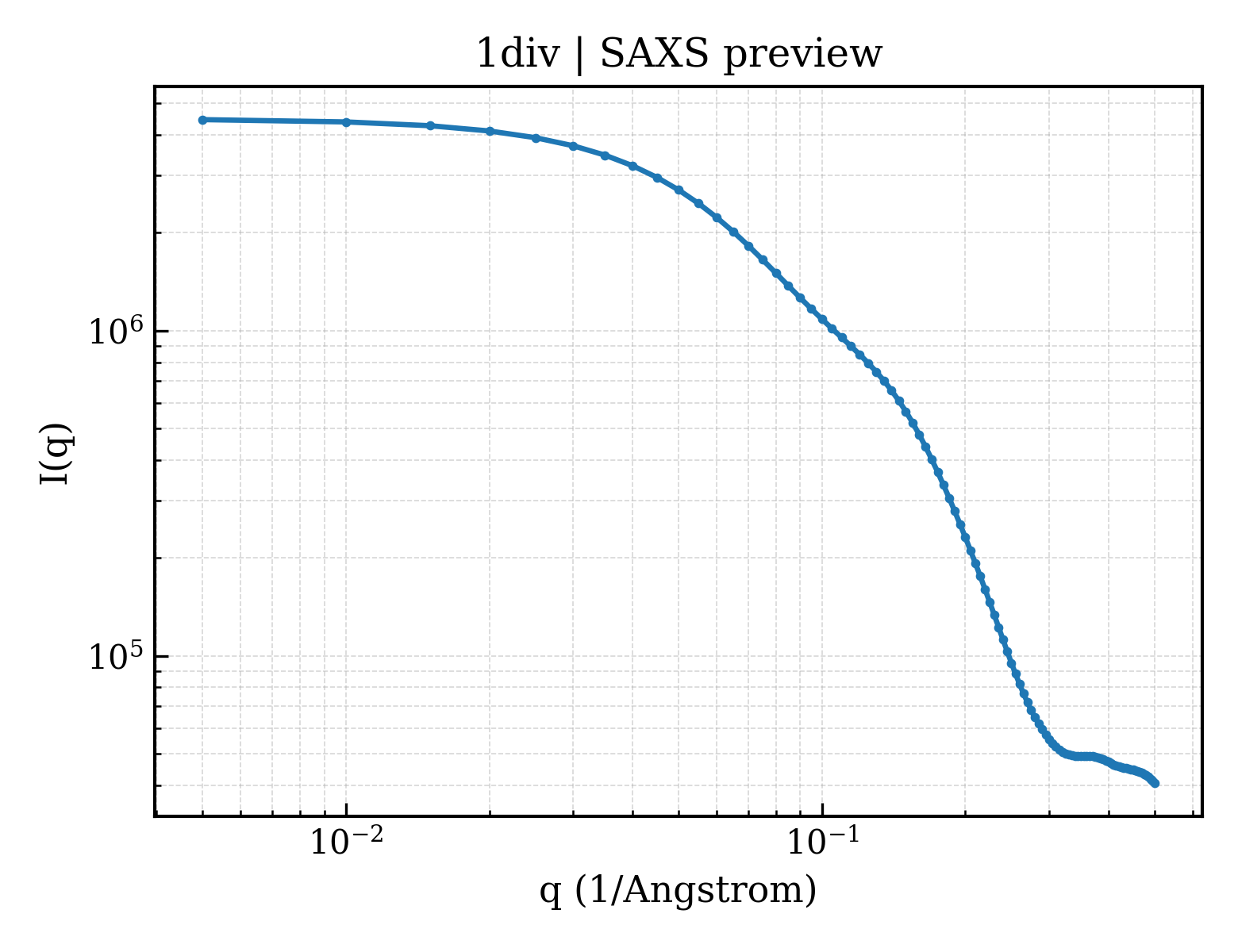

SAXS Profile

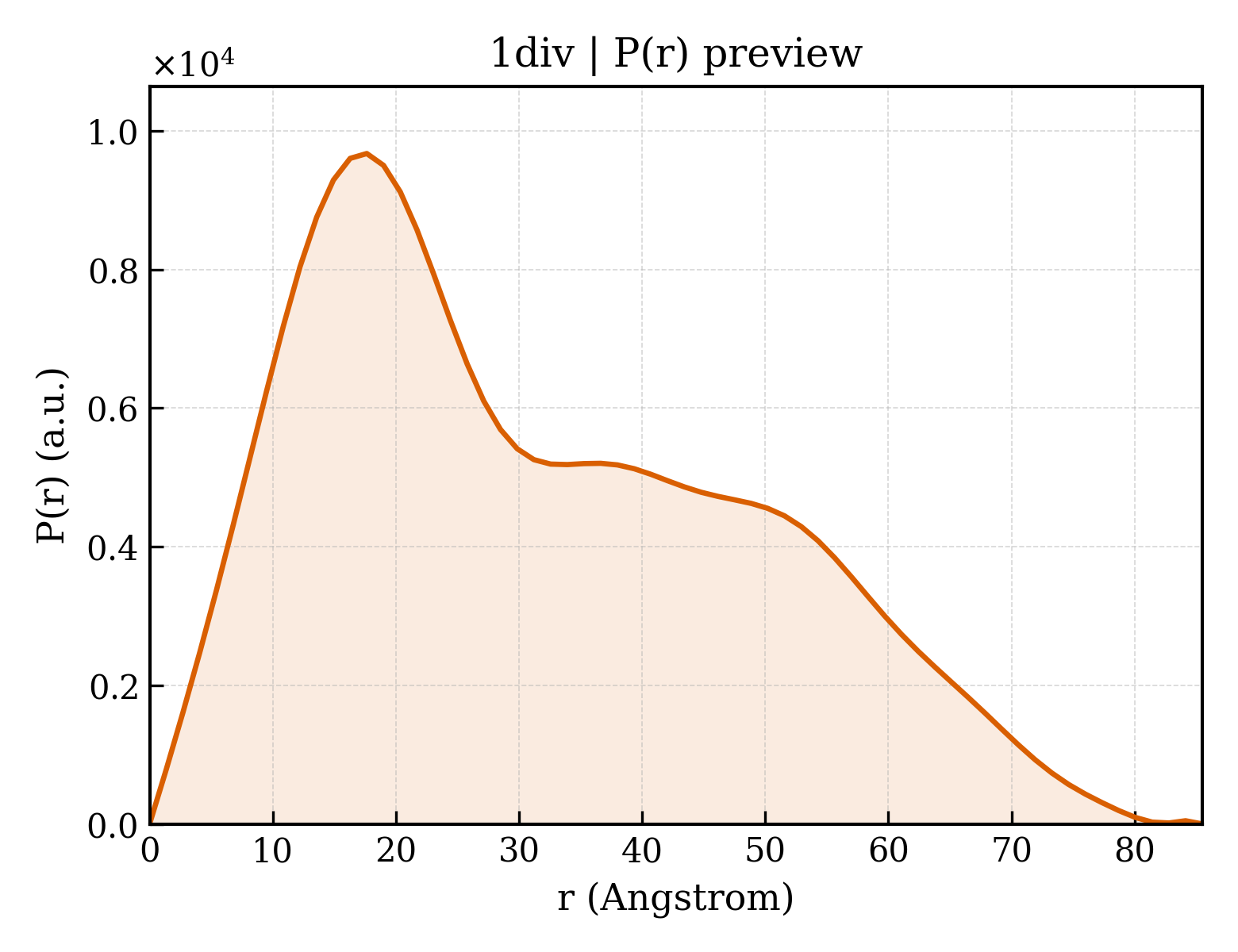

P(r) Distribution
1. Structure Basics
| entry_id | 1div |
| deposition_date | 1996-07-02 |
| title | RIBOSOMAL PROTEIN L9 |
| keywords | RIBOSOMAL PROTEIN, RRNA-BINDING; RIBOSOMAL PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 24.94 Å |
| rg_electron | 24.95 Å |
| i0 | 4480790.00 |
| molecular_weight | 16304.0 kDa |
| excluded_volume | 20788 ų |
| envelope_volume | 27702 ų |
| shell_volume | 10694 ų |
| envelope_diameter | 84.8 Å |
| shell_rg | 28.45 Å |
| envelope_rg | 24.44 Å |
| shape_rg | 24.97 Å |
| total_rg | 25.40 Å |
| total_atoms | 1435 |
| n_residues | 149 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 85.5 Å |
| rg_real | 25.46 Å |
| rg_real_error | 0.84 Å |
| i0_real | 4.4810e+06 |
| i0_real_error | 6.2670e+04 |
| rg_reciprocal | 25.34 Å |
| i0_reciprocal | 4480000.0000 |
| total_estimate | 0.6937 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 3 |
| r_peak_primary | 17.6 Å |
| skewness | 0.484 |
| kurtosis | -0.738 |
| angular_range | — – 0.3200 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 405900.0000 |
| n_real_points | 64 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.364; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.075; Smooth: 0.848 |
