STRUCTURES OF ADENYLOSUCCINATE SYNTHETASE FROM TRITICUM AESTIVUM AND ARABIDOPSIS THALIANA

Method: X-RAY DIFFRACTION D_max: 86.1 Å Quality: EXCELLENT

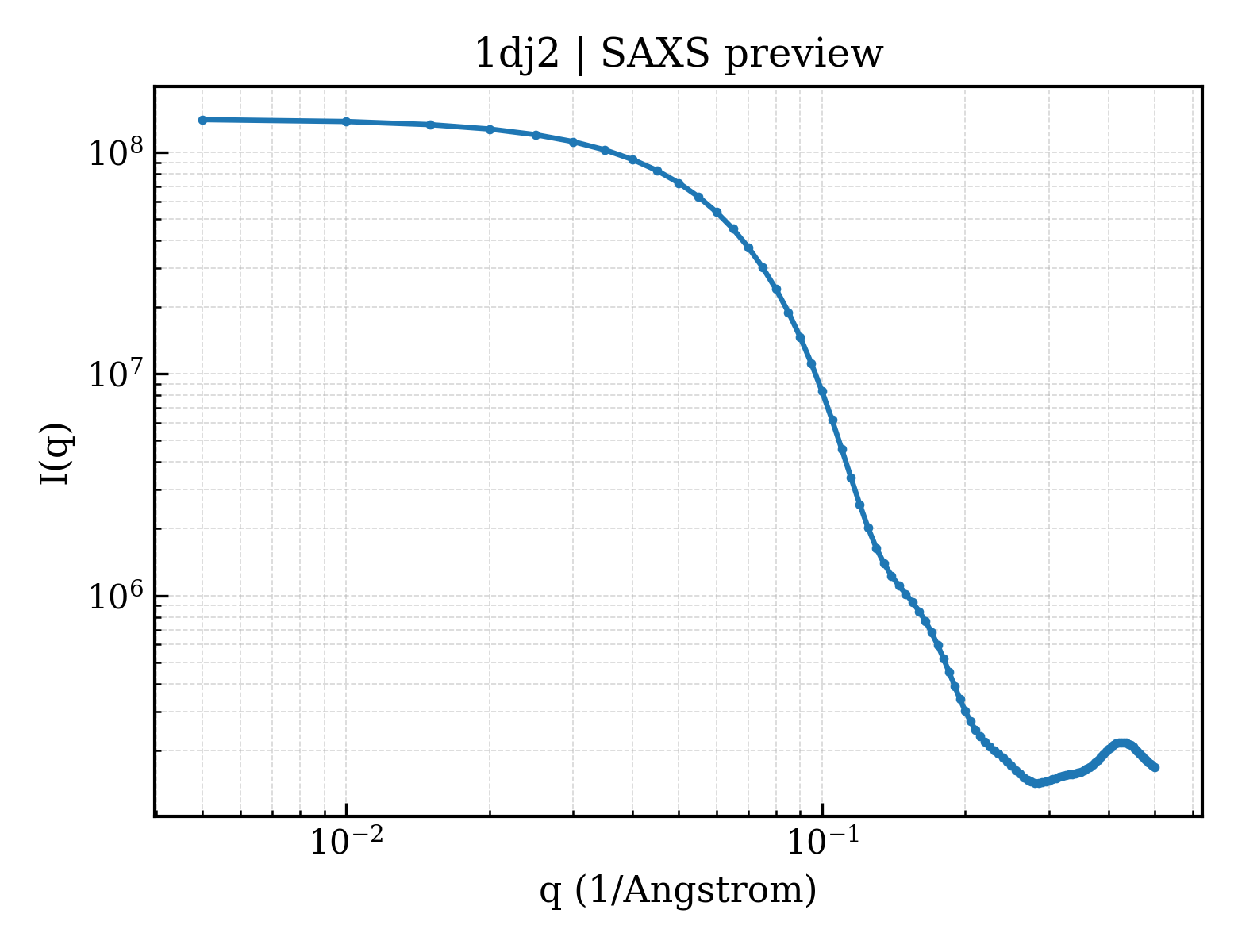

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	1dj2
deposition_date	1999-12-01
title	STRUCTURES OF ADENYLOSUCCINATE SYNTHETASE FROM TRITICUM AESTIVUM AND ARABIDOPSIS THALIANA
keywords	GDP, LIGASE; LIGASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	28.03 Å
rg_electron	27.01 Å
i0	141137000.00
molecular_weight	93903.0 kDa
excluded_volume	117600 Å³
envelope_volume	138890 Å³
shell_volume	41020 Å³
envelope_diameter	90.7 Å
shell_rg	35.90 Å
envelope_rg	27.15 Å
shape_rg	27.02 Å
total_rg	27.81 Å
total_atoms	6612
n_residues	858
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	86.1 Å
rg_real	27.86 Å
rg_real_error	0.42 Å
i0_real	1.4110e+08
i0_real_error	2.0030e+06
rg_reciprocal	27.92 Å
i0_reciprocal	141100000.0000
total_estimate	0.9036
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	2
r_peak_primary	34.7 Å
skewness	0.191
kurtosis	-0.461
angular_range	— – 0.2850 Å⁻¹
current_alpha	0.0000
highest_alpha	94250000.0000
n_real_points	58
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.929; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.987; Smooth: 0.970

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

▶

6. Citations (1)

▶

length_a	212.760 Å
length_b	212.760 Å
length_c	212.760 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	48

space_group	I 2 3
int_tables_number	197
crystal_system	—

resolution	2.900 Å
resolution_low	45.000 Å
r_factor	0.2330
r_work	0.2330
r_free	0.2730

description	ADENYLOSUCCINATE SYNTHETASE
formula_weight	47886.2 kDa
ec_number	6.3.4.4
src_method	man
entity_count	2

type	polypeptide(L)
strand_id	A,B
atom_count	6612

STRUCTURES OF ADENYLOSUCCINATE SYNTHETASE FROM TRITICUM AESTIVUM AND ARABIDOPSIS THALIANA

SAXS Profile

P(r) Distribution

1. Structure Basics

Download Data

2. SAXS Parameters (CRYSOL)

3. P(r) Analysis (GNOM)

4. Crystallography & Experiment

Unit Cell

Symmetry

Refinement

Diffraction

5. Entities & Polymer Info (2)

Entity 1 polymer

Polymer

Source

Entity 2 non-polymer

6. Citations (1)

7. Files & Curves (10)

Files (7)

Curves (3)

organism	Arabidopsis thaliana
common_name	thale cress
ncbi_taxonomy_id	3702
host_organism	Escherichia coli

description	GUANOSINE-5'-DIPHOSPHATE
formula_weight	443.2 kDa
src_method	syn
entity_count	2

fit	/app/data/saxs_computation/dj/1dj2/1dj2.fit
pddf	/app/data/pr_computation/dj/1dj2/1dj2.pr.out
profile	/app/data/saxs_computation/dj/1dj2/1dj2.dat
