SAXSdb — 1dkh

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

HEME-BINDING PROTEIN A

Serratia marcescens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–188	Not recorded	ZN ZINC ION × 3 SM SAMARIUM (III) ION × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；Cacodylate buffer pH6.5, Zinc Acetate 140mM, Glycerol 2%, PEG8000 10%, Samarium Chloride 10mM., VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.20 Å R-free 0.288

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1DKH	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1B2V HEME-BINDING PROTEIN A Deposited 1998-12-01	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–188（188 aa）	Not recorded	CA CALCIUM ION × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.6；0.2M CACL, 0.1M NA ACETATE PH 4.6, 20% ISOPRPANOL	Resolution 1.90 Å R-free 0.218
1DK0 CRYSTAL STRUCTURE OF THE HEMOPHORE HASA FROM SERRATIA MARCESCENS CRYSTAL FORM P2(1), PH8 Deposited 1999-12-06	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–188（188 aa）	Not recorded	HEM PROTOPORPHYRIN IX CONTAINING FE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；0.1M NaHepes, pH8.0, 1.4M NaKTartrate, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.77 Å R-free 0.213
1DK0 CRYSTAL STRUCTURE OF THE HEMOPHORE HASA FROM SERRATIA MARCESCENS CRYSTAL FORM P2(1), PH8 Deposited 1999-12-06	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–188（188 aa）	Not recorded	HEM PROTOPORPHYRIN IX CONTAINING FE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；0.1M NaHepes, pH8.0, 1.4M NaKTartrate, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.77 Å R-free 0.213
1YBJ Structural and Dynamics studies of both apo and holo forms of the hemophore HasA Deposited 2004-12-21	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–179（178 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 5.6；303 K；Ionic strength (raw mmCIF value) 20mM sodium phosphate buffer；Pressure ambient NMR sample composition 1.8mM HasA 15N \| 20mM sodium phosphate buffer, pH5.6; 90% H2O/10% D20 NMR sample composition 1.9mM HasA 15N,13C \| 20mM sodium phosphate buffer, pH5.6; 90% H2O/10% D20	Resolution not provided
2CN4 The crystal structure of the secreted dimeric form of the hemophore HasA reveals a domain swapping with an exchanged heme ligand Deposited 2006-05-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 2–174（173 aa） Chain B 2–174（173 aa）	Not recorded	HEM PROTOPORPHYRIN IX CONTAINING FE × 2 PO4 PHOSPHATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；2 MICROLITERS PROTEIN (AT A CONCENTRATION OF ABOUT 4 MG/ML) WERE MIXED WITH 1 MICROLITER RESERVOIR CONSISTING OF 100 MM TRIS BUFFER AT PH 8.5, 2 M K2HPO4 AND 2 M NAH2PO4.	Resolution 2.30 Å R-free 0.224
2UYD Crystal structure of the SmHasA mutant H83A Deposited 2007-04-04	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain X 1–188（188 aa）	Mutation：YES	HEM PROTOPORPHYRIN IX CONTAINING FE × 1 ZN ZINC ION × 8 ACT ACETATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；293 K；DROPS WERE PREPARED BY MIXING 2MICROL OF THE PROTEIN SOLUTION WITH 1 MICROL OF THE RESERVOIR SOLUTION THAT CONTAINED 100 MM SODIUM CACODYLATE AT PH 6.5, 200 MM ZN(OAC)2 AND 10 % (V/V) 2-PROPANOL. THE BROWNISH CRYSTALS GREW OVER A PERIOD OF 2 MONTHS AT 20 DEGREES C.	Resolution 2.70 Å R-free 0.274
3CSL Structure of the Serratia marcescens hemophore receptor HasR in complex with its hemophore HasA and heme Deposited 2008-04-10	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 2–188（187 aa）	Not recorded	HEM PROTOPORPHYRIN IX CONTAINING FE × 1 GOL GLYCEROL × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；291 K；2 M NaCl, 100 mM Tris, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.70 Å R-free 0.274
3CSL Structure of the Serratia marcescens hemophore receptor HasR in complex with its hemophore HasA and heme Deposited 2008-04-10	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 2–188（187 aa）	Not recorded	HEM PROTOPORPHYRIN IX CONTAINING FE × 1 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；291 K；2 M NaCl, 100 mM Tris, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.70 Å R-free 0.274
3CSN Structure of the Serratia marcescens hemophore receptor HasR in complex with its hemophore HasA Deposited 2008-04-10	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 2–188（187 aa）	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；291 K；2 M NaCl, 100 mM Tris, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 3.00 Å R-free 0.244
3CSN Structure of the Serratia marcescens hemophore receptor HasR in complex with its hemophore HasA Deposited 2008-04-10	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 2–188（187 aa）	Not recorded	GOL GLYCEROL × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；291 K；2 M NaCl, 100 mM Tris, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 3.00 Å R-free 0.244
3DDR Structure of the Serratia marcescens hemophore receptor HasR-Ile671Gly mutant in complex with its hemophore HasA and heme Deposited 2008-06-06	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 2–188（187 aa）	Not recorded	NA SODIUM ION × 1 GOL GLYCEROL × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；291 K；2 M NaCl, 100 mM Tris, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.80 Å R-free 0.262
3DDR Structure of the Serratia marcescens hemophore receptor HasR-Ile671Gly mutant in complex with its hemophore HasA and heme Deposited 2008-06-06	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 2–188（187 aa）	Not recorded	NA SODIUM ION × 1 GOL GLYCEROL × 5 HEM PROTOPORPHYRIN IX CONTAINING FE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；291 K；2 M NaCl, 100 mM Tris, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.80 Å R-free 0.262
5C58 A double mutant of serratia marcescens hemophore receptor HasR in complex with its hemophore HasA and heme Deposited 2015-06-19	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 2–188（187 aa） Fragment：UNP residues 2-188	Not recorded	HEM PROTOPORPHYRIN IX CONTAINING FE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；100mM Tris pH 7 to 8, 1.8 to 2.2mM NaCl, 100mM K2HPO4	Resolution 2.79 Å R-free 0.296
9XOH Crystal Structure of Redesigned HasAsm Variant (14-mutation) with Iron Tetraphenylporphyrin Deposited 2025-11-13	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–176（176 aa）	Mutation：A2S, G13A, H17A, G21T, S42T, Q63N, N79S, D102T, V110N, D112E, A125S, V131E, G145S, D156K	MQP [5,10,15,20-tetraphenylporphyrinato(2-)-kappa~4~N~21~,N~22~,N~23~,N~24~]iron × 1 GOL GLYCEROL × 3 NA SODIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；0.1M sodium cacodylate-HCl, 1M sodium citrate tribasic	Resolution 1.51 Å R-free 0.234
9XOH Crystal Structure of Redesigned HasAsm Variant (14-mutation) with Iron Tetraphenylporphyrin Deposited 2025-11-13	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–176（176 aa）	Mutation：A2S, G13A, H17A, G21T, S42T, Q63N, N79S, D102T, V110N, D112E, A125S, V131E, G145S, D156K	MQP [5,10,15,20-tetraphenylporphyrinato(2-)-kappa~4~N~21~,N~22~,N~23~,N~24~]iron × 1 GOL GLYCEROL × 2 NA SODIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；0.1M sodium cacodylate-HCl, 1M sodium citrate tribasic	Resolution 1.51 Å R-free 0.234
9XOH Crystal Structure of Redesigned HasAsm Variant (14-mutation) with Iron Tetraphenylporphyrin Deposited 2025-11-13	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1–176（176 aa）	Mutation：A2S, G13A, H17A, G21T, S42T, Q63N, N79S, D102T, V110N, D112E, A125S, V131E, G145S, D156K	MQP [5,10,15,20-tetraphenylporphyrinato(2-)-kappa~4~N~21~,N~22~,N~23~,N~24~]iron × 1 NA SODIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；0.1M sodium cacodylate-HCl, 1M sodium citrate tribasic	Resolution 1.51 Å R-free 0.234
9XOH Crystal Structure of Redesigned HasAsm Variant (14-mutation) with Iron Tetraphenylporphyrin Deposited 2025-11-13	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 1–176（176 aa）	Mutation：A2S, G13A, H17A, G21T, S42T, Q63N, N79S, D102T, V110N, D112E, A125S, V131E, G145S, D156K	MQP [5,10,15,20-tetraphenylporphyrinato(2-)-kappa~4~N~21~,N~22~,N~23~,N~24~]iron × 1 GOL GLYCEROL × 2 NA SODIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；0.1M sodium cacodylate-HCl, 1M sodium citrate tribasic	Resolution 1.51 Å R-free 0.234
9XOK Crystal Structure of Redesigned HasAsm Variant (51-mutation) with Iron Tetraphenylporphyrin Deposited 2025-11-13	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 3–173（171 aa）	Mutation：;F11L, G12D, G13N, Y14L, S15T, I16L, H17Q, D18E, Y19F, L20F, G21N, Q22E, S25A, T26S, S58T, A61K, N62D, Q63G, Q88T, S93A, D96N, D102S, T103S, S104T, Q109T, V110E, D112Q, V113F, S114R, F115L, N119G, L120W, S121T, L123E, Q124I, A125S, Q126E, T144S, G145T, A146P, E148L, T149Q, G153N, I154Q, D156Q, D157Q, V162T, D167M, Q168E, V169I, A170R ;	MQP [5,10,15,20-tetraphenylporphyrinato(2-)-kappa~4~N~21~,N~22~,N~23~,N~24~]iron × 1 SO4 SULFATE ION × 1 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；0.1M sodium cacodylate-HCl, 2M ammonium sulfate, 0.2M NaCl	Resolution 1.80 Å R-free 0.330
9XPD Crystal Structure of Redesigned HasAsm Variant (51-mutation) with Heme Deposited 2025-11-16	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–176（176 aa）	Mutation：;F11L, G12D, G13N, Y14L, S15T, I16L, H17Q, D18E, Y19F, L20F, G21N, Q22E, S25A, T26S, S58T, A61K, N62D, Q63G, Q88T, S93A, D96N, D102S, T103S, S104T, Q109T, V110E, D112Q, V113F, S114R, F115L, N119G, L120W, S121T, L123E, Q124I, A125S, Q126E, T144S, G145T, A146P, E148L, T149Q, G153N, I154Q, D156Q, D157Q, V162T, D167M, Q168E, V169I, A170R ;	IMD IMIDAZOLE × 1 CIT CITRIC ACID × 1 GOL GLYCEROL × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 1 NA SODIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；0.1M imidazole-HCl, 1M sodium citrate tribasic	Resolution 1.22 Å R-free 0.177
9XPI Crystal Structure of Redesigned HasAsm Variant (48-mutation) with Heme Deposited 2025-11-16	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–176（176 aa）	Mutation：;F11L, G12A, G13N, Y14L, S15T, I16L, H17A, D18E, Y19F, L20F, G21N, Q22E, T26Y, N41S, S58T, A61K, N62D, Q63G, N79S, E80P, Q88T, S91A, S93T, D96N, T103S, S104T, Q109V, V110N, D112E, S114T, G116S, L120W, S121T, L123E, A125E, Q126E, Q134K, V136I, G145T, E148L, T149Q, G153S, I154L, D156K, D157Q, V162I, Q168E, V169I ;	HEM PROTOPORPHYRIN IX CONTAINING FE × 1 ACT ACETATE ION × 3 ZN ZINC ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；0.1M imidazole-HCl, 2.5M NaCl, 0.2M Zinc acetate	Resolution 2.16 Å R-free 0.255

13 other PDB entries and 20 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	HASA_SERMA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–188； UniProt 1–188

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1dkh
Deposition date deposition_date	1999-12-07
Structure title title	CRYSTAL STRUCTURE OF THE HEMOPHORE HASA, PH 6.5
Keywords keywords	TRANSPORT PROTEIN; TRANSPORT PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	16.81 Å
Radius of gyration Rg (electron density) rg_electron	15.47 Å
Forward intensity I(0) i0	7237930.00
Molecular weight molecular_weight	18623.0 kDa
Excluded volume excluded_volume	22628 Å³
Envelope volume envelope_volume	25250 Å³
Hydration-shell volume shell_volume	13962 Å³
Envelope diameter envelope_diameter	52.8 Å
Shell Rg shell_rg	21.10 Å
Envelope Rg envelope_rg	15.65 Å
Shape Rg shape_rg	15.42 Å
Total Rg total_rg	16.52 Å
Total atoms total_atoms	1298
Residues n_residues	172
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	52.7 Å
Rg (real space) rg_real	16.70 Å
Rg uncertainty (real space) rg_real_error	0.31 Å
I(0) (real space) i0_real	7.2380e+06
I(0) uncertainty (real space) i0_real_error	8.7890e+04
Rg (reciprocal space) rg_reciprocal	16.72 Å
I(0) (reciprocal space) i0_reciprocal	7238000.0000
Solution quality estimate total_estimate	0.6807
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	21.9 Å
Skewness Skewness skewness	0.108
Kurtosis Kurtosis kurtosis	-0.404
Angular range angular_range	— – 0.4750 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	776300.0000
Real-space data points n_real_points	78
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.892; Stabil: 0.999; Sysdev: 0.394; Positv: 1.000; Valcen: 0.989; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	HEME-BINDING PROTEIN A
Molecular weight formula_weight	19288.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1306

MAFSVNYDSSFGGYSIHDYLGQWASTFGDVNHTNGNVTDANSGGFYGGSLSGSQYAISSTANQVTAFVAGGNLTYTLFNEPAHTLYGQLDSLSFGDGLSGGDTSPYSIQVPDVSFGGLNLSSLQAQGHDGVVHQVVYGLMSGDTGALETALNGILDDYGLSVNSTFDQVAAATAVGVQHADSPELLAA

来源 Source

来源生物 organism	Serratia marcescens
NCBI Class编号 ncbi_taxonomy_id	615
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 3 Entity 3 non-polymer

Description description	SAMARIUM (III) ION
Molecular weight formula_weight	150.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	PROTOPORPHYRIN IX CONTAINING FE
Molecular weight formula_weight	616.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	8

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1dkha_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.35 — Heme-binding protein A (HasA)
Superfamily Superfamily superfamily	d.35.1 — Heme-binding protein A (HasA)
Family Family family	d.35.1.1 — Heme-binding protein A (HasA)

CATH v4.4 (1 domains)

Domain ID domain_id	1dkhA00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1500 — Heme-binding Protein A; Chain: A;
Homologous superfamily homologous superfamily	10 — Haem-binding HasA

▶

8. Citations (2)

▶

Unit-cell length a length_a	111.650 Å
Unit-cell length b length_b	111.650 Å
Unit-cell length c length_c	52.790 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 32 2 1
Space-group number int_tables_number	154
Crystal system crystal_system	—

Resolution resolution	3.200 Å
Low-resolution limit resolution_low	12.000 Å
R factor r_factor	0.2300
R_work r_work	0.2280
R_free r_free	0.2880

fit	/app/data/saxs_computation/dk/1dkh/1dkh.fit
pddf	/app/data/pr_computation/dk/1dkh/1dkh.pr.out
profile	/app/data/saxs_computation/dk/1dkh/1dkh.dat

CRYSTAL STRUCTURE OF THE HEMOPHORE HASA, PH 6.5

1. Protein Identity and Related Structures Protein Identity & Related Structures

HEME-BINDING PROTEIN A

State in the Current Structure

Other States of the Same Protein in the Database

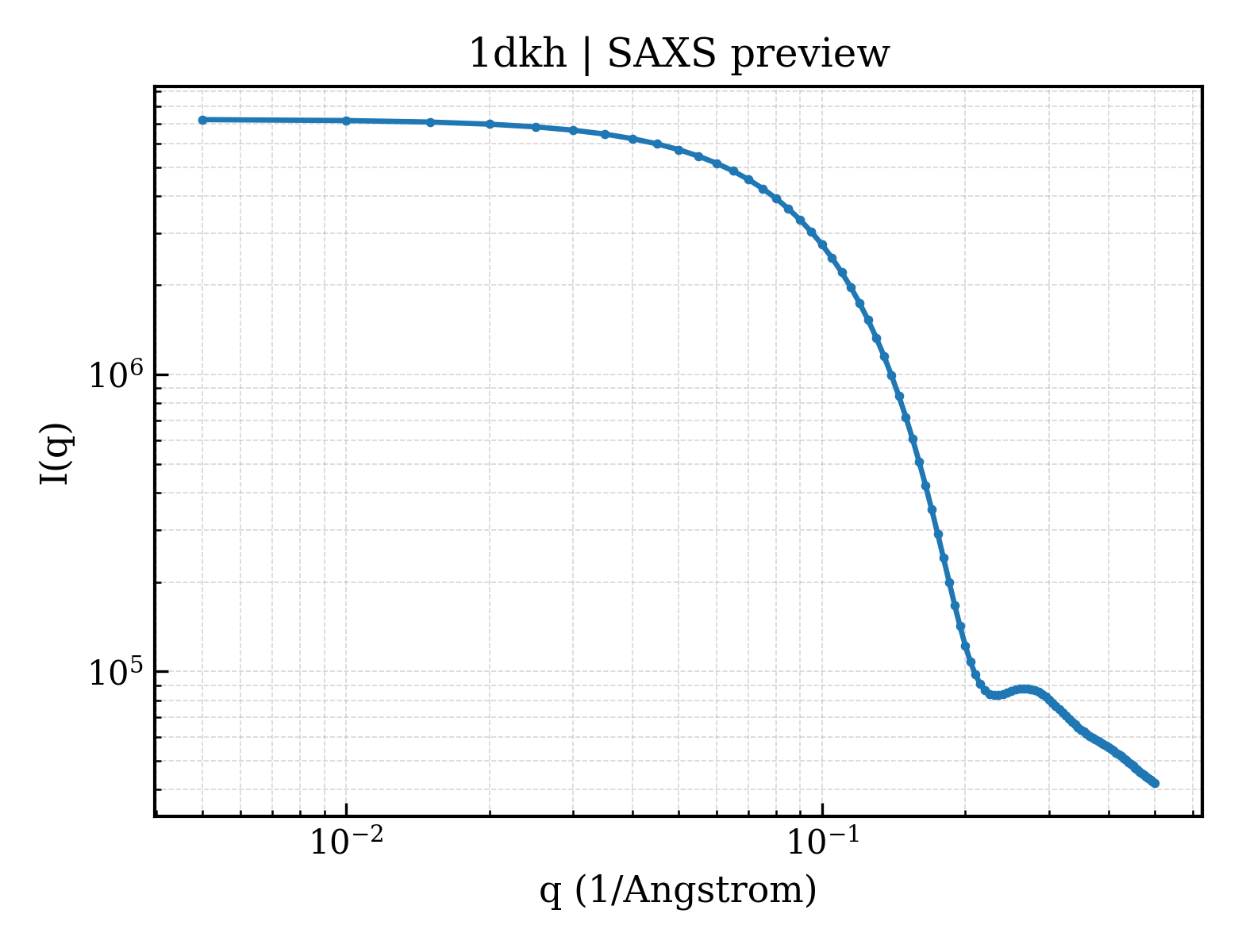

SAXS scattering curve SAXS Profile
