1dm9
HEAT SHOCK PROTEIN 15 KD

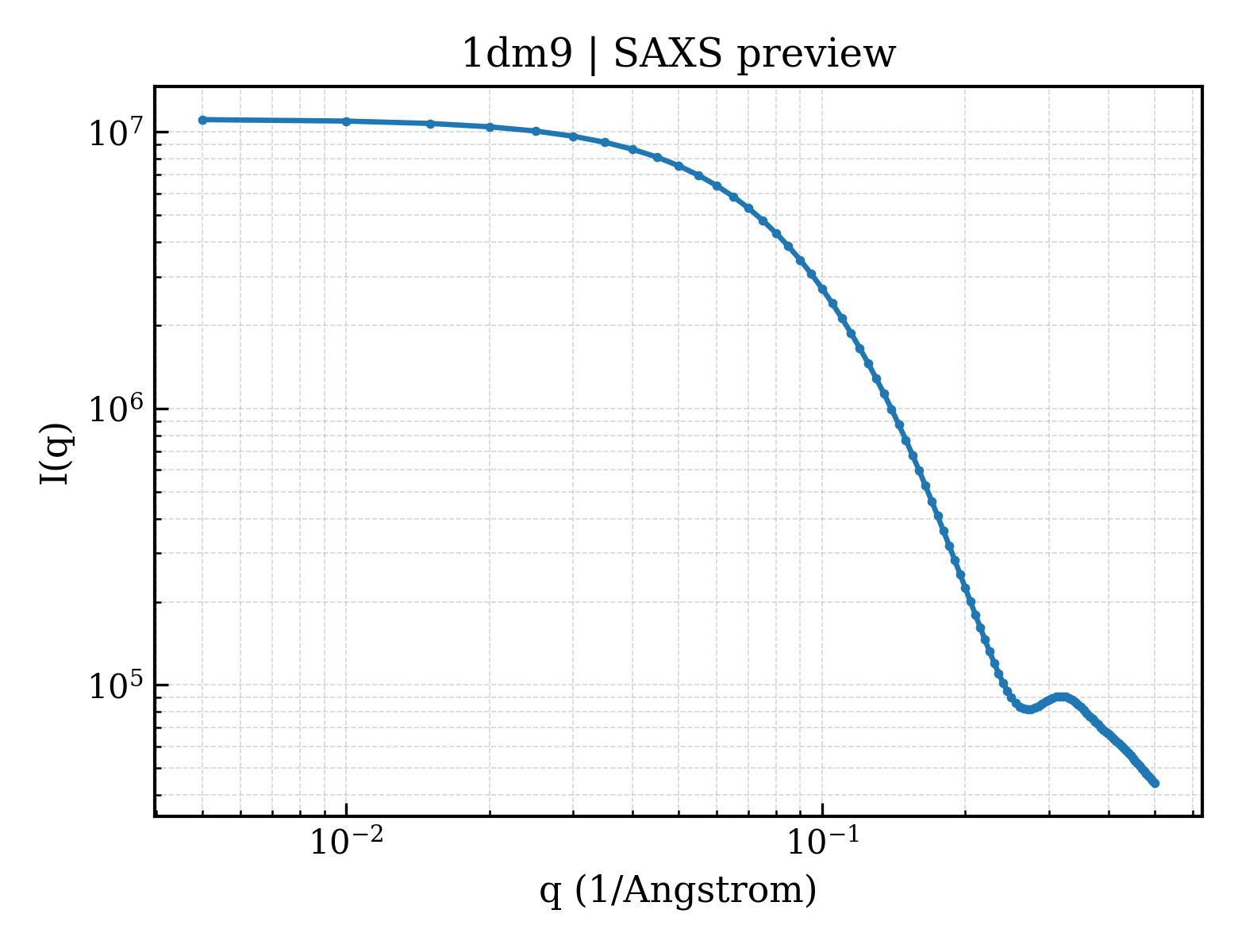

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1dm9 |
| deposition_date | 1999-12-14 |
| title | HEAT SHOCK PROTEIN 15 KD |
| keywords | HEAT SHOCK PROTEINS, PROTEIN-RNA INTERACTIONS, RIBOSOME, STRUCTURAL GENOMICS; STRUCTURAL GENOMICS |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 21.63 Å |
| rg_electron | 20.85 Å |
| i0 | 11125900.00 |
| molecular_weight | 23794.0 kDa |
| excluded_volume | 29418 ų |
| envelope_volume | 36830 ų |
| shell_volume | 16269 ų |
| envelope_diameter | 83.9 Å |
| shell_rg | 25.20 Å |
| envelope_rg | 21.73 Å |
| shape_rg | 20.82 Å |
| total_rg | 21.57 Å |
| total_atoms | 1665 |
| n_residues | 211 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 81.4 Å |
| rg_real | 21.85 Å |
| rg_real_error | 0.74 Å |
| i0_real | 1.1130e+07 |
| i0_real_error | 1.5520e+05 |
| rg_reciprocal | 21.81 Å |
| i0_reciprocal | 11130000.0000 |
| total_estimate | 0.7888 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 21.9 Å |
| skewness | 0.617 |
| kurtosis | 0.110 |
| angular_range | — – 0.3650 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1656000.0000 |
| n_real_points | 68 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.565; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.558; Smooth: 0.996 |
