1dmw

CRYSTAL STRUCTURE OF DOUBLE TRUNCATED HUMAN PHENYLALANINE HYDROXYLASE WITH BOUND 7,8-DIHYDRO-L-BIOPTERIN

Method: X-RAY DIFFRACTION D_max: 60.1 Å Quality: EXCELLENT

SAXS Profile

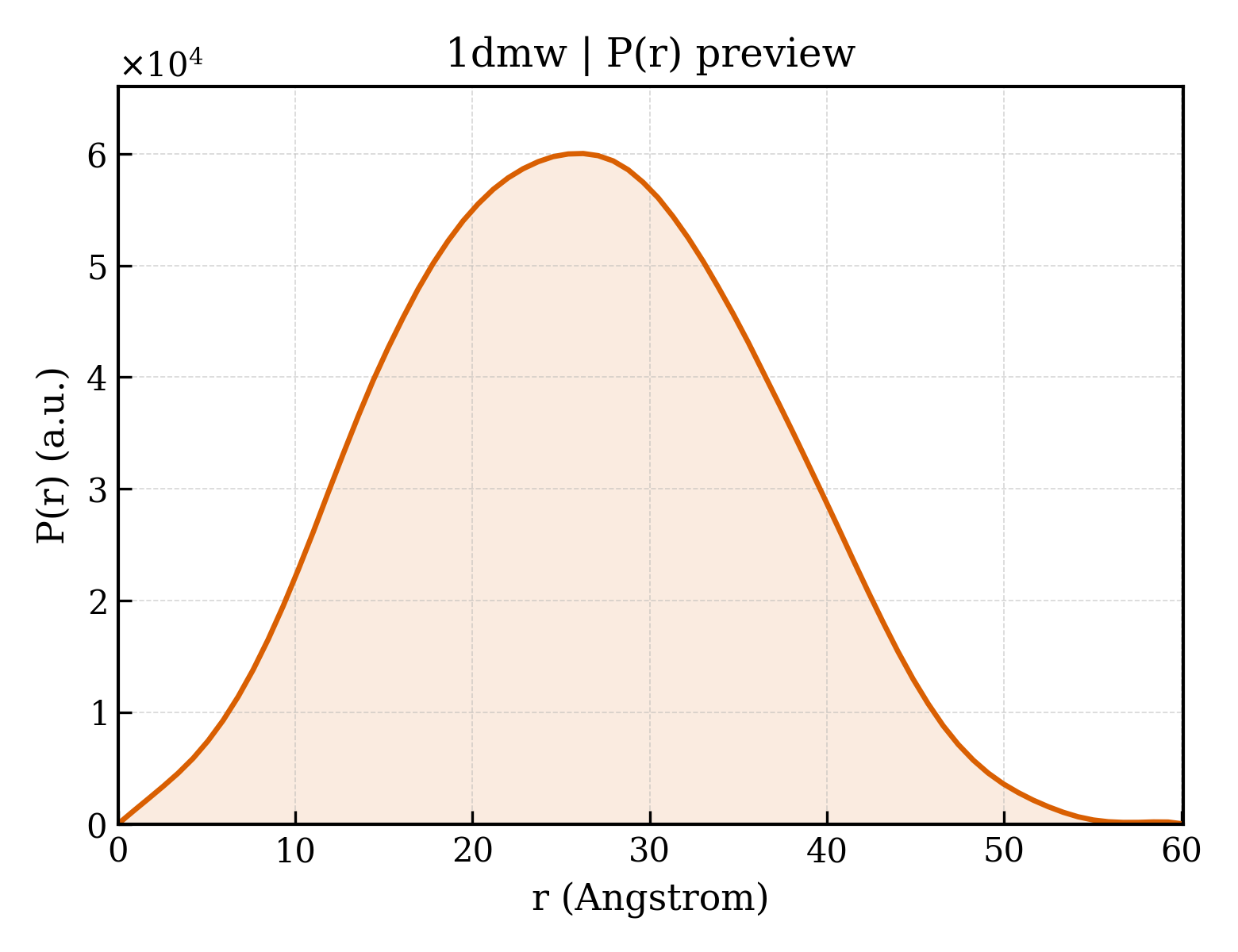

P(r) Distribution

▼

1. Structure Basics

entry_id	1dmw
deposition_date	1999-12-15
title	CRYSTAL STRUCTURE OF DOUBLE TRUNCATED HUMAN PHENYLALANINE HYDROXYLASE WITH BOUND 7,8-DIHYDRO-L-BIOPTERIN
keywords	IRON ENZYME, 7, 8-DIHYDRO-L-BIOPTERIN, COFACTOR, OXIDOREDUCTASE; OXIDOREDUCTASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	19.88 Å
rg_electron	18.77 Å
i0	20966100.00
molecular_weight	35848.0 kDa
excluded_volume	45177 Å³
envelope_volume	51089 Å³
shell_volume	21980 Å³
envelope_diameter	60.2 Å
shell_rg	25.83 Å
envelope_rg	19.02 Å
shape_rg	18.74 Å
total_rg	19.81 Å
total_atoms	2536
n_residues	307
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	60.1 Å
rg_real	19.70 Å
rg_real_error	0.30 Å
i0_real	2.0970e+07
i0_real_error	2.4750e+05
rg_reciprocal	19.73 Å
i0_reciprocal	20970000.0000
total_estimate	0.9044
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	2
r_peak_primary	26.2 Å
skewness	0.083
kurtosis	-0.508
angular_range	— – 0.4000 Å⁻¹
current_alpha	0.0000
highest_alpha	7929000.0000
n_real_points	72
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.924; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.983; Smooth: 0.999

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	PHENYLALANINE HYDROXYLASE
formula_weight	35599.4 kDa
ec_number	1.14.16.1
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	2688

VPWFPRTIQELDRFANQILSYGAELDADHPGFKDPVYRARRKQFADIAYNYRHGQPIPRVEYMEEEKKTWGTVFKTLKSLYKTHACYEYNHIFPLLEKYCGFHEDNIPQLEDVSQFLQTCTGFRLRPVAGLLSSRDFLGGLAFRVFHCTQYIRHGSKPMYTPEPDICHELLGHVPLFSDRSFAQFSQEIGLASLGAPDEYIEKLATIYWFTVEFGLCKQGDSIKAYGAGLLSSFGELQYCLSEKPKLLPLELEKTAIQNYTVTEFQPLYYVAESFNDAKEKVRNFAATIPRPFSVRYDPYTQRIEVL

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 2 non-polymer

description	FE (III) ION
formula_weight	55.8 kDa
src_method	syn
entity_count	1

Entity 3 non-polymer

description	7,8-DIHYDROBIOPTERIN
formula_weight	239.2 kDa
src_method	syn
entity_count	1

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	152

▶

6. Citations (1)

▶

length_a	66.357 Å
length_b	107.991 Å
length_c	124.591 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	8

space_group	C 2 2 21
int_tables_number	20
crystal_system	—

resolution	2.000 Å
resolution_low	20.000 Å
r_factor	—
r_work	0.1997
r_free	0.2459
