1dna

D221(169)N MUTANT DOES NOT PROMOTE OPENING OF THE COFACTOR IMIDAZOLIDINE RING

Method: X-RAY DIFFRACTION D_max: 73.5 Å Quality: REASONABLE

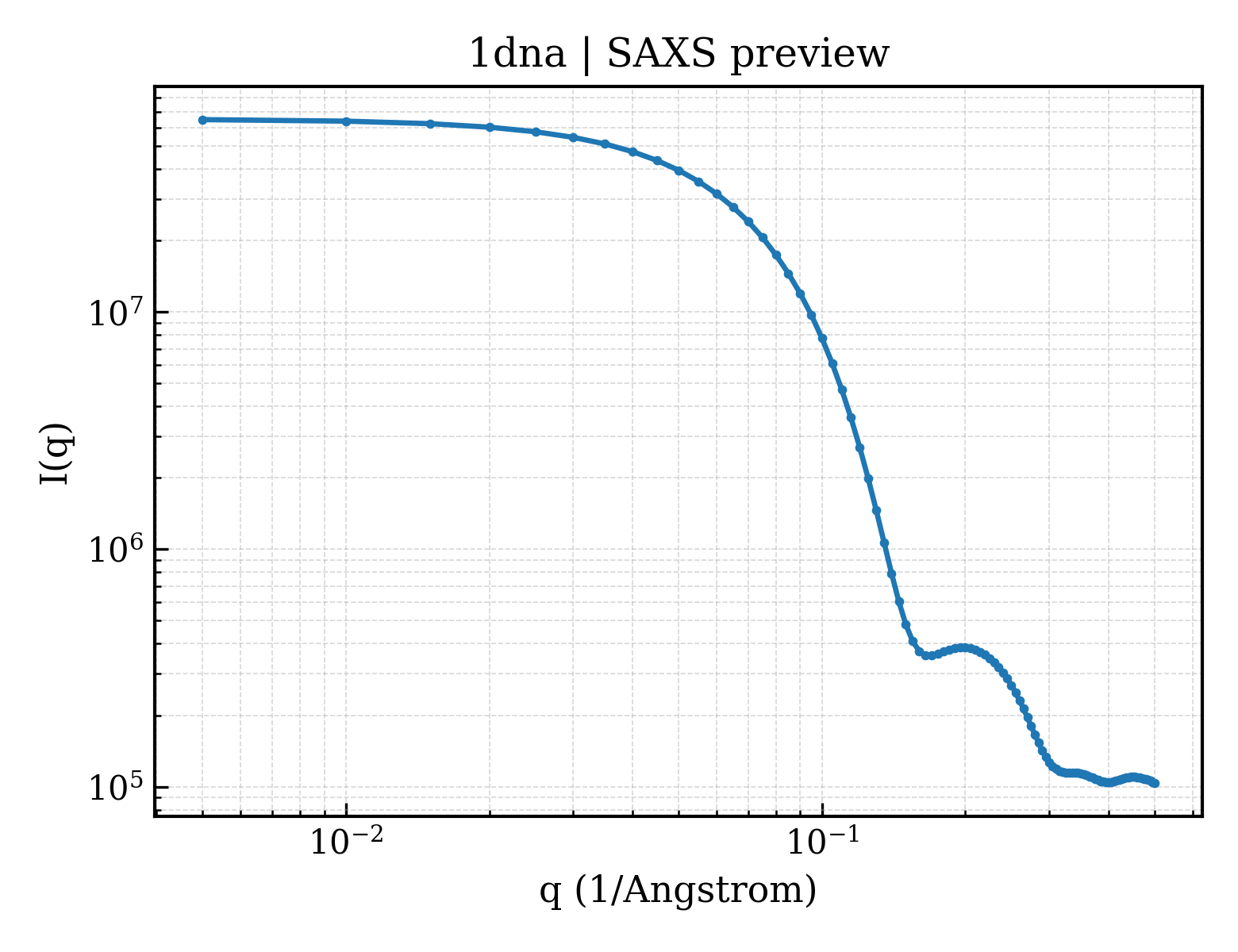

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	1dna
deposition_date	1998-06-25
title	D221(169)N MUTANT DOES NOT PROMOTE OPENING OF THE COFACTOR IMIDAZOLIDINE RING
keywords	TRANSFERASE, ACTIVE SITE MUTANT, REACTION INTERMEDIATE, METHYLTRANSFERASE; TRANSFERASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	24.32 Å
rg_electron	23.02 Å
i0	65040400.00
molecular_weight	62601.0 kDa
excluded_volume	78021 Å³
envelope_volume	88614 Å³
shell_volume	30830 Å³
envelope_diameter	73.7 Å
shell_rg	31.25 Å
envelope_rg	23.25 Å
shape_rg	23.02 Å
total_rg	23.92 Å
total_atoms	4416
n_residues	526
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	73.5 Å
rg_real	24.16 Å
rg_real_error	0.30 Å
i0_real	6.5040e+07
i0_real_error	7.4230e+05
rg_reciprocal	24.20 Å
i0_reciprocal	65040000.0000
total_estimate	0.7341
solution_quality	REASONABLE a REASONABLE solution
n_peaks	2
r_peak_primary	31.5 Å
skewness	0.182
kurtosis	-0.400
angular_range	— – 0.3250 Å⁻¹
current_alpha	0.0000
highest_alpha	15570000.0000
n_real_points	64
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.930; Stabil: 1.000; Sysdev: 0.264; Positv: 1.000; Valcen: 0.987; Smooth: 0.970

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	THYMIDYLATE SYNTHASE
formula_weight	30558.7 kDa
ec_number	2.1.1.45
mutation	D169N
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,B
atom_count	4632

MKQYLELMQKVLDEGTQKNDRTGTGTLSIFGHQMRFNLQDGFPLVTTKRCHLRSIIHELLWFLQGDTNIAYLHENNVTIWDEWADENGDLGPVYGKQWRAWPTPDGRHIDQITTVLNQLKNDPDSRRIIVSAWNVGELDKMALAPCHAFFQFYVADGKLSCQLYQRSCNVFLGLPFNIASYALLVHMMAQQCDLEVGDFVWTGGDTHLYSNHMDQTHLQLSREPRPLPKLIIKRKPESIFDYRFEDFEIEGYDPHPGIKAPVAI

Source

organism	Escherichia coli
ncbi_taxonomy_id	562
host_organism	Escherichia coli

Entity 2 non-polymer

description	;2'-DEOXYURIDINE 5'-MONOPHOSPHATE ;
formula_weight	308.2 kDa
src_method	syn
entity_count	2

Entity 3 non-polymer

description	10-PROPARGYL-5,8-DIDEAZAFOLIC ACID
formula_weight	477.5 kDa
src_method	syn
entity_count	2

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	216

▶

6. Citations (3)

▶

length_a	127.221 Å
length_b	127.221 Å
length_c	68.178 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	120.00 °
z_pdb	12

space_group	P 63
int_tables_number	173
crystal_system	—

resolution	2.200 Å
resolution_low	7.000 Å
r_factor	0.1800
r_work	0.1800
r_free	0.2260

fit	/app/data/saxs_computation/dn/1dna/1dna.fit
pddf	/app/data/pr_computation/dn/1dna/1dna.pr.out
profile	/app/data/saxs_computation/dn/1dna/1dna.dat
