1dnv
PARVOVIRUS (DENSOVIRUS) FROM GALLERIA MELLONELLA
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1dnv |
| deposition_date | 1998-07-22 |
| title | PARVOVIRUS (DENSOVIRUS) FROM GALLERIA MELLONELLA |
| keywords | PARVOVIRUS, DENSOVIRUS, CAPSID PROTEIN, VIRAL CAPSID, Icosahedral virus, Virus; VIRUS |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 25.62 Å |
| rg_electron | 25.30 Å |
| i0 | 35137800.00 |
| molecular_weight | 45402.0 kDa |
| excluded_volume | 56697 ų |
| envelope_volume | 73750 ų |
| shell_volume | 25373 ų |
| envelope_diameter | 106.9 Å |
| shell_rg | 31.08 Å |
| envelope_rg | 26.50 Å |
| shape_rg | 25.31 Å |
| total_rg | 25.97 Å |
| total_atoms | 3197 |
| n_residues | 415 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

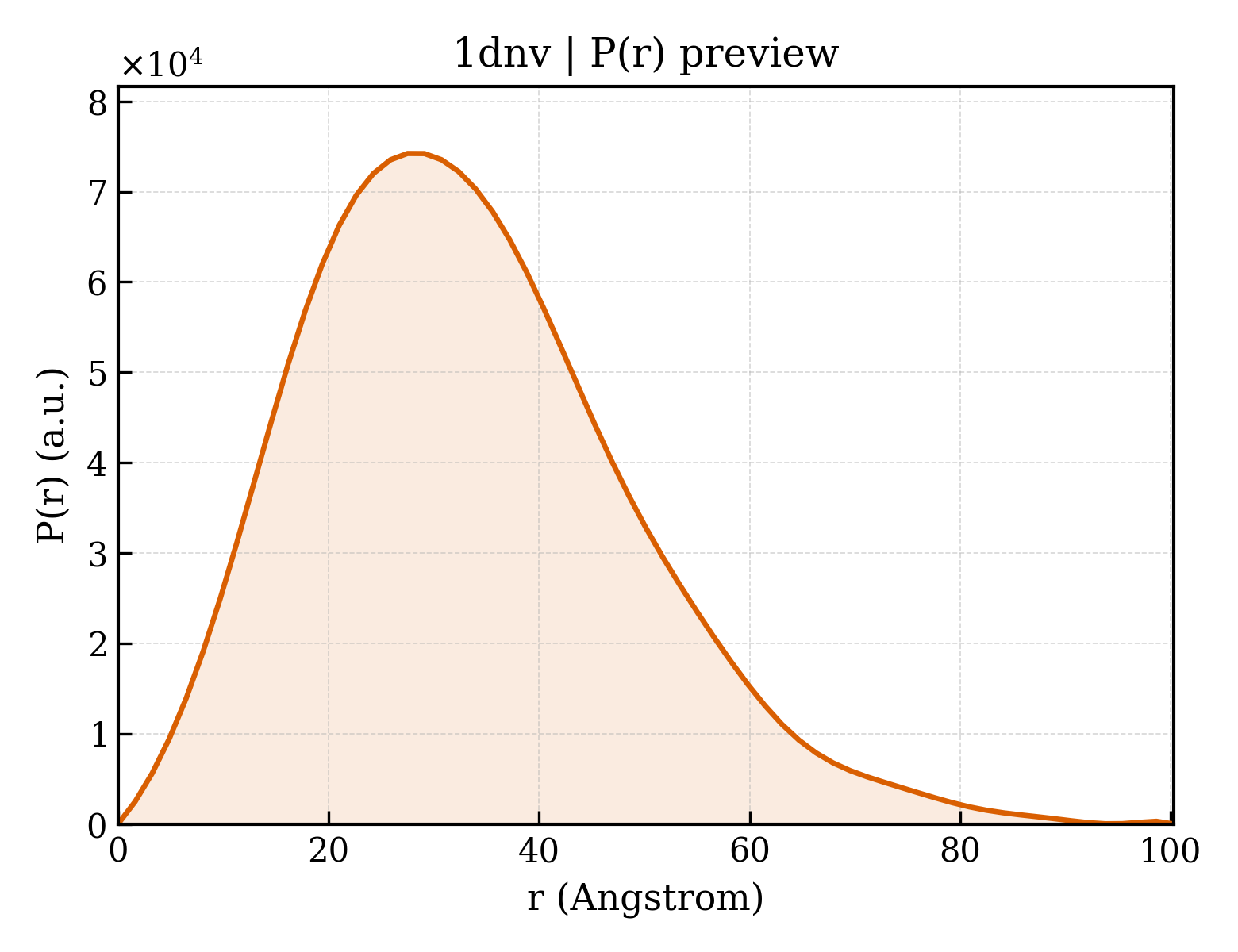

3. P(r) Analysis (GNOM)
| dmax | 100.3 Å |
| rg_real | 25.76 Å |
| rg_real_error | 1.18 Å |
| i0_real | 3.5140e+07 |
| i0_real_error | 5.4090e+05 |
| rg_reciprocal | 25.71 Å |
| i0_reciprocal | 35140000.0000 |
| total_estimate | 0.7897 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 27.5 Å |
| skewness | 0.582 |
| kurtosis | 0.253 |
| angular_range | — – 0.3100 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 5516000.0000 |
| n_real_points | 63 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.513; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.753; Smooth: 0.968 |
