1dny
SOLUTION STRUCTURE OF PCP, A PROTOTYPE FOR THE PEPTIDYL CARRIER DOMAINS OF MODULAR PEPTIDE SYNTHETASES

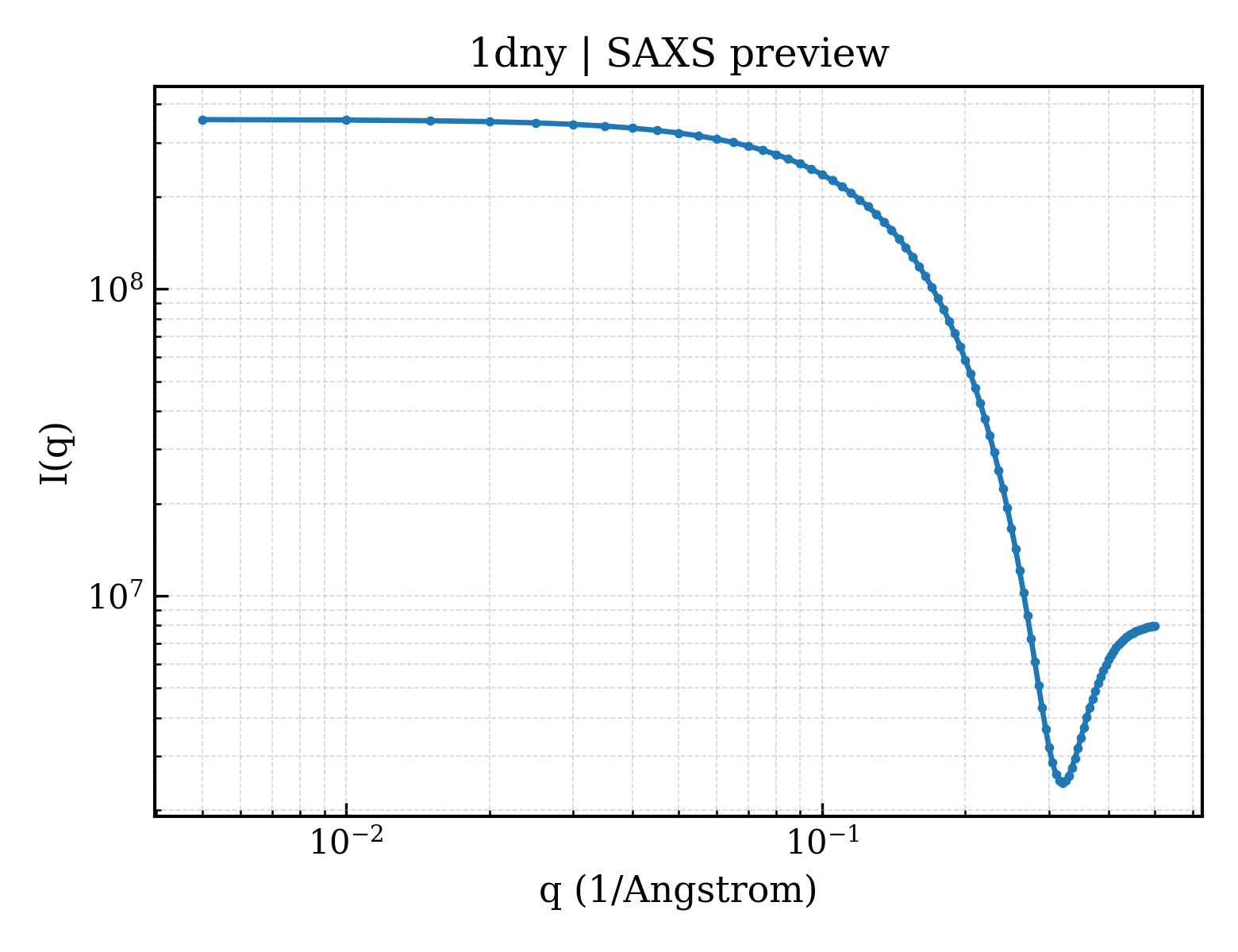

SAXS Profile

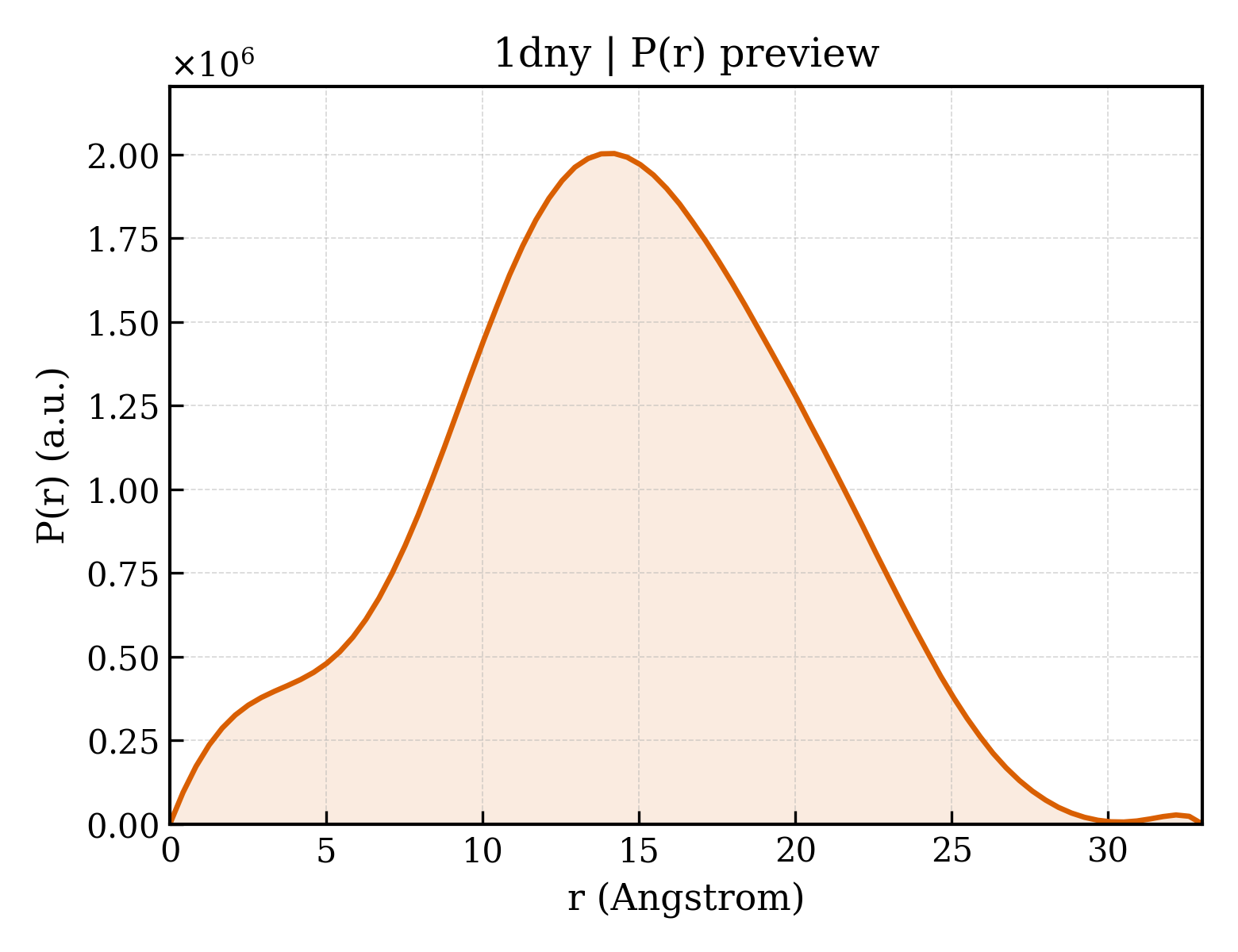

P(r) Distribution
1. Structure Basics
| entry_id | 1dny |
| deposition_date | 1999-12-17 |
| title | SOLUTION STRUCTURE OF PCP, A PROTOTYPE FOR THE PEPTIDYL CARRIER DOMAINS OF MODULAR PEPTIDE SYNTHETASES |
| keywords | ;FOUR-HELIX BUNDLE, MODULAR ENZYME, FLEXIBLE REGION, 4'-PHOSPHOPANTETHEINYL COFACTOR, modular peptide synthetases, nonribosomal peptide synthesis, peptidyl carrier protein (PCP), LIGASE ;; LIGASE |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 11.09 Å |
| rg_electron | 10.97 Å |
| i0 | 356307000.00 |
| molecular_weight | 173560.0 kDa |
| excluded_volume | 222850 ų |
| envelope_volume | 16395 ų |
| shell_volume | 11001 ų |
| envelope_diameter | 40.3 Å |
| shell_rg | 18.51 Å |
| envelope_rg | 12.90 Å |
| shape_rg | 10.96 Å |
| total_rg | 11.21 Å |
| total_atoms | 24927 |
| n_residues | 1596 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 33.0 Å |
| rg_real | 10.98 Å |
| rg_real_error | 0.19 Å |
| i0_real | 3.5630e+08 |
| i0_real_error | 3.3650e+06 |
| rg_reciprocal | 10.99 Å |
| i0_reciprocal | 356300000.0000 |
| total_estimate | 0.8755 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 14.2 Å |
| skewness | -0.060 |
| kurtosis | -0.295 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 203400.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.830; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.955; Smooth: 0.934 |
