1dok
MONOCYTE CHEMOATTRACTANT PROTEIN 1, P-FORM

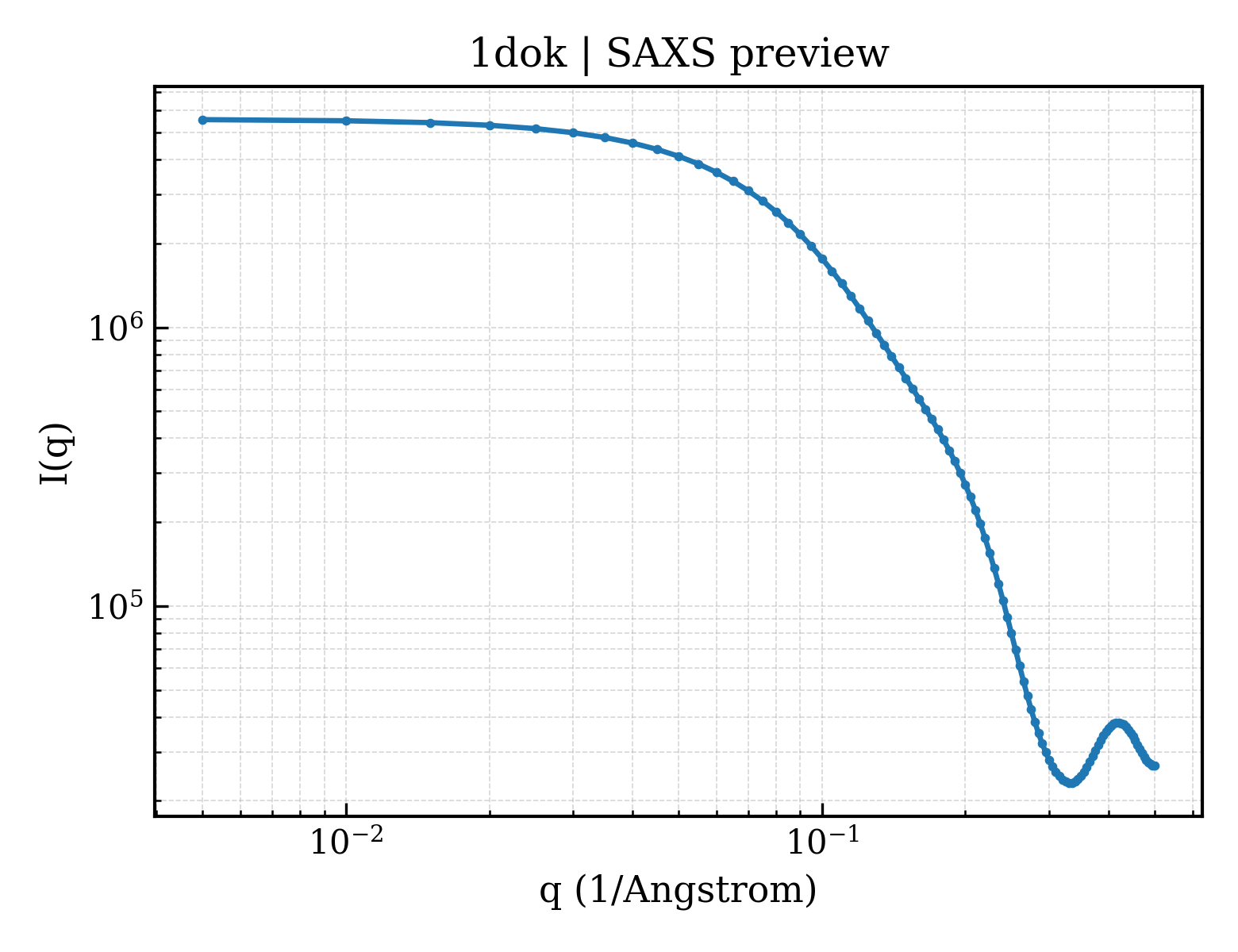

SAXS Profile

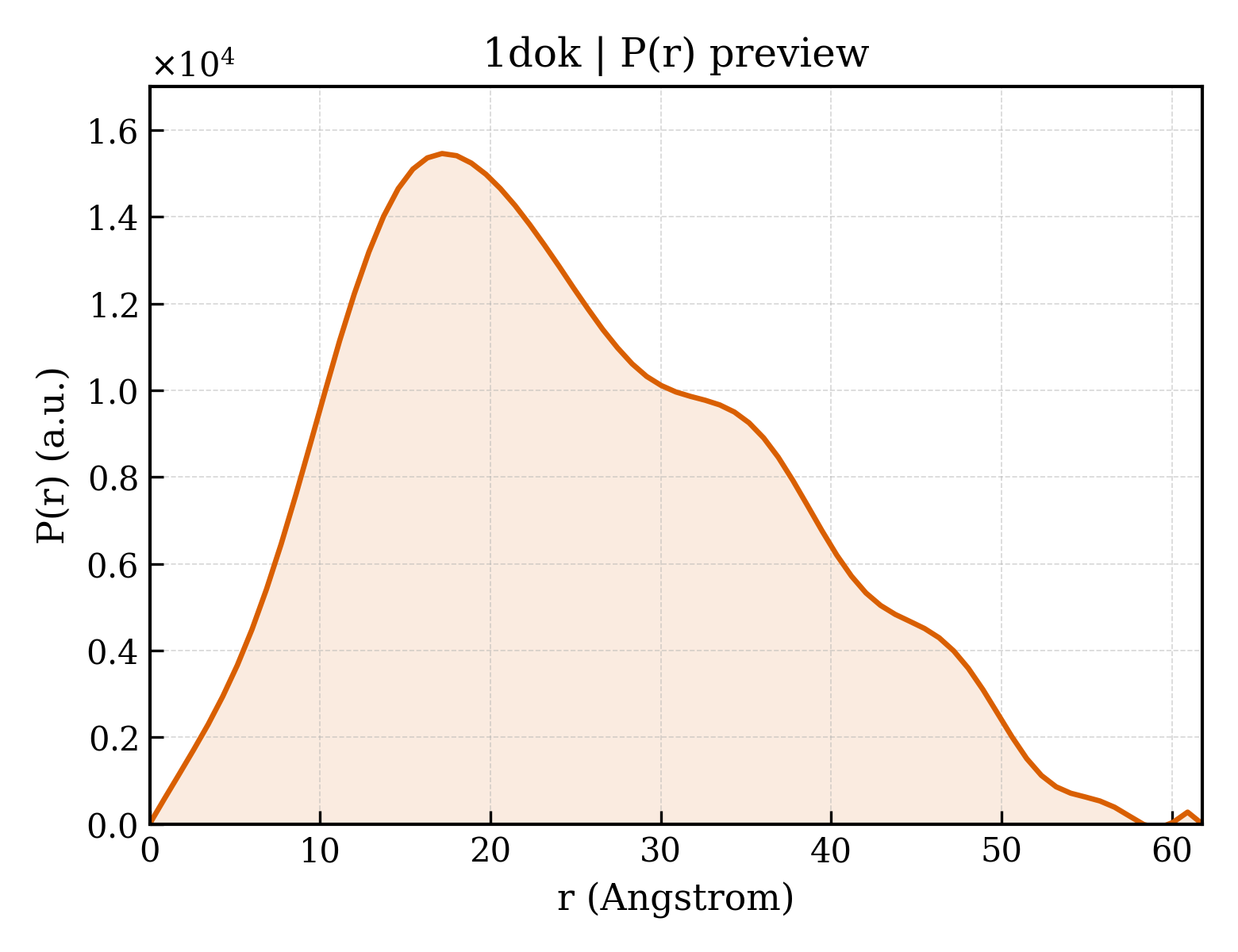

P(r) Distribution
1. Structure Basics
| entry_id | 1dok |
| deposition_date | 1996-11-27 |
| title | MONOCYTE CHEMOATTRACTANT PROTEIN 1, P-FORM |
| keywords | CHEMOATTRACTANT, CYTOKINE; CHEMOATTRACTANT |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 19.15 Å |
| rg_electron | 18.55 Å |
| i0 | 5581370.00 |
| molecular_weight | 16689.0 kDa |
| excluded_volume | 20709 ų |
| envelope_volume | 26269 ų |
| shell_volume | 12576 ų |
| envelope_diameter | 62.3 Å |
| shell_rg | 23.48 Å |
| envelope_rg | 18.69 Å |
| shape_rg | 18.59 Å |
| total_rg | 19.28 Å |
| total_atoms | 1160 |
| n_residues | 144 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 61.8 Å |
| rg_real | 19.26 Å |
| rg_real_error | 0.47 Å |
| i0_real | 5.5810e+06 |
| i0_real_error | 7.0720e+04 |
| rg_reciprocal | 19.24 Å |
| i0_reciprocal | 5581000.0000 |
| total_estimate | 0.5988 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 17.2 Å |
| skewness | 0.396 |
| kurtosis | -0.570 |
| angular_range | — – 0.4150 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2011000.0000 |
| n_real_points | 73 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.804; Stabil: 0.997; Sysdev: 0.182; Positv: 1.000; Valcen: 0.831; Smooth: 0.000 |
