1dox
1H AND 15N SEQUENTIAL ASSIGNMENT, SECONDARY STRUCTURE AND TERTIARY FOLD OF [2FE-2S] FERREDOXIN FROM SYNECHOCYSTIS SP. PCC 6803

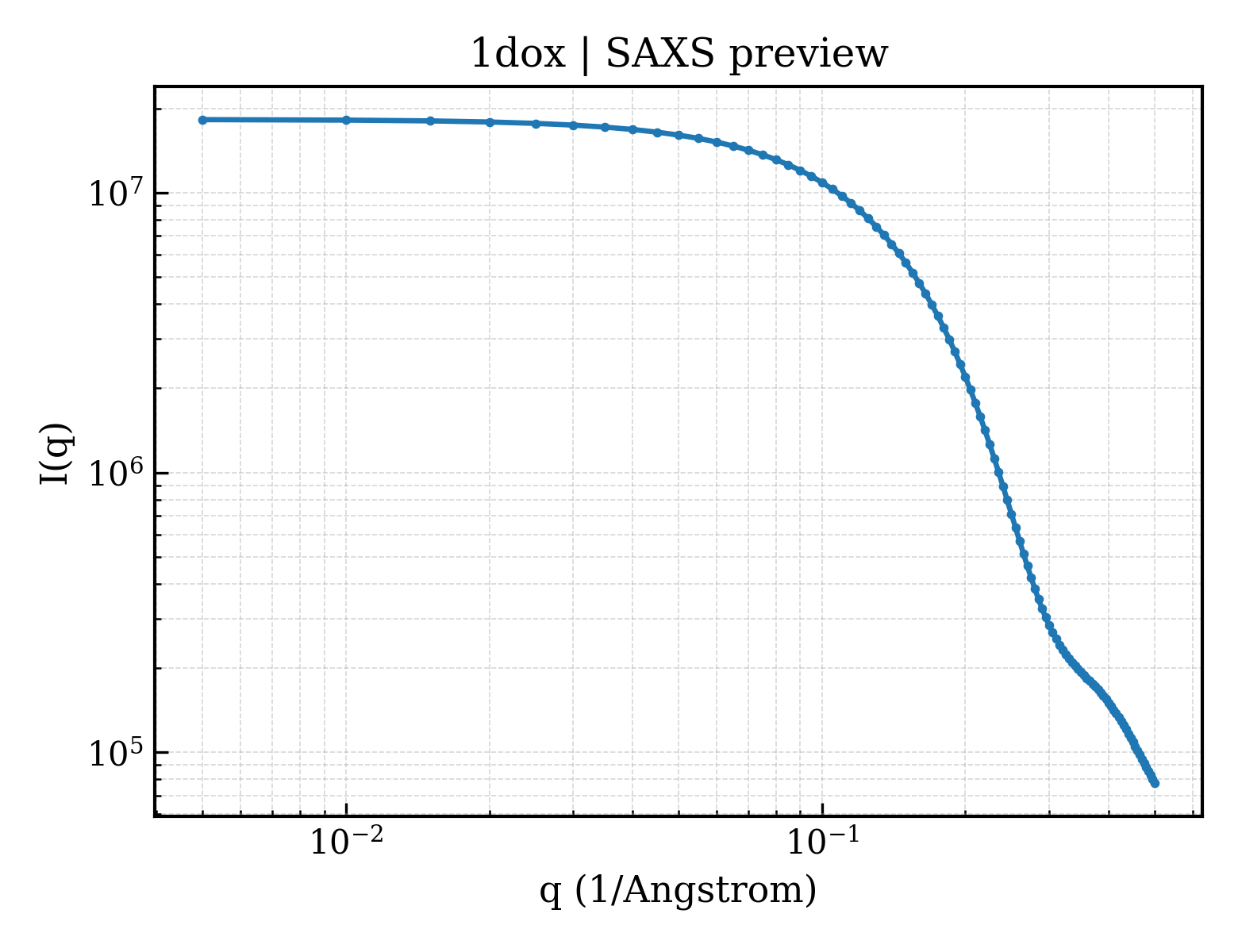

SAXS Profile

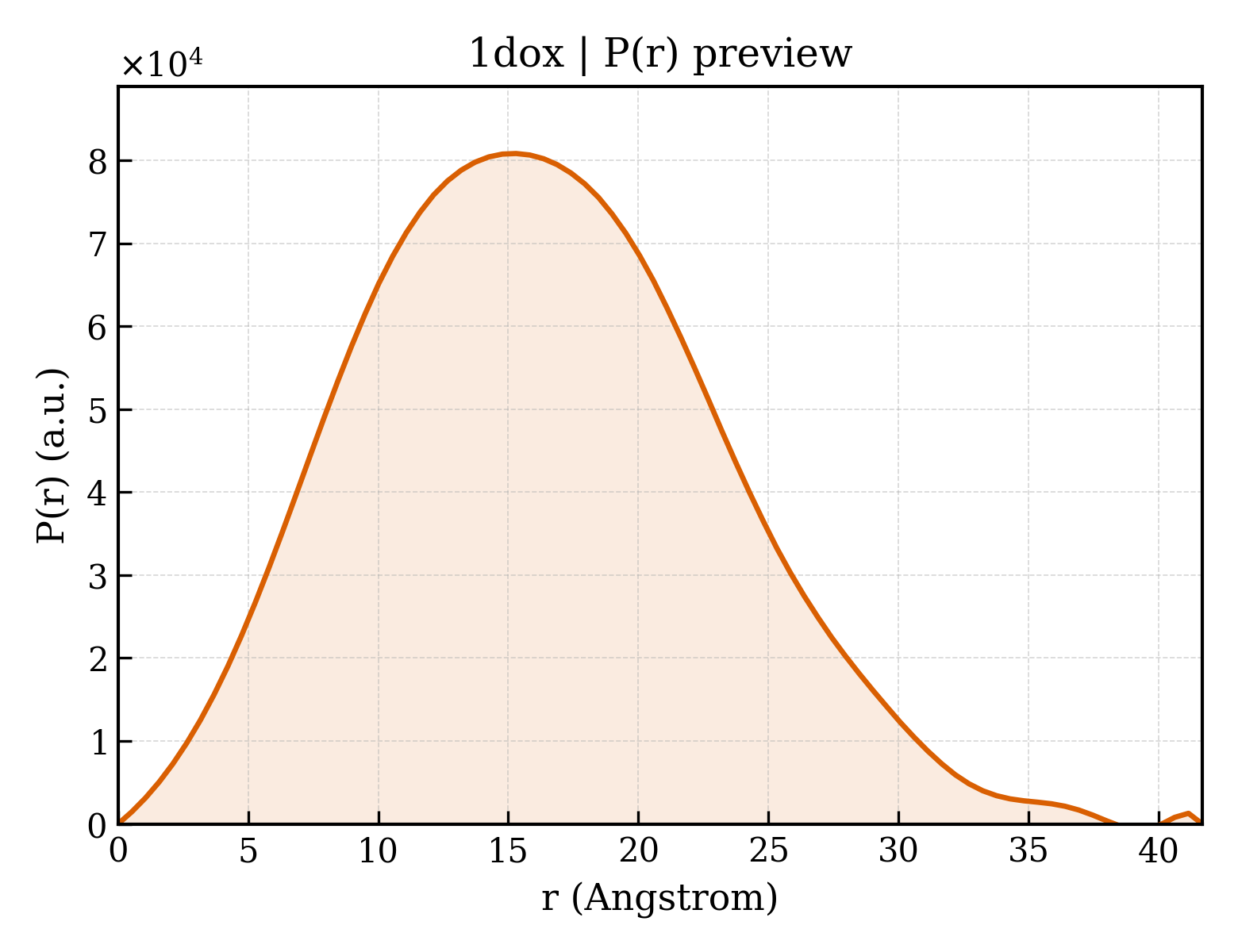

P(r) Distribution
1. Structure Basics
| entry_id | 1dox |
| deposition_date | 1995-09-14 |
| title | 1H AND 15N SEQUENTIAL ASSIGNMENT, SECONDARY STRUCTURE AND TERTIARY FOLD OF [2FE-2S] FERREDOXIN FROM SYNECHOCYSTIS SP. PCC 6803 |
| keywords | IRON-SULFUR PROTEIN, ELECTRON TRANSPORT; ELECTRON TRANSPORT |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 12.44 Å |
| rg_electron | 12.00 Å |
| i0 | 18254500.00 |
| molecular_weight | 30983.0 kDa |
| excluded_volume | 37500 ų |
| envelope_volume | 19195 ų |
| shell_volume | 12073 ų |
| envelope_diameter | 43.6 Å |
| shell_rg | 19.32 Å |
| envelope_rg | 13.70 Å |
| shape_rg | 12.03 Å |
| total_rg | 12.68 Å |
| total_atoms | 4098 |
| n_residues | 288 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 41.7 Å |
| rg_real | 12.40 Å |
| rg_real_error | 0.31 Å |
| i0_real | 1.8250e+07 |
| i0_real_error | 2.1510e+05 |
| rg_reciprocal | 12.40 Å |
| i0_reciprocal | 18250000.0000 |
| total_estimate | 0.8026 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 15.3 Å |
| skewness | 0.282 |
| kurtosis | -0.252 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 522600.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.814; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.987; Smooth: 0.000 |
