1dpo

STRUCTURE OF RAT TRYPSIN

Method: X-RAY DIFFRACTION D_max: 52.4 Å Quality: EXCELLENT

SAXS Profile

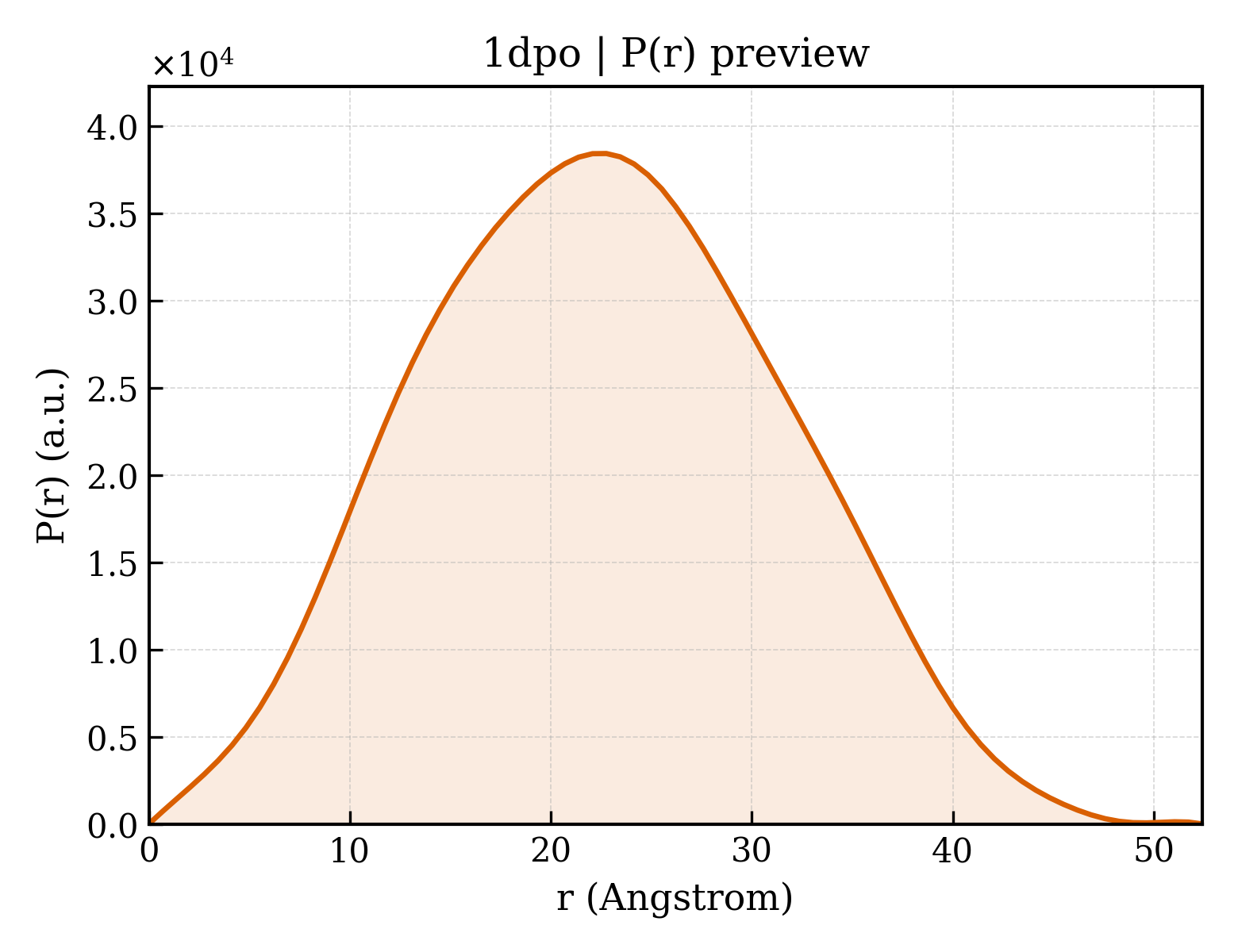

P(r) Distribution

▼

1. Structure Basics

entry_id	1dpo
deposition_date	1997-03-31
title	STRUCTURE OF RAT TRYPSIN
keywords	HYDROLASE, SERINE PROTEASE, DIGESTION, PANCREAS, ZYMOGEN, MULTIGENE FAMILY; SERINE PROTEASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	17.26 Å
rg_electron	16.15 Å
i0	11476100.00
molecular_weight	24400.0 kDa
excluded_volume	30097 Å³
envelope_volume	32929 Å³
shell_volume	16752 Å³
envelope_diameter	50.9 Å
shell_rg	22.54 Å
envelope_rg	16.40 Å
shape_rg	16.16 Å
total_rg	17.10 Å
total_atoms	1704
n_residues	223
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	52.4 Å
rg_real	17.13 Å
rg_real_error	0.21 Å
i0_real	1.1480e+07
i0_real_error	1.1960e+05
rg_reciprocal	17.14 Å
i0_reciprocal	11480000.0000
total_estimate	0.9046
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	2
r_peak_primary	22.8 Å
skewness	0.096
kurtosis	-0.494
angular_range	— – 0.4600 Å⁻¹
current_alpha	0.0000
highest_alpha	2876000.0000
n_real_points	77
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.925; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.985; Smooth: 0.997

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (5)

Entity 1 polymer

description	TRYPSIN
formula_weight	23830.9 kDa
ec_number	3.4.21.4
mutation	S195C
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	1926

IVGGYTCQENSVPYQVSLNSGYHFCGGSLINDQWVVSAAHCYKSRIQVRLGEHNINVLEGNEQFVNAAKIIKHPNFDRKTLNNDIMLIKLSSPVKLNARVATVALPSSCAPAGTQCLISGWGNTLSSGVNEPDLLQCLDAPLLPQADCEASYPGKITDNMVCVGFLEGGKDSCQGDCGGPVVCNGELQGIVSWGYGCALPDNPGVYTKVCNYVDWIQDTIAAN

Source

organism	Rattus rattus
common_name	black rat
ncbi_taxonomy_id	10117
host_organism	Escherichia coli

Entity 2 non-polymer

description	CALCIUM ION
formula_weight	40.1 kDa
src_method	syn
entity_count	1

Entity 3 non-polymer

description	SULFATE ION
formula_weight	96.1 kDa
src_method	syn
entity_count	2

Entity 4 non-polymer

description	BENZAMIDINE
formula_weight	120.2 kDa
src_method	syn
entity_count	3

Entity 5 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	217

▶

6. Citations (2)

▶

length_a	123.120 Å
length_b	123.120 Å
length_c	123.120 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	24

space_group	I 2 3
int_tables_number	197
crystal_system	—

resolution	1.590 Å
resolution_low	12.000 Å
r_factor	—
r_work	0.1740
r_free	—
