1dqc
SOLUTION STRUCTURE OF TACHYCITIN, AN ANTIMICROBIAL PROTEIN WITH CHITIN-BINDING FUNCTION

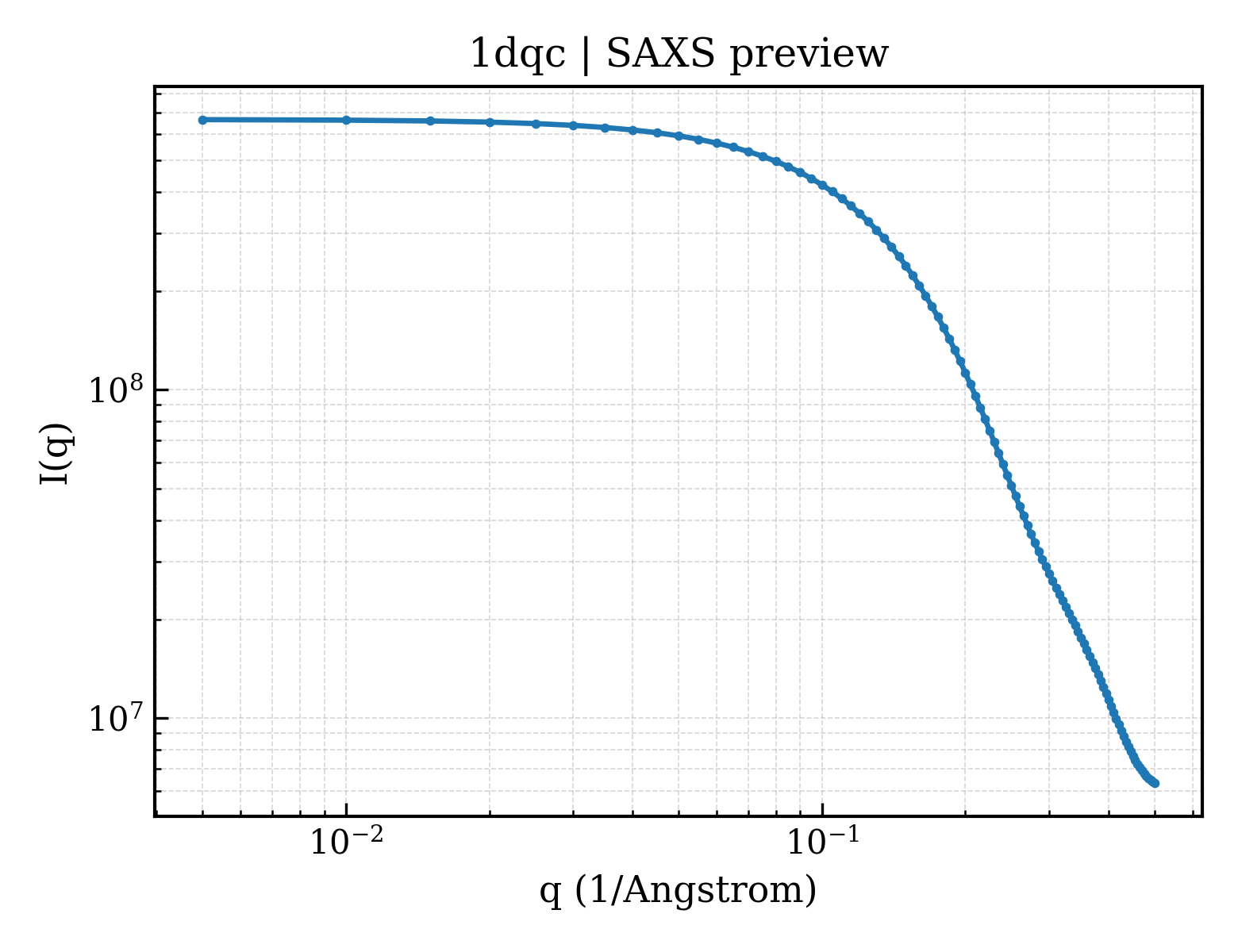

SAXS Profile

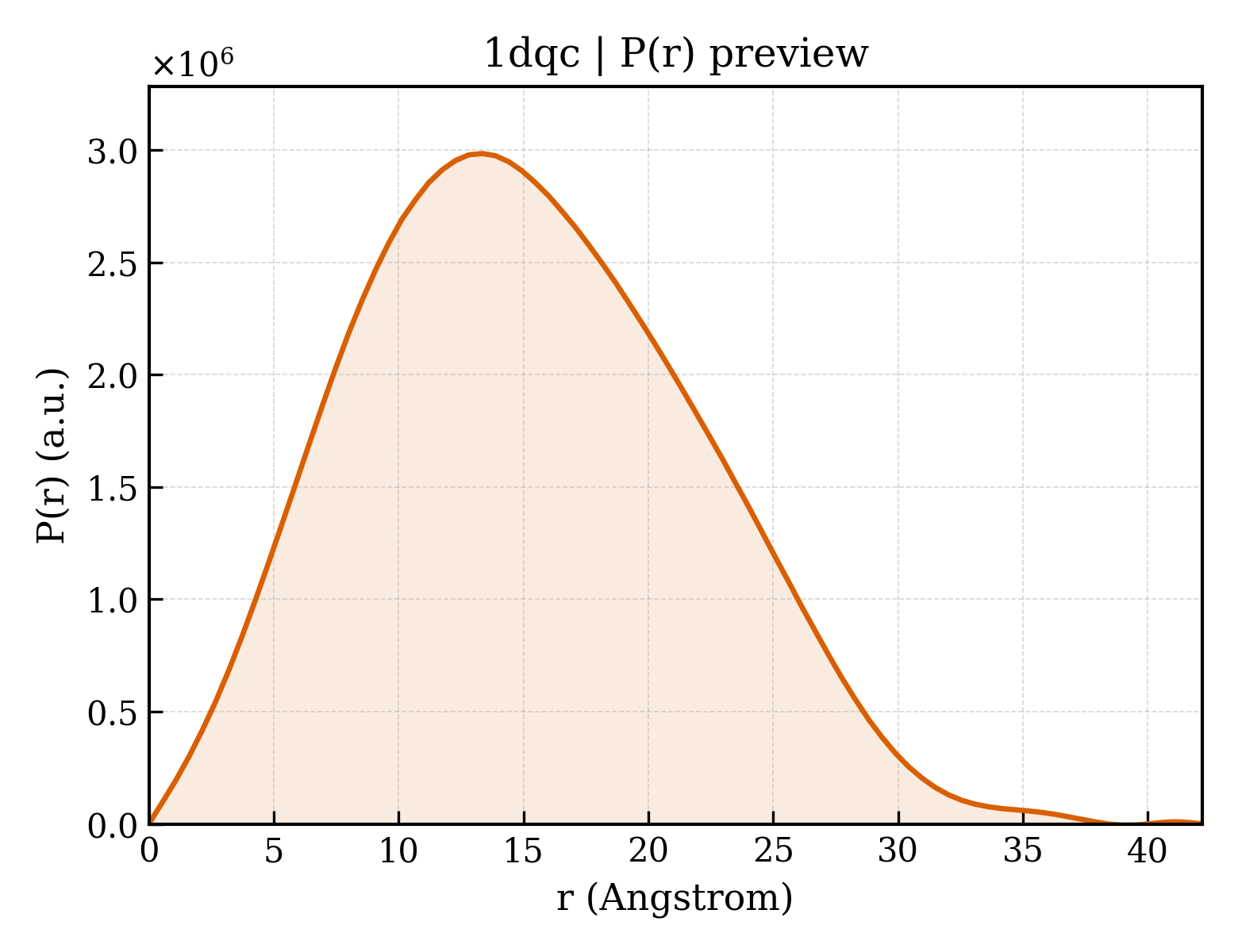

P(r) Distribution
1. Structure Basics
| entry_id | 1dqc |
| deposition_date | 2000-01-04 |
| title | SOLUTION STRUCTURE OF TACHYCITIN, AN ANTIMICROBIAL PROTEIN WITH CHITIN-BINDING FUNCTION |
| keywords | disulfide-rich, ANTIMICROBIAL PROTEIN; ANTIMICROBIAL PROTEIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 11.73 Å |
| rg_electron | 12.32 Å |
| i0 | 666514000.00 |
| molecular_weight | 209420.0 kDa |
| excluded_volume | 257710 ų |
| envelope_volume | 24011 ų |
| shell_volume | 13512 ų |
| envelope_diameter | 49.3 Å |
| shell_rg | 20.83 Å |
| envelope_rg | 15.47 Å |
| shape_rg | 12.31 Å |
| total_rg | 12.54 Å |
| total_atoms | 28275 |
| n_residues | 1825 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 42.2 Å |
| rg_real | 11.73 Å |
| rg_real_error | 0.42 Å |
| i0_real | 6.6650e+08 |
| i0_real_error | 7.2860e+06 |
| rg_reciprocal | 11.73 Å |
| i0_reciprocal | 666500000.0000 |
| total_estimate | 0.8591 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 13.3 Å |
| skewness | 0.292 |
| kurtosis | -0.370 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 119200.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.782; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.839; Smooth: 0.981 |
