1dqe
BOMBYX MORI PHEROMONE BINDING PROTEIN
SAXS Profile

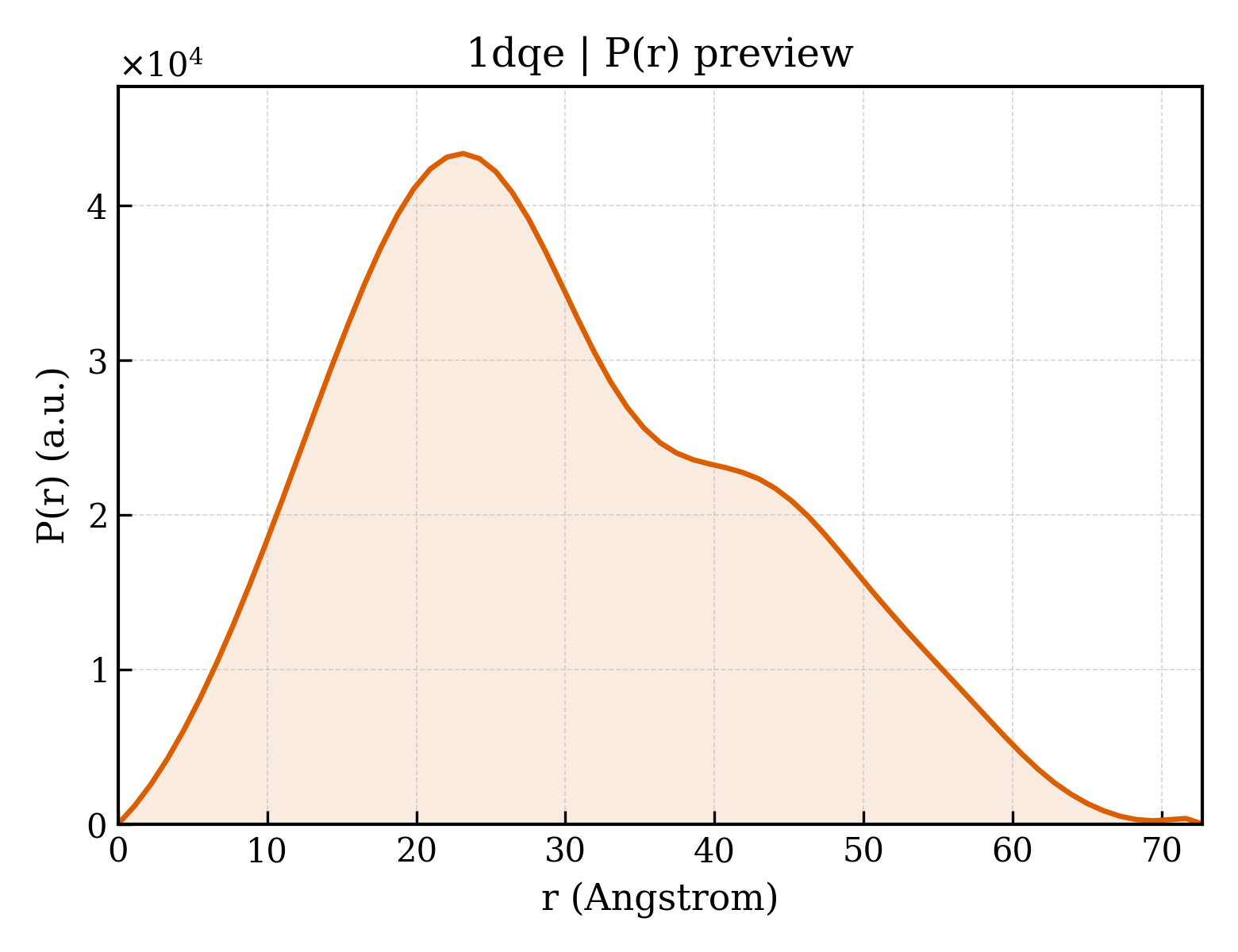

P(r) Distribution
1. Structure Basics
| entry_id | 1dqe |
| deposition_date | 2000-01-04 |
| title | BOMBYX MORI PHEROMONE BINDING PROTEIN |
| keywords | HELICAL BUNDLE, TRANSPORT PROTEIN; TRANSPORT PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 22.75 Å |
| rg_electron | 21.94 Å |
| i0 | 17485200.00 |
| molecular_weight | 31178.0 kDa |
| excluded_volume | 38739 ų |
| envelope_volume | 46325 ų |
| shell_volume | 18434 ų |
| envelope_diameter | 73.8 Å |
| shell_rg | 27.56 Å |
| envelope_rg | 22.00 Å |
| shape_rg | 21.94 Å |
| total_rg | 22.69 Å |
| total_atoms | 2174 |
| n_residues | 274 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 72.7 Å |
| rg_real | 22.84 Å |
| rg_real_error | 0.47 Å |
| i0_real | 1.7490e+07 |
| i0_real_error | 2.4570e+05 |
| rg_reciprocal | 22.82 Å |
| i0_reciprocal | 17490000.0000 |
| total_estimate | 0.8717 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 23.1 Å |
| skewness | 0.403 |
| kurtosis | -0.537 |
| angular_range | — – 0.3500 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 4274000.0000 |
| n_real_points | 67 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.803; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.959; Smooth: 0.961 |
