1drs
THREE-DIMENSIONAL STRUCTURE OF THE RGD-CONTAINING NEUROTOXIN HOMOLOGUE, DENDROASPIN

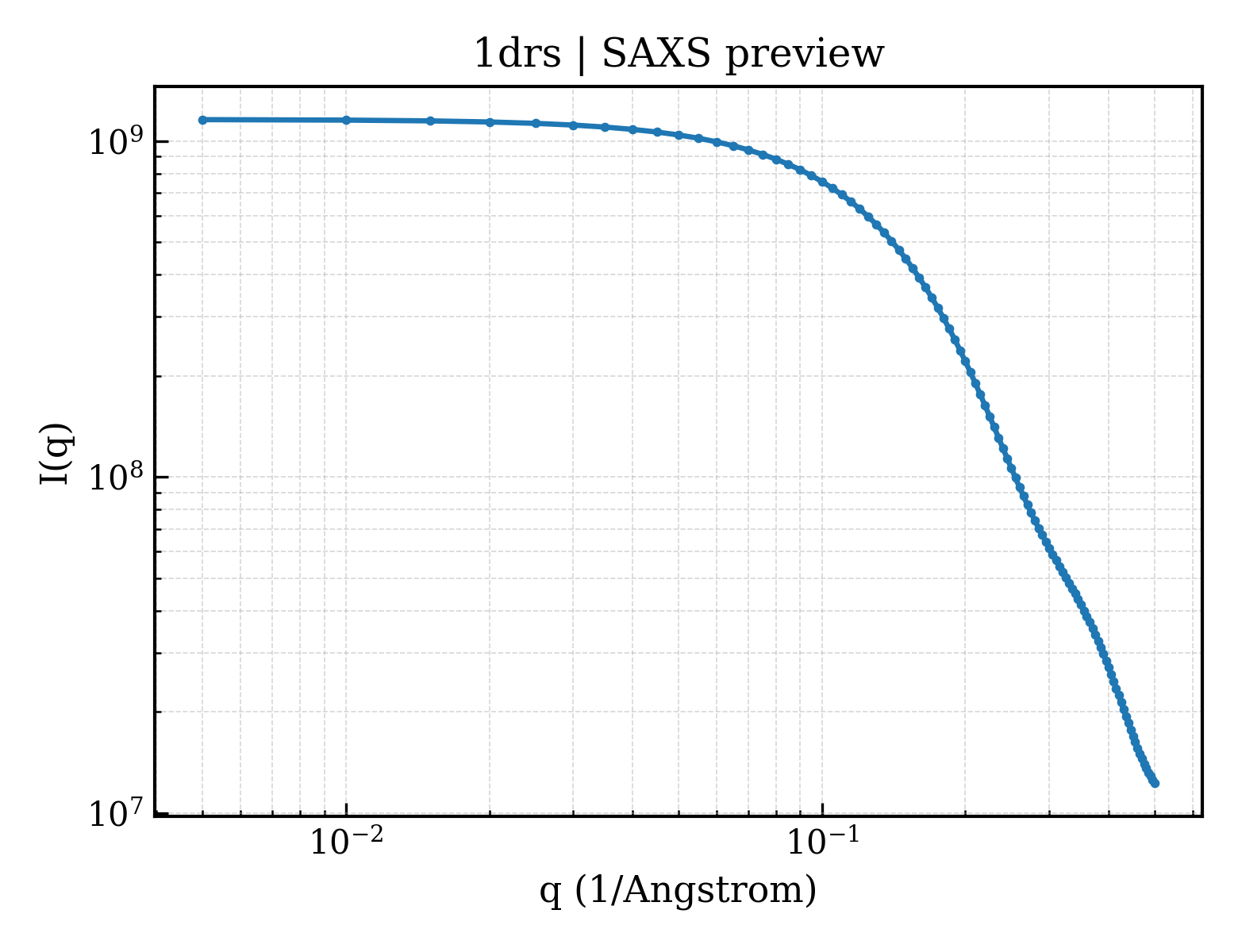

SAXS Profile

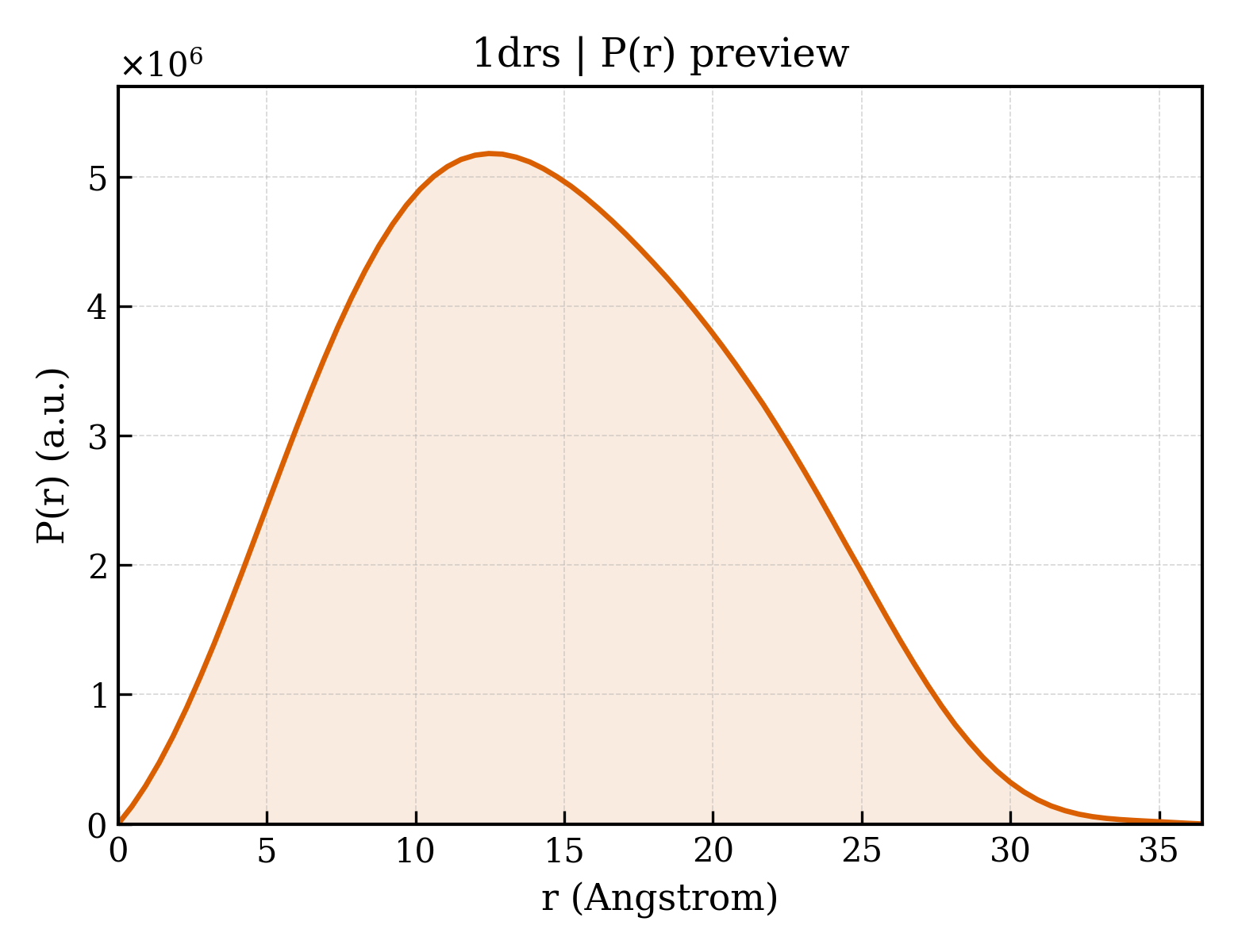

P(r) Distribution
1. Structure Basics
| entry_id | 1drs |
| deposition_date | 1994-09-29 |
| title | THREE-DIMENSIONAL STRUCTURE OF THE RGD-CONTAINING NEUROTOXIN HOMOLOGUE, DENDROASPIN |
| keywords | CELL ADHESION PROTEIN; CELL ADHESION PROTEIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 11.30 Å |
| rg_electron | 11.72 Å |
| i0 | 1159330000.00 |
| molecular_weight | 263390.0 kDa |
| excluded_volume | 318340 ų |
| envelope_volume | 17444 ų |
| shell_volume | 11079 ų |
| envelope_diameter | 46.1 Å |
| shell_rg | 19.14 Å |
| envelope_rg | 13.98 Å |
| shape_rg | 11.74 Å |
| total_rg | 11.76 Å |
| total_atoms | 35139 |
| n_residues | 2301 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 36.5 Å |
| rg_real | 11.28 Å |
| rg_real_error | 0.16 Å |
| i0_real | 1.1590e+09 |
| i0_real_error | 1.1100e+07 |
| rg_reciprocal | 11.28 Å |
| i0_reciprocal | 1159000000.0000 |
| total_estimate | 0.6758 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 1 |
| r_peak_primary | 12.5 Å |
| skewness | 0.209 |
| kurtosis | -0.602 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0017 |
| highest_alpha | 65840.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.950; Stabil: 1.000; Sysdev: 0.000; Positv: 1.000; Valcen: 0.953; Smooth: 0.979 |
