SAXSdb — 1ds7

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

FMN-DEPENDENT NITROREDUCTASE

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	FLAVIN MONONUCLEOTIDE × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NFNB_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–217； UniProt 1–217 Author chain B； PDBConstruct 1–217； UniProt 1–217

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ds7
Deposition date deposition_date	2000-01-07
Structure title title	A MINOR FMN-DEPENDENT NITROREDUCTASE FROM ESCHERICHIA COLI B
Keywords keywords	NAD(P)H-QUINONE REDUCTASE, FMN, NITROREDUCTASE, FLAVOPROTEIN, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1ds7__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1ds7__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

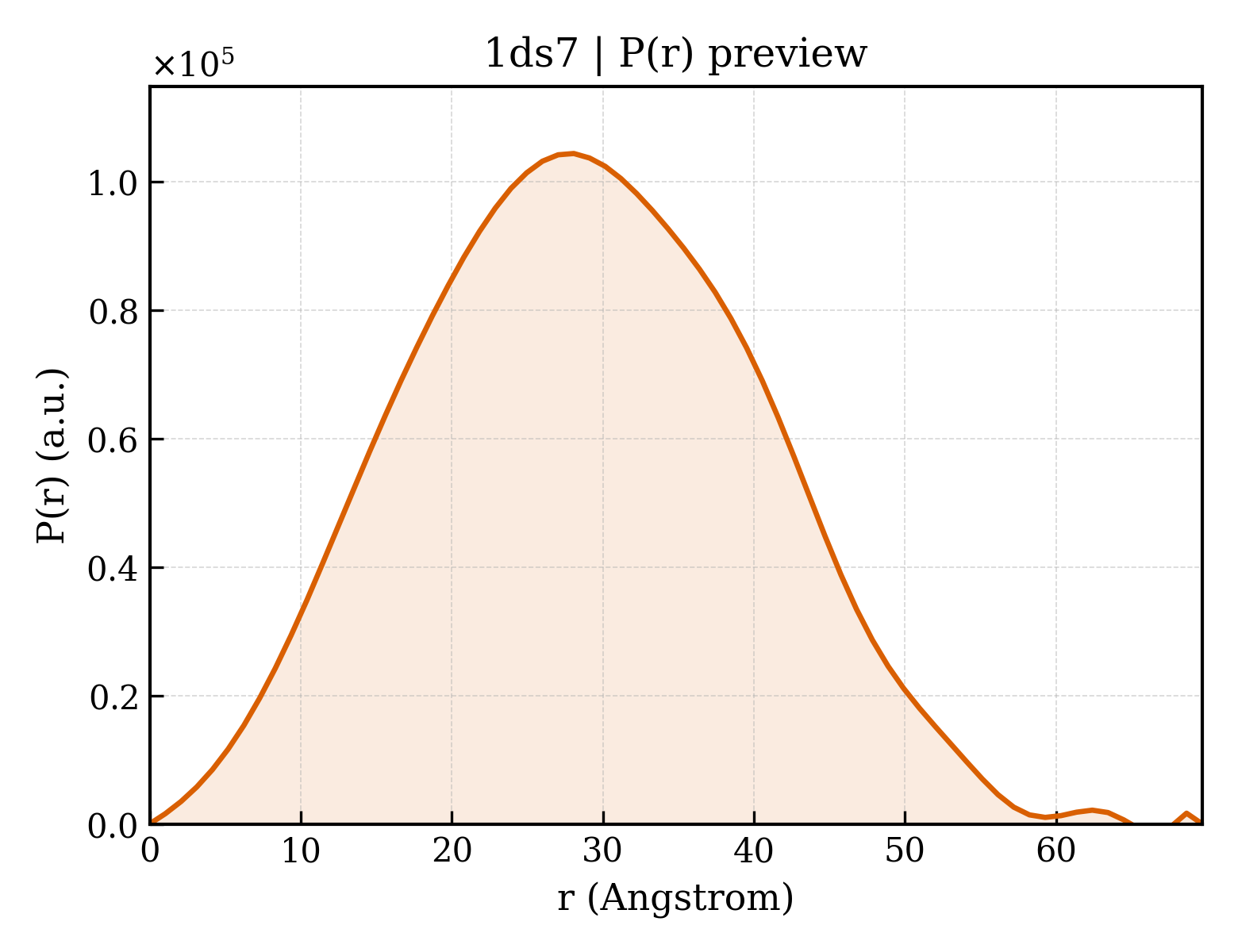

1ds7__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	22.04 Å
Rg (electron density)	20.88 Å
Total Rg	21.84 Å
Atom count	3430
Residues	434
Excluded volume	60944 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1ds7__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	FMN-DEPENDENT NITROREDUCTASE
Molecular weight formula_weight	23937.2 kDa
EC 编号 ec_number	1.6.99.7
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	3648

MDIISVALKRHSTKAFDASKKLTPEQAEQIKTLLQYSPSSTNSQPWHFIVASTEEGKARVAKSAAGNYVFNERKMLDASHVVVFCAKTAMDDVWLKLVVDQEDADGRFATPEAKAANDKGRKFFADMHRKDLHDDAEWMAKQVYLNVGNFLLGVAALGLDAVPIEGFDAAILDAEFGLKEKGYTSLVVVPVGHHSVEDFNATLPKSRLPQNITLTEV

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	37762
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	FLAVIN MONONUCLEOTIDE
Molecular weight formula_weight	456.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	218

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1ds7a_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.90 — FMN-dependent nitroreductase-like
Superfamily Superfamily superfamily	d.90.1 — FMN-dependent nitroreductase-like
Family Family family	d.90.1.1 — NADH oxidase/flavin reductase

Domain ID domain_id	d1ds7b_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.90 — FMN-dependent nitroreductase-like
Superfamily Superfamily superfamily	d.90.1 — FMN-dependent nitroreductase-like
Family Family family	d.90.1.1 — NADH oxidase/flavin reductase

CATH v4.4 (2 domains)

Domain ID domain_id	1ds7A00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	109 — NADH Oxidase
Homologous superfamily homologous superfamily	10 — NADH Oxidase

Domain ID domain_id	1ds7B00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	109 — NADH Oxidase
Homologous superfamily homologous superfamily	10 — NADH Oxidase

▶

Unit-cell length a length_a	57.740 Å
Unit-cell length b length_b	57.740 Å
Unit-cell length c length_c	275.510 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 41 21 2
Space-group number int_tables_number	92
Crystal system crystal_system	—

Resolution resolution	2.060 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2080
R_work r_work	0.2030
R_free r_free	0.2670
