1dst
MUTANT OF FACTOR D WITH ENHANCED CATALYTIC ACTIVITY

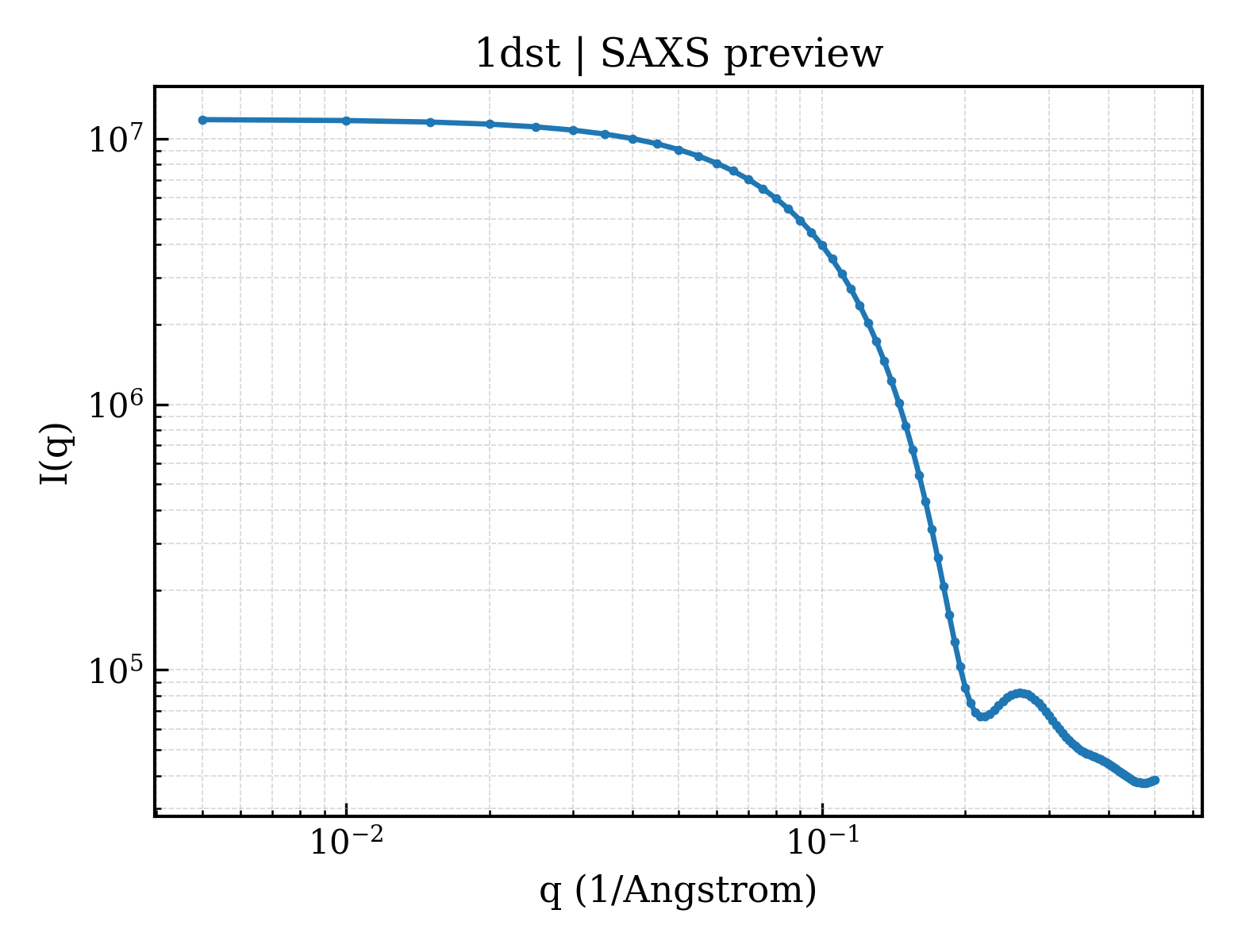

SAXS Profile

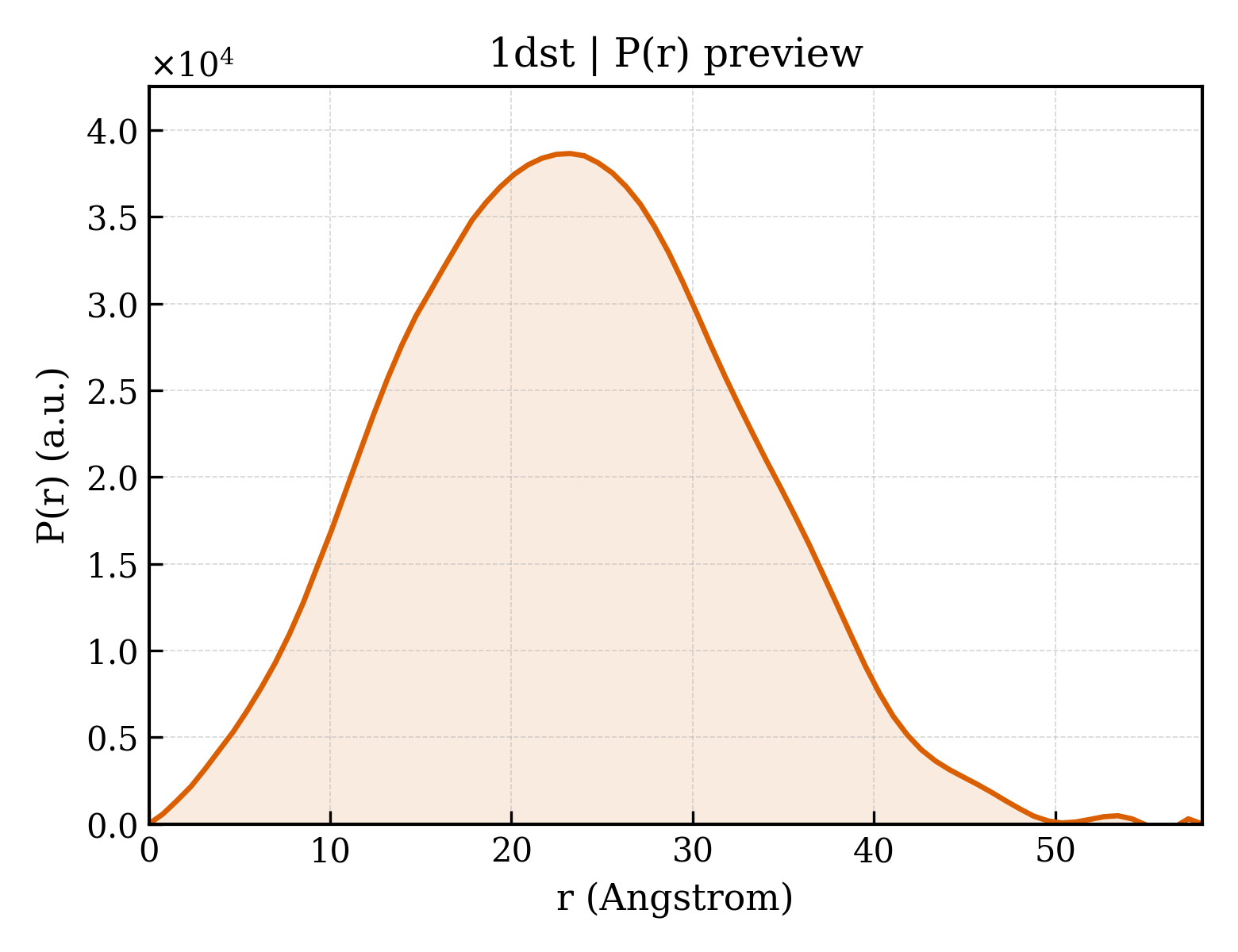

P(r) Distribution
1. Structure Basics
| entry_id | 1dst |
| deposition_date | 1995-09-13 |
| title | MUTANT OF FACTOR D WITH ENHANCED CATALYTIC ACTIVITY |
| keywords | COMPLEMENT ACTIVATING ENZYME, HYDROLASE, SERINE PROTEASE, FACTOR D, HYDROLASE (SERINE PROTEASE); HYDROLASE (SERINE PROTEASE) |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 17.75 Å |
| rg_electron | 16.52 Å |
| i0 | 11821200.00 |
| molecular_weight | 24565.0 kDa |
| excluded_volume | 30367 ų |
| envelope_volume | 35123 ų |
| shell_volume | 17453 ų |
| envelope_diameter | 56.8 Å |
| shell_rg | 22.93 Å |
| envelope_rg | 16.83 Å |
| shape_rg | 16.53 Å |
| total_rg | 17.51 Å |
| total_atoms | 1725 |
| n_residues | 228 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 58.1 Å |
| rg_real | 17.62 Å |
| rg_real_error | 0.34 Å |
| i0_real | 1.1820e+07 |
| i0_real_error | 1.3890e+05 |
| rg_reciprocal | 17.64 Å |
| i0_reciprocal | 11820000.0000 |
| total_estimate | 0.7992 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 23.2 Å |
| skewness | 0.137 |
| kurtosis | -0.393 |
| angular_range | — – 0.4500 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 3366000.0000 |
| n_real_points | 76 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.799; Stabil: 0.996; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.000 |
