SAXSdb — 1dt0

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

SUPEROXIDE DISMUTASE

Pseudomonas putida

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	FE (III) ION × 1 water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	FE (III) ION × 4 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SODF_PSEPU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–196； UniProt 1–196 Author chain B； PDBConstruct 1–196； UniProt 1–196 Author chain C； PDBConstruct 1–196； UniProt 1–196

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1dt0
Deposition date deposition_date	2000-01-10
Structure title title	CLONING, SEQUENCE, AND CRYSTALLOGRAPHIC STRUCTURE OF RECOMBINANT IRON SUPEROXIDE DISMUTASE FROM PSEUDOMONAS OVALIS
Keywords keywords	SUPEROXIDE DISMUTASE, PSEUDOMONAS OVALIS, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1dt0__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1dt0__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

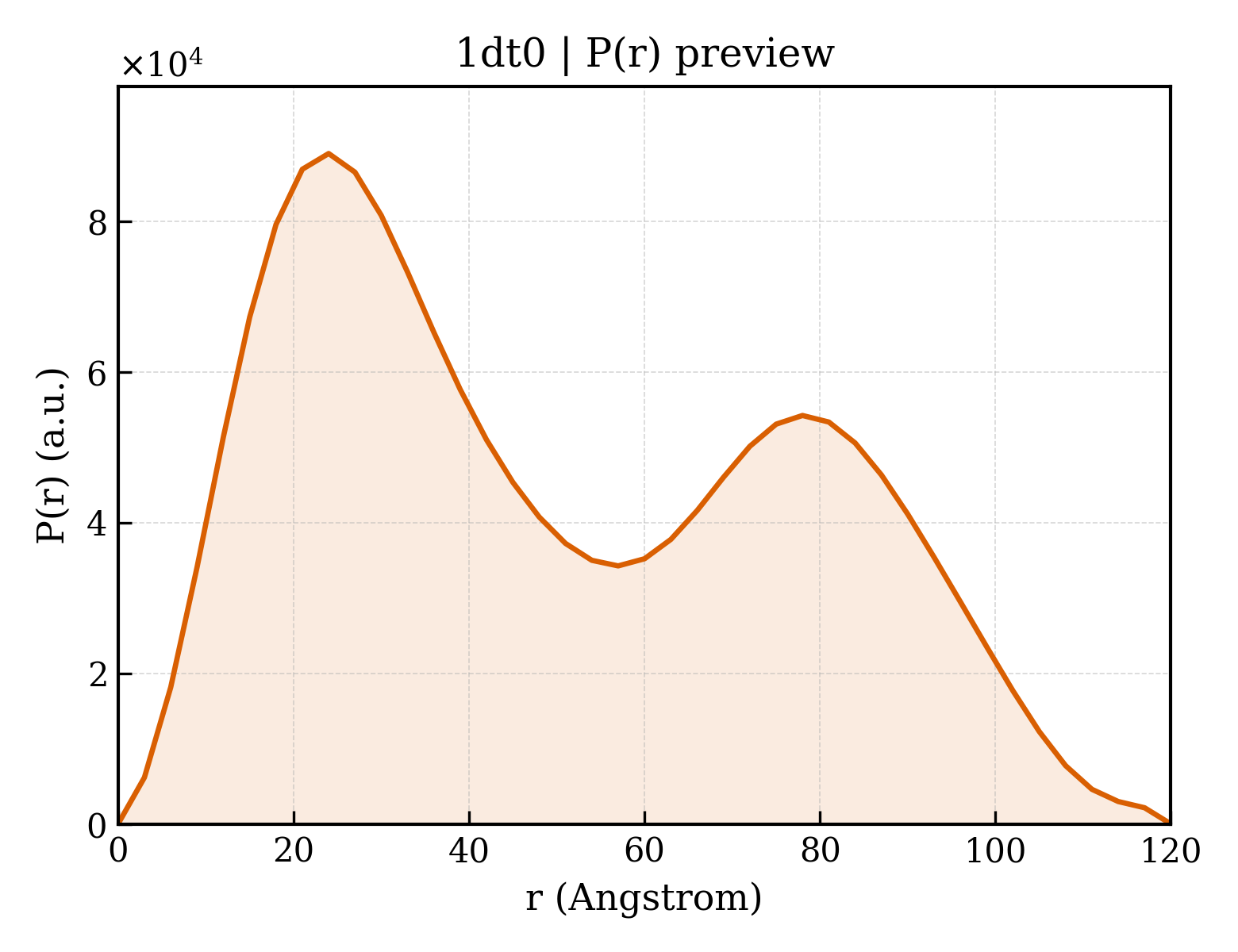

1dt0__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	22.98 Å
Rg (electron density)	22.12 Å
Total Rg	23.05 Å
Atom count	3111
Residues	394
Excluded volume	55067 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1dt0__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1dt0__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	SUPEROXIDE DISMUTASE
Molecular weight formula_weight	21911.5 kDa
EC 编号 ec_number	1.15.1.1
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	5217

AFELPPLPYAHDALQPHISKETLEFHHDKHHNTYVVNLNNLVPGTEFEGKTLEEIVKTSSGGIFNNAAQVWNHTFYWNCLSPNAGGQPTGALADAINAAFGSFDKFKEEFTKTSVGTFGSGWGWLVKKADGSLALASTIGAGCPLTIGDTPLLTCDVWEHAYYIDYRNLRPKYVEAFWNLVNWAFVAEQFEGKTYKV

Source Source

Source organism organism	Pseudomonas putida
NCBI taxonomy ID ncbi_taxonomy_id	303
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	FE (III) ION
Molecular weight formula_weight	55.8 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	566

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d1dt0a1
Class class	a — All alpha proteins
Fold Fold fold	a.2 — Long alpha-hairpin
Superfamily Superfamily superfamily	a.2.11 — Fe,Mn superoxide dismutase (SOD), N-terminal domain
Family Family family	a.2.11.1 — Fe,Mn superoxide dismutase (SOD), N-terminal domain

Domain ID domain_id	d1dt0a2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.44 — Fe,Mn superoxide dismutase (SOD), C-terminal domain
Superfamily Superfamily superfamily	d.44.1 — Fe,Mn superoxide dismutase (SOD), C-terminal domain
Family Family family	d.44.1.1 — Fe,Mn superoxide dismutase (SOD), C-terminal domain

Domain ID domain_id	d1dt0b1
Class class	a — All alpha proteins
Fold Fold fold	a.2 — Long alpha-hairpin
Superfamily Superfamily superfamily	a.2.11 — Fe,Mn superoxide dismutase (SOD), N-terminal domain
Family Family family	a.2.11.1 — Fe,Mn superoxide dismutase (SOD), N-terminal domain

Domain ID domain_id	d1dt0b2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.44 — Fe,Mn superoxide dismutase (SOD), C-terminal domain
Superfamily Superfamily superfamily	d.44.1 — Fe,Mn superoxide dismutase (SOD), C-terminal domain
Family Family family	d.44.1.1 — Fe,Mn superoxide dismutase (SOD), C-terminal domain

Domain ID domain_id	d1dt0c1
Class class	a — All alpha proteins
Fold Fold fold	a.2 — Long alpha-hairpin
Superfamily Superfamily superfamily	a.2.11 — Fe,Mn superoxide dismutase (SOD), N-terminal domain
Family Family family	a.2.11.1 — Fe,Mn superoxide dismutase (SOD), N-terminal domain

Domain ID domain_id	d1dt0c2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.44 — Fe,Mn superoxide dismutase (SOD), C-terminal domain
Superfamily Superfamily superfamily	d.44.1 — Fe,Mn superoxide dismutase (SOD), C-terminal domain
Family Family family	d.44.1.1 — Fe,Mn superoxide dismutase (SOD), C-terminal domain

▶

Unit-cell length a length_a	115.030 Å
Unit-cell length b length_b	115.030 Å
Unit-cell length c length_c	82.500 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	18

Space group space_group	P 32 2 1
Space-group number int_tables_number	154
Crystal system crystal_system	—

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	50.000 Å
R factor r_factor	0.2200
R_work r_work	0.2200
R_free r_free	0.2900

CLONING, SEQUENCE, AND CRYSTALLOGRAPHIC STRUCTURE OF RECOMBINANT IRON SUPEROXIDE DISMUTASE FROM PSEUDOMONAS OVALIS
