1dt1
THERMUS THERMOPHILUS CYTOCHROME C552 SYNTHESIZED BY ESCHERICHIA COLI
SAXS Profile

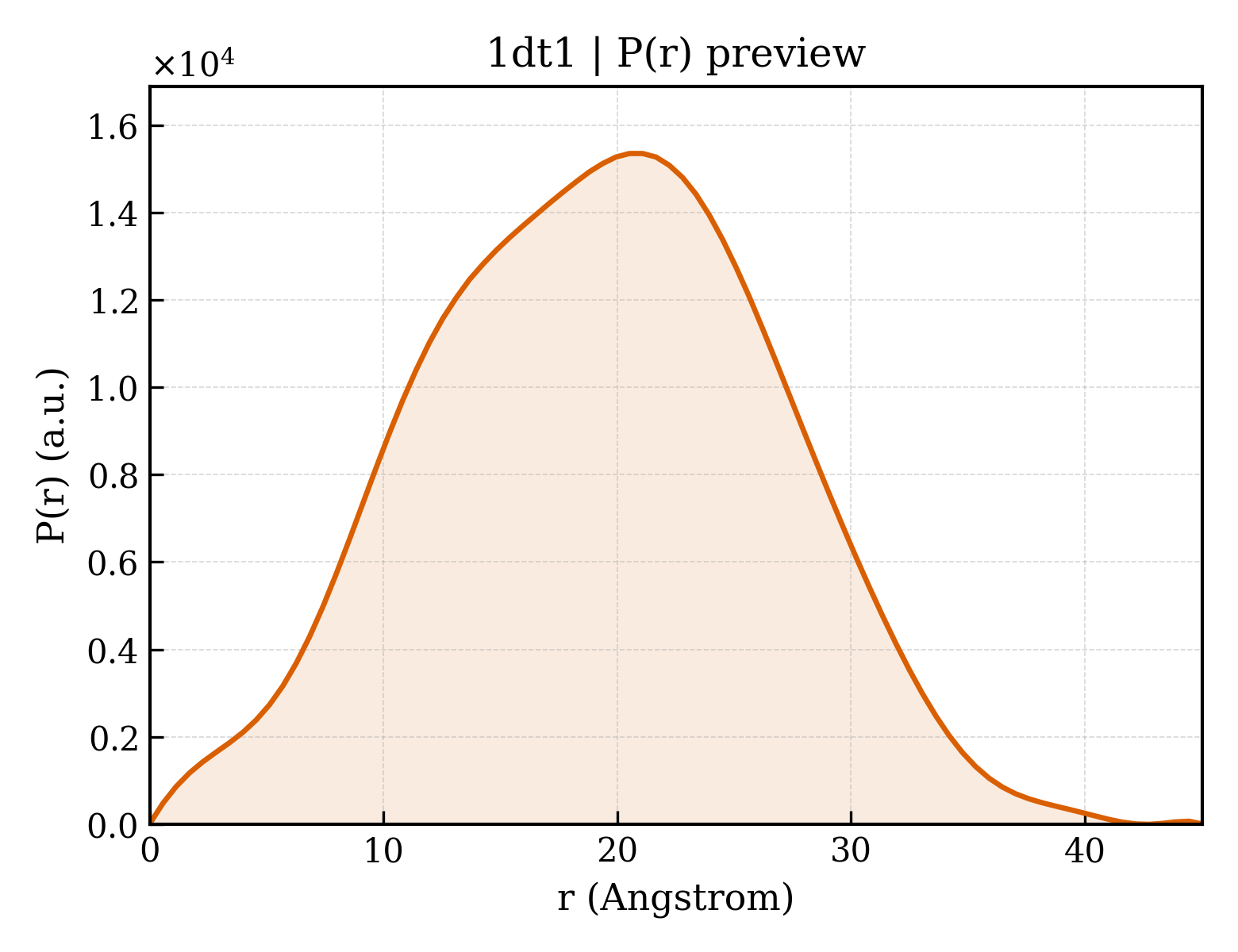

P(r) Distribution
1. Structure Basics
| entry_id | 1dt1 |
| deposition_date | 2000-01-10 |
| title | THERMUS THERMOPHILUS CYTOCHROME C552 SYNTHESIZED BY ESCHERICHIA COLI |
| keywords | Cytochrome C552, Thermus thermophilus, OXIDOREDUCTASE; OXIDOREDUCTASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 14.72 Å |
| rg_electron | 13.34 Å |
| i0 | 3839790.00 |
| molecular_weight | 14599.0 kDa |
| excluded_volume | 18627 ų |
| envelope_volume | 19816 ų |
| shell_volume | 12372 ų |
| envelope_diameter | 42.0 Å |
| shell_rg | 19.38 Å |
| envelope_rg | 13.65 Å |
| shape_rg | 13.30 Å |
| total_rg | 14.76 Å |
| total_atoms | 1027 |
| n_residues | 129 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 45.0 Å |
| rg_real | 14.59 Å |
| rg_real_error | 0.19 Å |
| i0_real | 3.8400e+06 |
| i0_real_error | 4.0300e+04 |
| rg_reciprocal | 14.60 Å |
| i0_reciprocal | 3840000.0000 |
| total_estimate | 0.8120 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 44.5 Å |
| skewness | 0.004 |
| kurtosis | -0.428 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1091000.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.858; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.977; Smooth: 0.000 |
