1dt2
CRYSTAL STRUCTURE OF EXFOLIATIVE TOXIN B
SAXS Profile

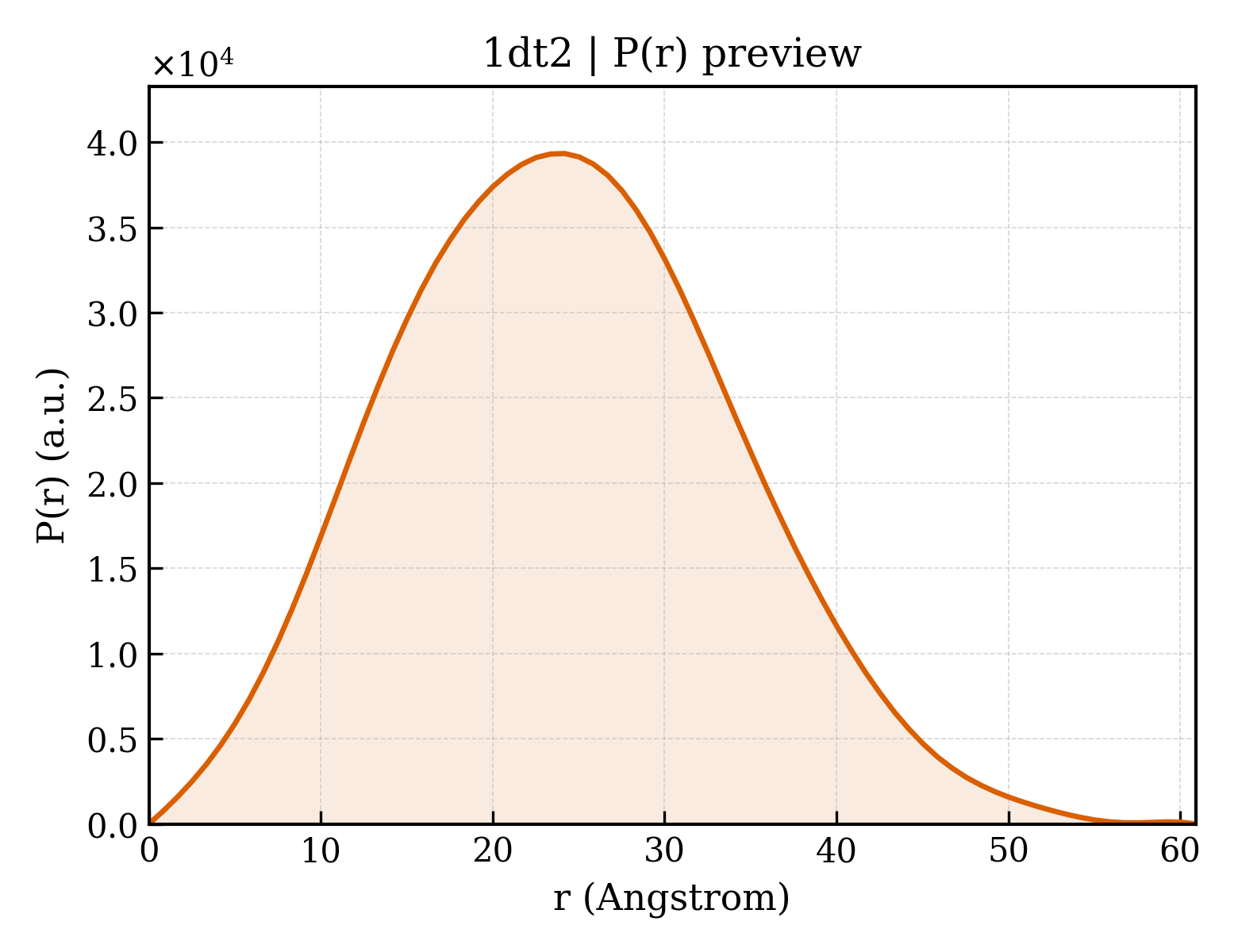

P(r) Distribution
1. Structure Basics
| entry_id | 1dt2 |
| deposition_date | 2000-01-11 |
| title | CRYSTAL STRUCTURE OF EXFOLIATIVE TOXIN B |
| keywords | toxin, epidermolysis, superantigen, serine protease, hydrolase; toxin, hydrolase |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 18.53 Å |
| rg_electron | 17.42 Å |
| i0 | 12721400.00 |
| molecular_weight | 26829.0 kDa |
| excluded_volume | 33645 ų |
| envelope_volume | 37636 ų |
| shell_volume | 17932 ų |
| envelope_diameter | 61.8 Å |
| shell_rg | 23.77 Å |
| envelope_rg | 17.87 Å |
| shape_rg | 17.40 Å |
| total_rg | 18.45 Å |
| total_atoms | 1899 |
| n_residues | 245 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 60.9 Å |
| rg_real | 18.44 Å |
| rg_real_error | 0.24 Å |
| i0_real | 1.2720e+07 |
| i0_real_error | 1.4290e+05 |
| rg_reciprocal | 18.45 Å |
| i0_reciprocal | 12720000.0000 |
| total_estimate | 0.8819 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 24.2 Å |
| skewness | 0.208 |
| kurtosis | -0.300 |
| angular_range | — – 0.4300 Å−1 |
| current_alpha | 0.0001 |
| highest_alpha | 3171000.0000 |
| n_real_points | 74 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.822; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.998 |
