1dtc
DELTA-TOXIN AND ANALOGUES AS PEPTIDE MODELS FOR PROTEIN ION CHANNELS

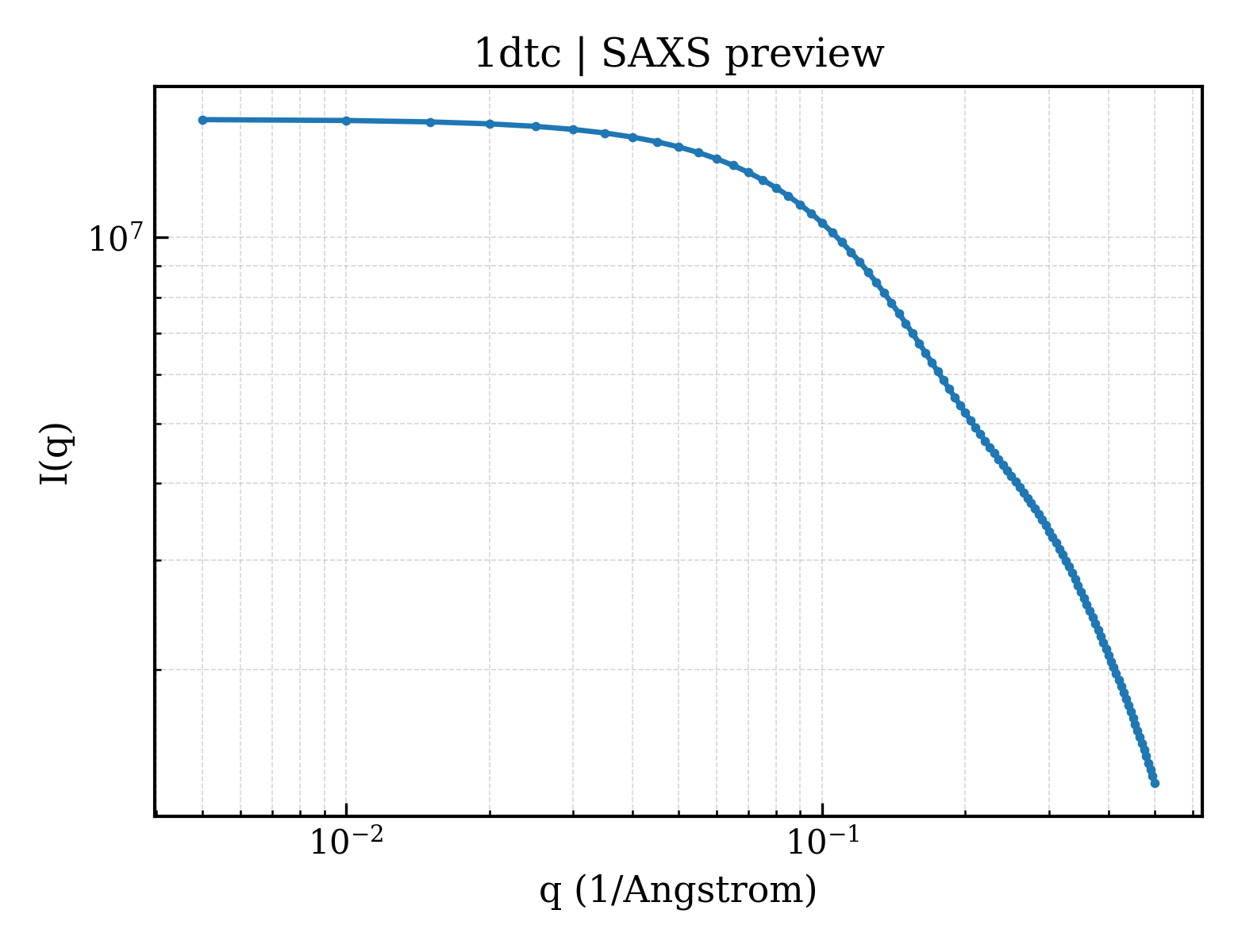

SAXS Profile

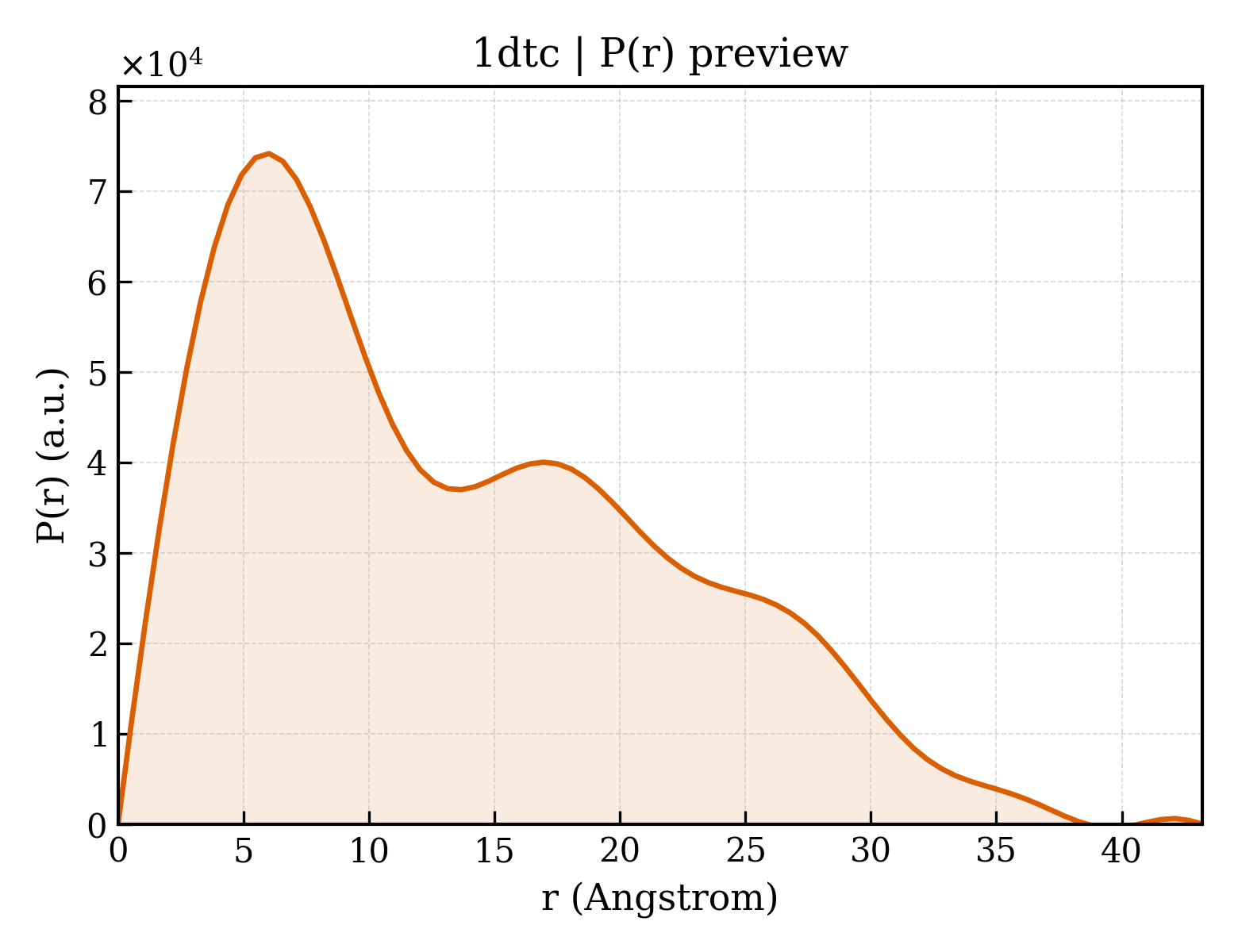

P(r) Distribution
1. Structure Basics
| entry_id | 1dtc |
| deposition_date | 1992-10-14 |
| title | DELTA-TOXIN AND ANALOGUES AS PEPTIDE MODELS FOR PROTEIN ION CHANNELS |
| keywords | TOXIN; TOXIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 10.85 Å |
| rg_electron | 11.24 Å |
| i0 | 15535600.00 |
| molecular_weight | 35755.0 kDa |
| excluded_volume | 46331 ų |
| envelope_volume | 8356 ų |
| shell_volume | 6399 ų |
| envelope_diameter | 44.7 Å |
| shell_rg | 16.75 Å |
| envelope_rg | 13.37 Å |
| shape_rg | 11.13 Å |
| total_rg | 12.04 Å |
| total_atoms | 5206 |
| n_residues | 312 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 43.2 Å |
| rg_real | 11.20 Å |
| rg_real_error | 0.58 Å |
| i0_real | 1.5540e+07 |
| i0_real_error | 1.8280e+05 |
| rg_reciprocal | 11.19 Å |
| i0_reciprocal | 15540000.0000 |
| total_estimate | 0.6121 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 3 |
| r_peak_primary | 6.0 Å |
| skewness | 0.576 |
| kurtosis | -0.617 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2317.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.027; Stabil: 0.994; Sysdev: 1.000; Positv: 1.000; Valcen: 0.001; Smooth: 0.890 |
