1dti
Recombinant sperm whale myoglobin h97d, d122n mutant (met)
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1dti |
| deposition_date | 2000-01-12 |
| title | Recombinant sperm whale myoglobin h97d, d122n mutant (met) |
| keywords | HEME, OXYGEN TRANSPORT, MUSCLE PROTEIN, OXYGEN STORAGE-TRANSPORT COMPLEX; OXYGEN STORAGE/TRANSPORT |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 16.62 Å |
| rg_electron | 15.21 Å |
| i0 | 5625460.00 |
| molecular_weight | 17927.0 kDa |
| excluded_volume | 22766 ų |
| envelope_volume | 25029 ų |
| shell_volume | 13999 ų |
| envelope_diameter | 49.6 Å |
| shell_rg | 21.03 Å |
| envelope_rg | 15.35 Å |
| shape_rg | 15.19 Å |
| total_rg | 16.38 Å |
| total_atoms | 1266 |
| n_residues | 154 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

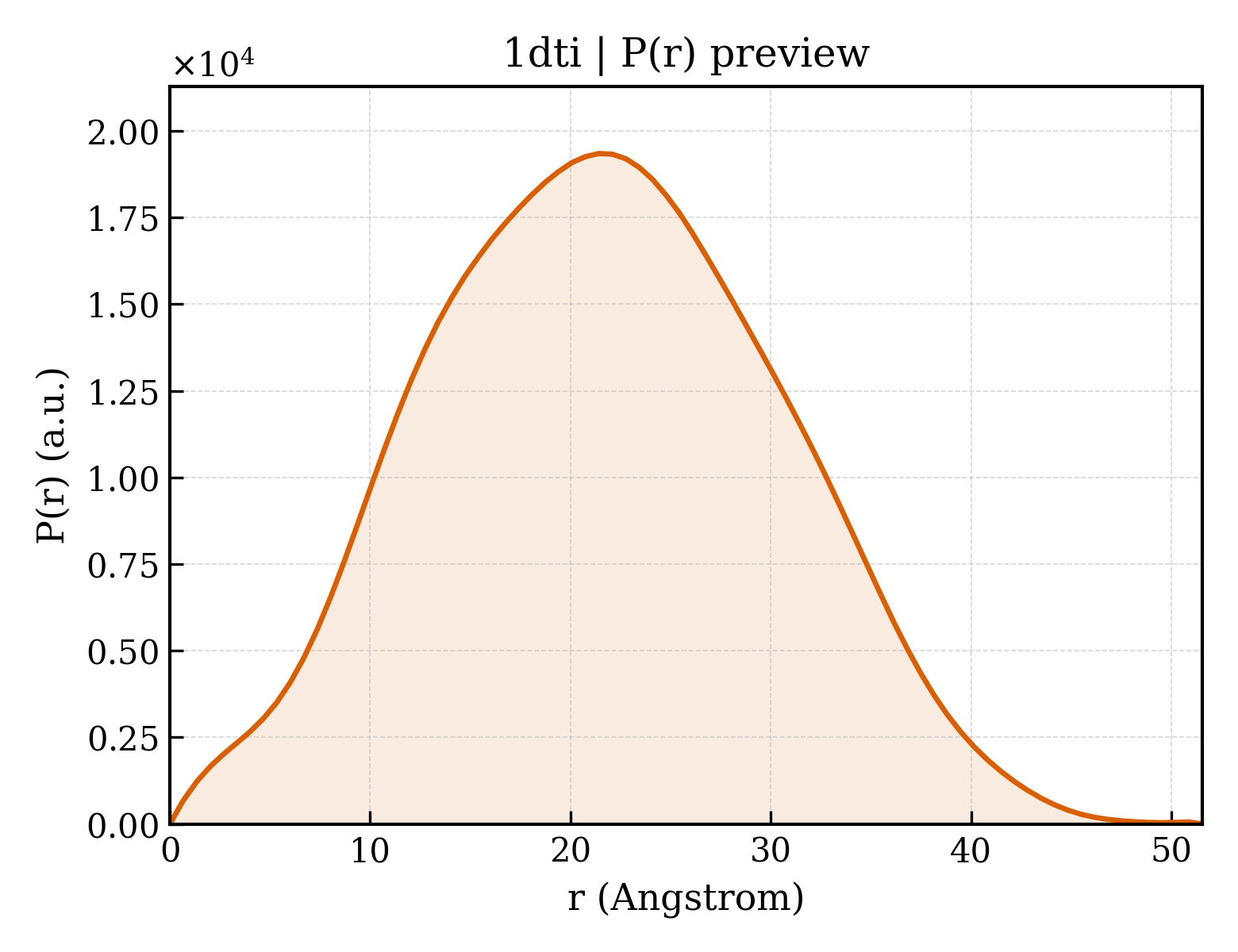

3. P(r) Analysis (GNOM)
| dmax | 51.5 Å |
| rg_real | 16.49 Å |
| rg_real_error | 0.26 Å |
| i0_real | 5.6250e+06 |
| i0_real_error | 5.9670e+04 |
| rg_reciprocal | 16.51 Å |
| i0_reciprocal | 5625000.0000 |
| total_estimate | 0.8993 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 21.4 Å |
| skewness | 0.090 |
| kurtosis | -0.453 |
| angular_range | — – 0.4800 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 861100.0000 |
| n_real_points | 78 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.902; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.988; Smooth: 0.995 |
